Description

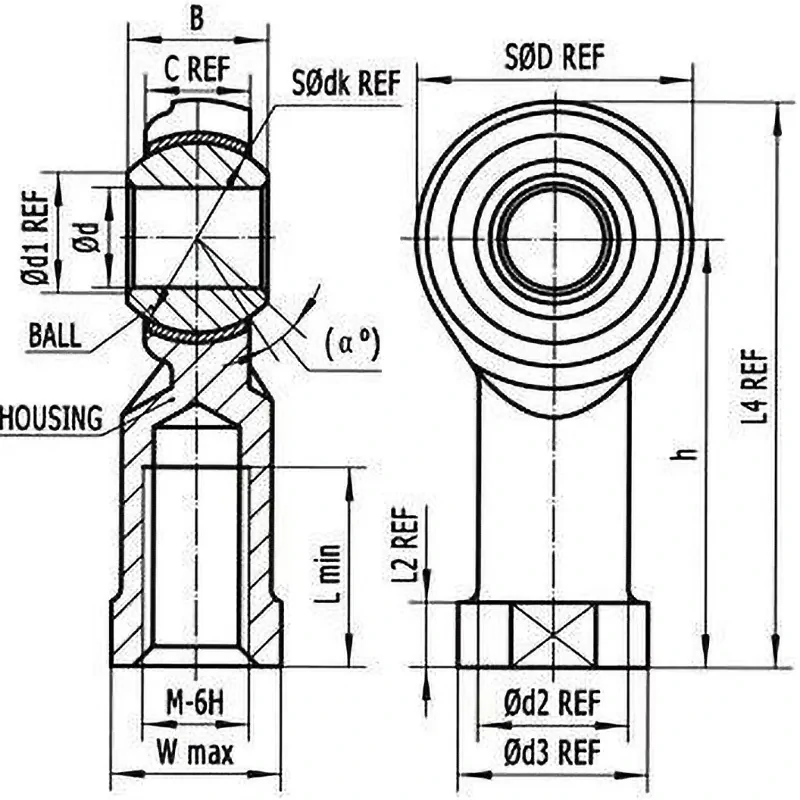

Dimension B (mm): 21
Dimension C (mm): 15
Minimum Length L (mm): 28
Dimension L2 (mm): 8
Dimension L4 (mm): 85
Dimension SD (mm): 42
Dimension W (mm): 22
Dimension d (mm): 16
Dimension d1 (mm): 19.4
Dimension d2 (mm): 22
Dimension d3 (mm): 28
Dimension dk (mm): 28.58
Dimension h (mm): 64
Mass (g): 219.6
Type: Right Thread Type
Dimension M (mm): M16*2
RoHS Directive (10 substances compliant): Compliant
Dimension alpha (degrees): 15

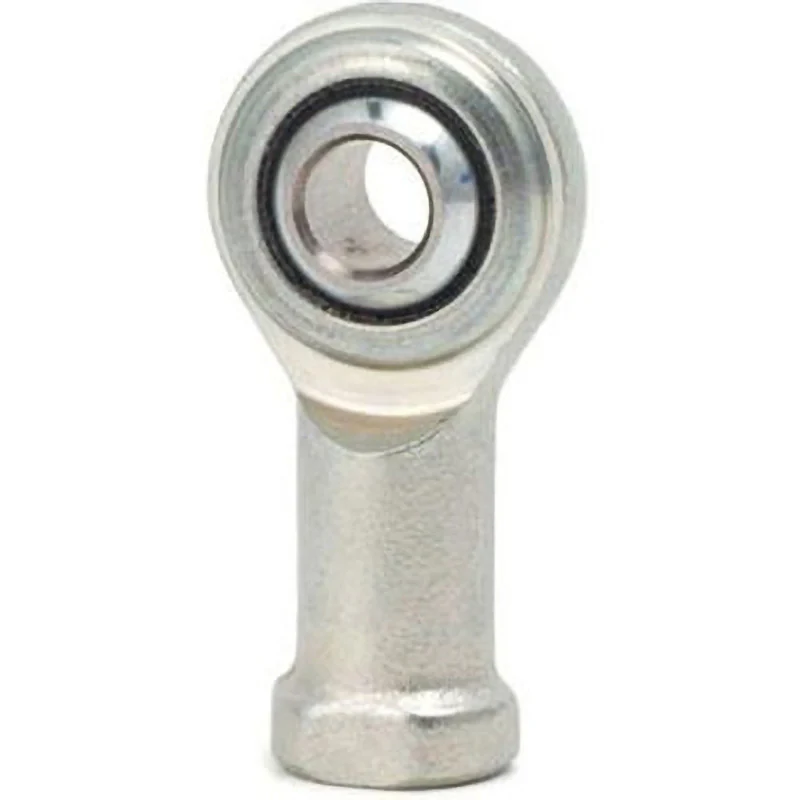

Spherical plain bearing using a spherical inner ring with accuracy and hardness equivalent to bearing steel balls｣ｬ used for mounting Rod End｣ｬs for oscillating motion.
