Description

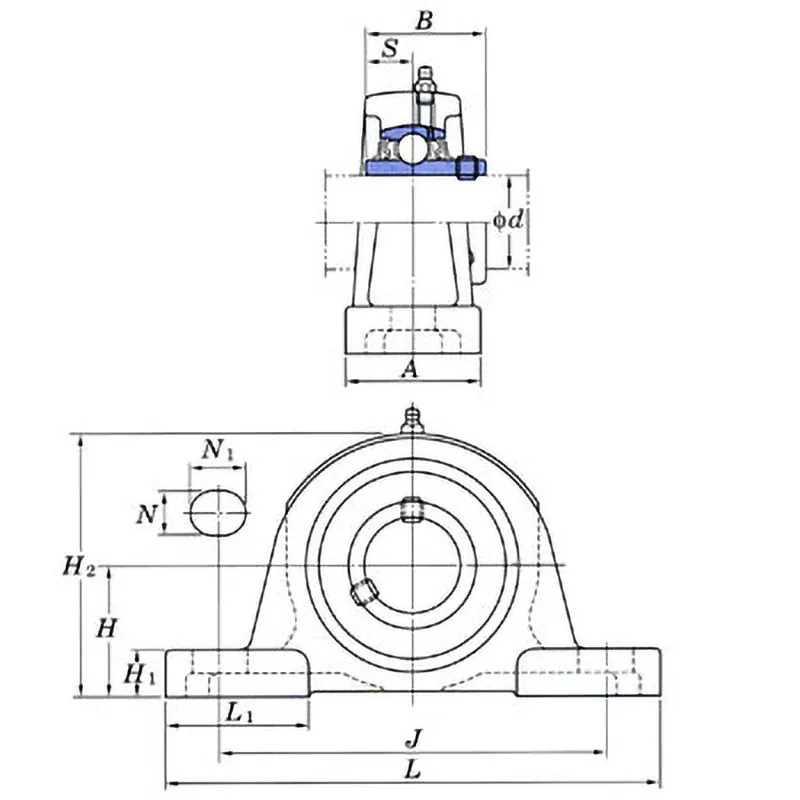

Dimension A (mm): 60
Dimension B (mm): 55.6
Dimension H (mm): 63.5
Dimension H1 (mm): 19
Dimension H2 (mm): 125
Dimension J (mm): 171
Dimension L (mm): 219
Dimension L1 (mm): 70
Dimension N (mm): 20
Dimension N1 (mm): 22
Dimension S (mm): 22.2
Dimension d (mm): 55
Shape: Pillow Block Unit
Application: Power Transmission Devices, General Machinery, etc.
Compatibility: P211
Grease Nipple: With Grease Nipple
Load Type: Light Load
Cover: No Cover
Shaft Hole Type: Cylindrical Hole (with set screw)
Basic Static Load Rating (kN): 29.4
Basic Dynamic Load Rating (kN): 43.4
Bearing Designation: UC211
Mounting Bolt Designation: M16
Coefficient: 14.4
RoHS Directive (10 substances compliance): Compliant

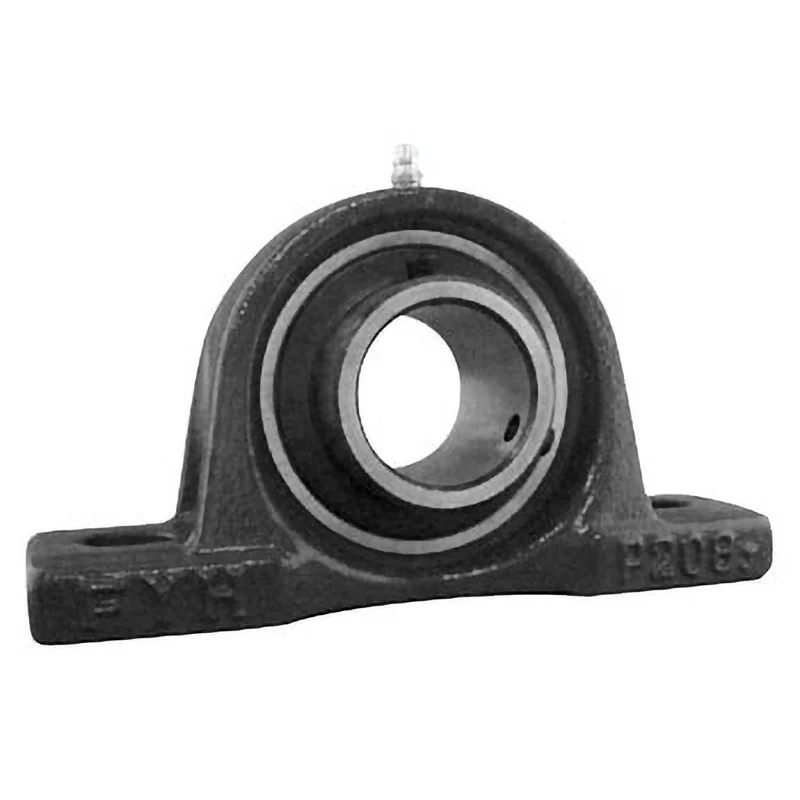

This is the most representative type of rolling bearing unit.
Since ribs are provided at the base of the bearing box mounting section, it has a high-strength structure against loads from all directions.
The mounting of the bearing box to the machine body is done with two bolts.
