Description
Contents: 1 piece

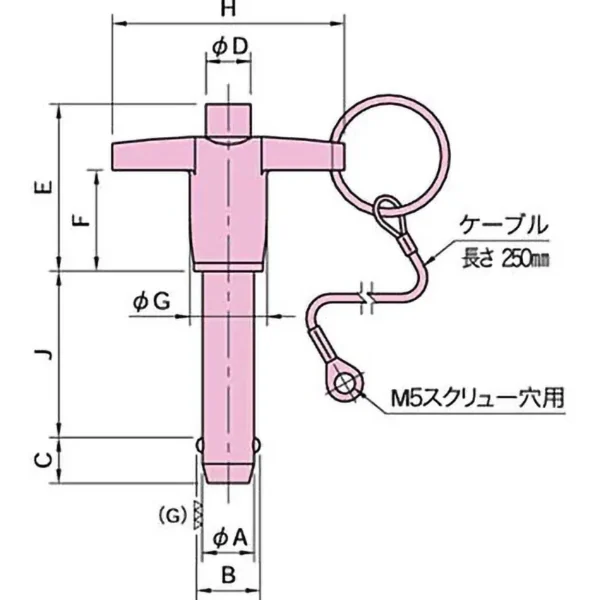

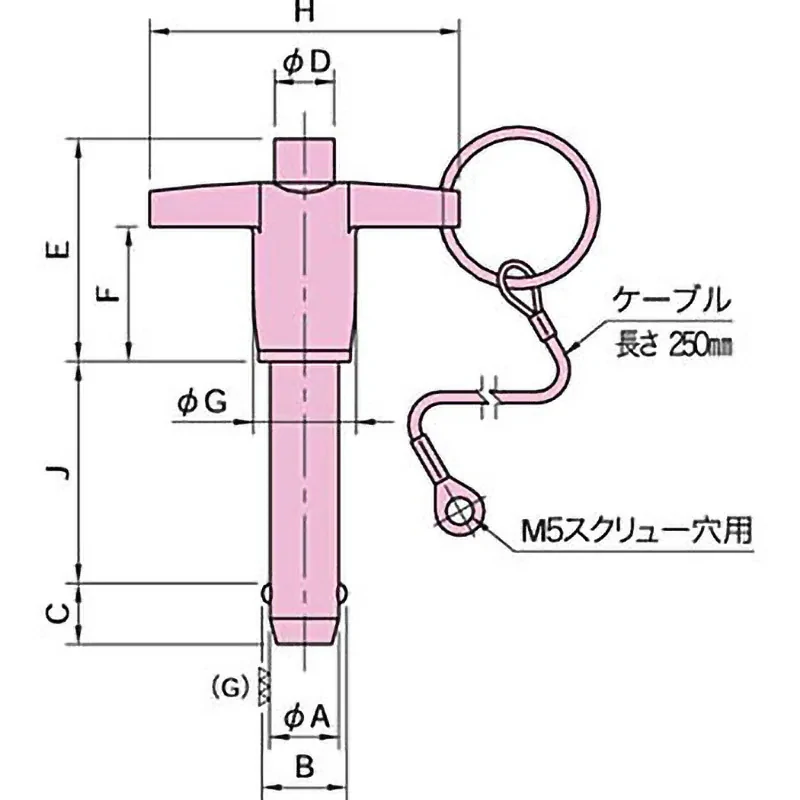

Dimension H(mm): 46
Part Number: BJ773-08025-SUS
Weight (g): 40
Dimension H(mm): 46
Dimension A(mm): 8(-0.02/-0.10)
Dimension F(mm): 21
Dimension D(mm): 6.5
Dimension E(mm): 32
Dimension B(mm): 9.4(plus or minus 0.3)
Dimension C(mm): 8(plus or minus 1)
Material: (Ball) SUS440C
Dimension J(mm): 25(+0.50)
Dimension G(mm): 11
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passive) Coating, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Two-Shear Force (kN): 65
Recommended Hole Inner Diameter (mm): 8(-0.02/-0.10)

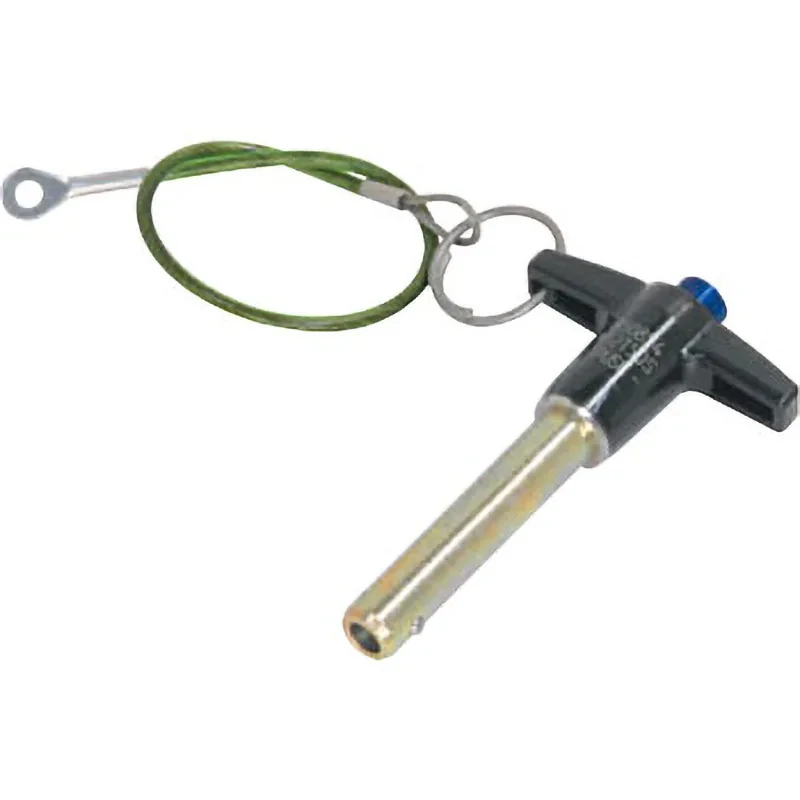

This product allows for speedy one-touch operation to completely fix and separate workpieces and parts that require frequent assembly and disassembly.
