Description
Content: 1 piece
Mounting Hole Diameter (mm): M6
Mounting Length (mm): 40
Part Number: CLMB6-40-O

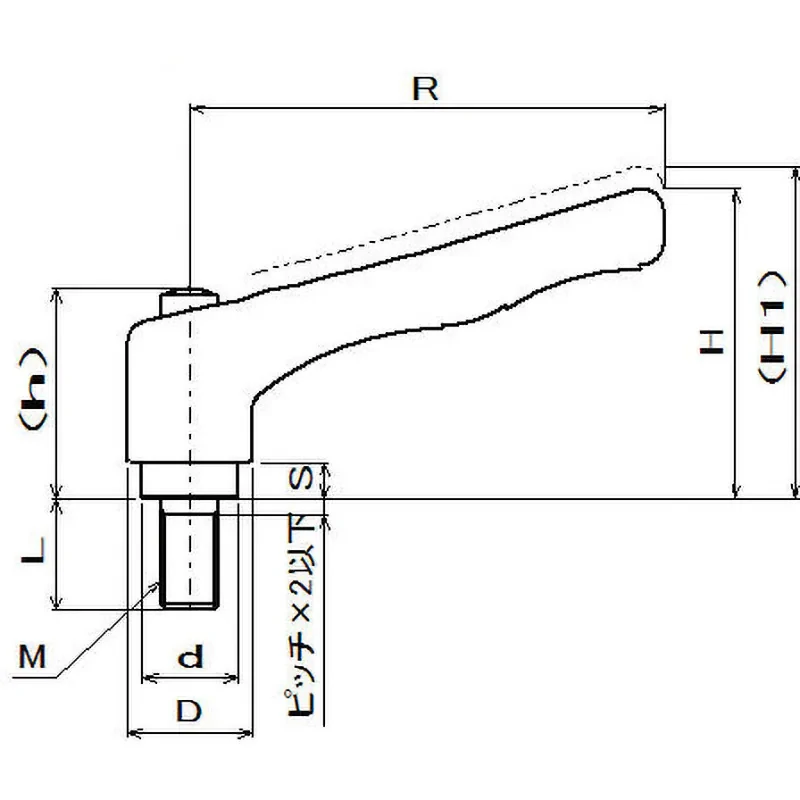

Dimension D (mm): 13
Dimension H (mm): 35.7
Dimension H1 (mm): 39
Dimension L (mm): 40
Dimension M (mm): M6
Dimension R (mm): 48.5
Dimension S (mm): 4
Dimension d (mm): 10
Dimension h (mm): 25.8

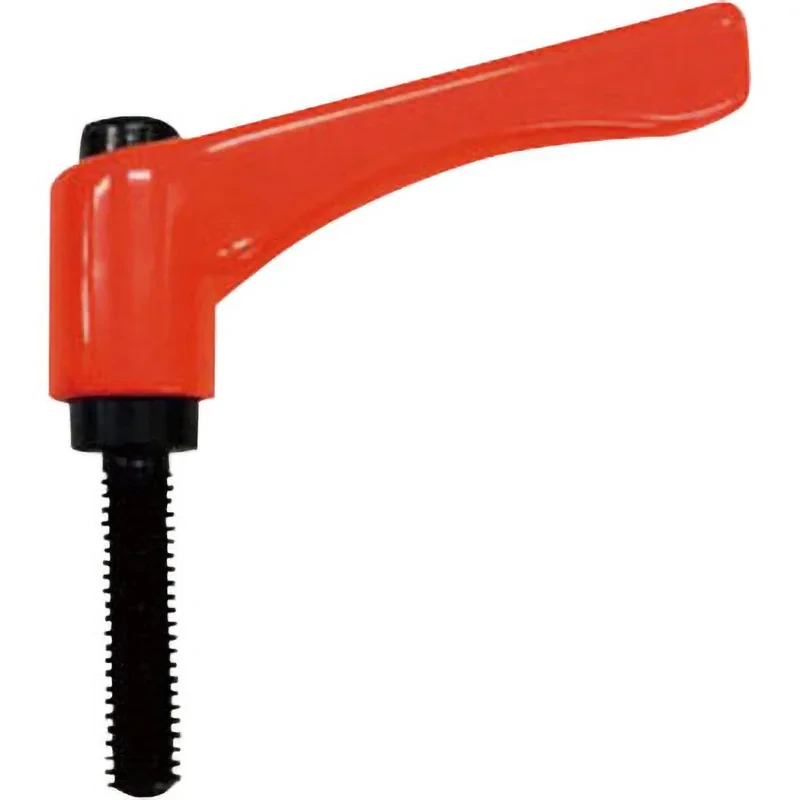

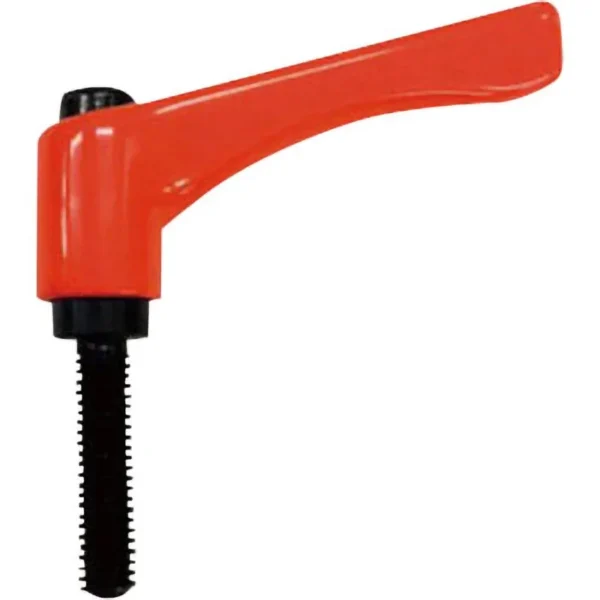

Type: Clamp Lever
Shape: L-shaped
Mounting Part: Male Thread
Mounting Hole Diameter (mm): M6
Mounting Length (mm): 40
Turning Radius (mm): 48.5
Material (Main Body): Zinc Die Casting
Material (Screw Part): S45C
Material (Spring Part): SUS304-WPB
Surface Treatment (Screw Part): Tetrapolymer Iron Oxide Coating
Surface Treatment (Lever Part): Baked Coating
Maximum Load (N): 184
Maximum Tightening Force (kN): 6.8
Lever Color: Orange
