Description
Content: 1 piece

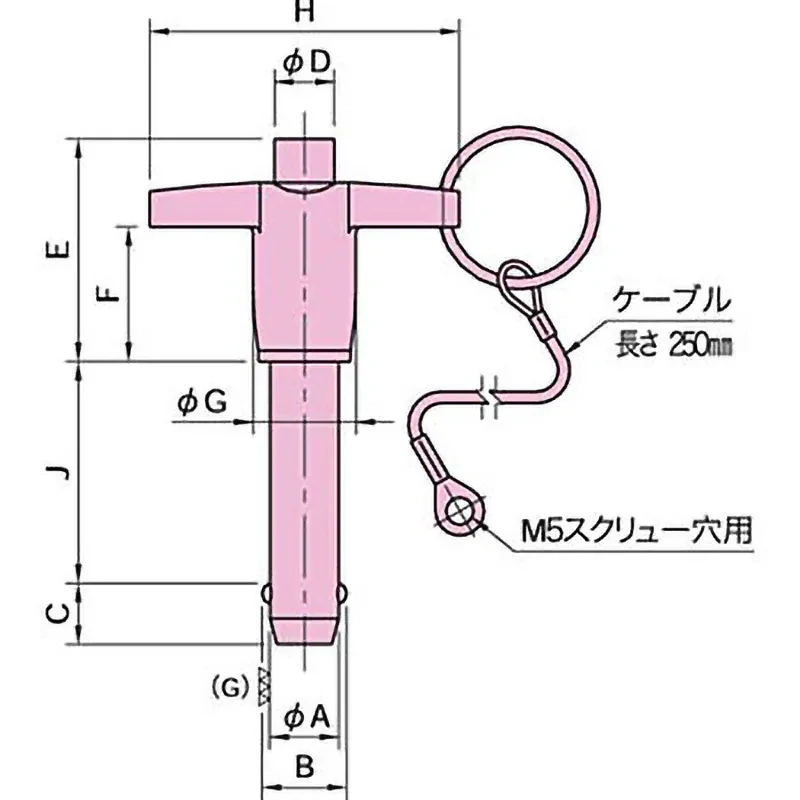

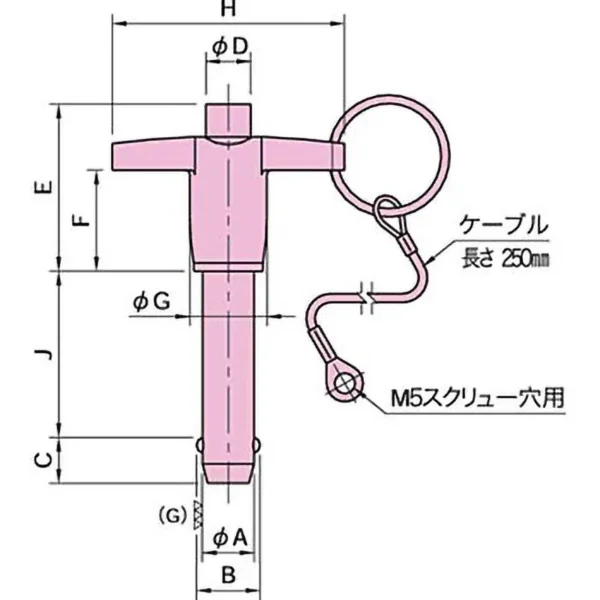

Dimensions H(mm): 46
Part Number: BJ773-06050-SUS
Weight(g): 40
Dimensions H(mm): 46
Dimensions A(mm): 6(-0.02/-0.10)
Dimensions F(mm): 21
Dimensions D(mm): 6.5
Dimensions E(mm): 32
Dimensions B(mm): 7(plus or minus 0.3)
Dimensions C(mm): 7(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 50(+0.50)
Dimensions G(mm): 11
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passivation) Coating, Polished Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Shear Force (kN): 35
Recommended Hole Inner Diameter (mm): 6(-0.02/-0.10)
Enables quick and complete fixation and separation of workpieces and parts with a one-touch operation, even with frequent repetitions.
