Description
Description: Quantity: 1 piece
Operation Method: Non-reversible
Case Cover: Without Case Cover
Coil Rated Voltage (V): AC220
Part Number: SC-03 Coil AC220V 1A
Rated Continuous Current (A): 20
Rated Operating Voltage (V): AC200
Auxiliary Contact: 1a
Frame: Type 03
Coil Rated Voltage (V): AC220
Release Voltage (V): 50Hz: 70闂?8, 60Hz: 80闂?10
Standards International Standards: IEC, EN, VDE, BS, UL, CSA Certified

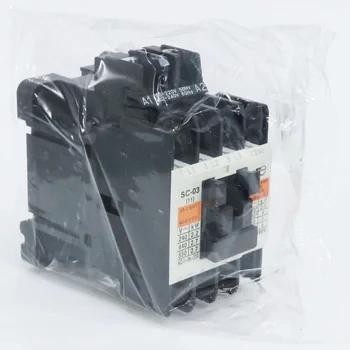

Type: SC-03
Compatible Thermal Relay: TR-0N
Compatible Rail Width (mm): 35
Electrical Durability: 2 million times (AC-3), 30 thousand times (AC-4), 500 thousand times (AC-1)
Mechanical Durability: 10 million times
Electromagnetic Capacity (VA) / When Engaged 200V 50Hz: 90 / 200-220V 60Hz: 95
Electromagnetic Capacity (VA) / When Held 200V 50Hz: 9, 200-220V 60Hz: 9
Operation Time (ms): (Coil ON 闂?Main Contact ON) 9闂?0, (Coil OFF 闂?Main Contact OFF): 5闂?6
Closed Circuit Voltage (V): 50Hz: 53闂?3, 60Hz: 58闂?8
Accessories: Includes 2 Heat Element Thermal Relay
Length (mm): 81
Width (mm): 80
Thickness (mm): 43
Weight (kg): 0.32
Type: Electromagnetic Contactor
Protection Structure: Without Case Cover
Contact Configuration: [Auxiliary] Double Contact
Rated Insulation Voltage (V): 690
Operation Method: Non-reversible
Rated Frequency (Hz): 50/60
Reset Method: Manual
Mounting Screw: 2-M4
Rated Impulse Withstand Voltage (kV): 6
Loss (W): 200V 50Hz: 2.7, 200-220V: 2.8
Coil Voltage (V): AC220
Switching Frequency (times/hour): 1800 (AC-3), 600 (AC-4)
Case Cover: Without Case Cover
Rated Capacity (kW) for Three-Phase Squirrel Cage Motor (AC-3): (200-240V) 2.2, (380-440V) 2.7
Rated Capacity (kW) for Single-Phase Motor (AC-3): 0.4 (100-120)
Rated Capacity (kW) for Inch Plugging (AC-4): (200-240): 1.5, (380-440): 2.2
Rated Operating Current (A) for Three-Phase Squirrel Cage Motor (AC-3): (200-240V) 11, (380-440V) 7
Rated Operating Current (A) for Single-Phase Motor (AC-3): (100V) 11, (220V) 11
Rated Operating Current (A) for Inch Plugging (AC-4): (200-240V): 8, (380-440V) 6
Rated Operating Current (A) for Resistive Load (AC-1): (200-240V) 20, (380-440V) 20
Operation Method: AC Operated Type
Terminal Cover: None
Breaking Current (A): Three-Phase Squirrel Cage Motor (AC-3): 110 (220V), 90 (440V)
Closed Circuit Current (A): Three-Phase Squirrel Cage Motor (AC-3): 132 (220V), 108 (440V)
Global standard product conforming to international standards (IEC standards).
Auxiliary contacts are equipped with standard high-contact reliability double contacts.
