Description

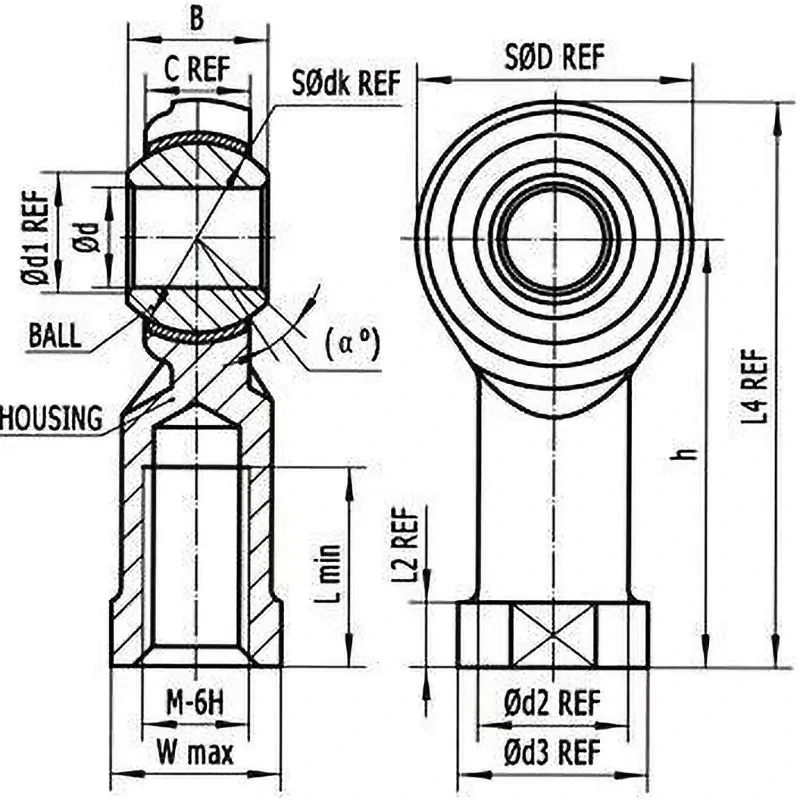

Dimensions B (mm): 9
Dimensions C (mm): 6.75
Dimensions L (Min) (mm): 12
Dimensions L2 (mm): 5
Dimensions L4 (mm): 40
Dimensions SD (mm): 20
Dimensions W (mm): 11
Dimensions d (mm): 6
Dimensions d1 (mm): 9
Dimensions d2 (mm): 10
Dimensions d3 (mm): 13
Dimensions dk (mm): 12.7
Dimensions h (mm): 30
Weight (g): 24.6
Type: Right Thread Type
Dimensions M (mm): M6*1
RoHS Directive (10 Substances Compliance): Compliant
Dimensions alpha (degrees): 13

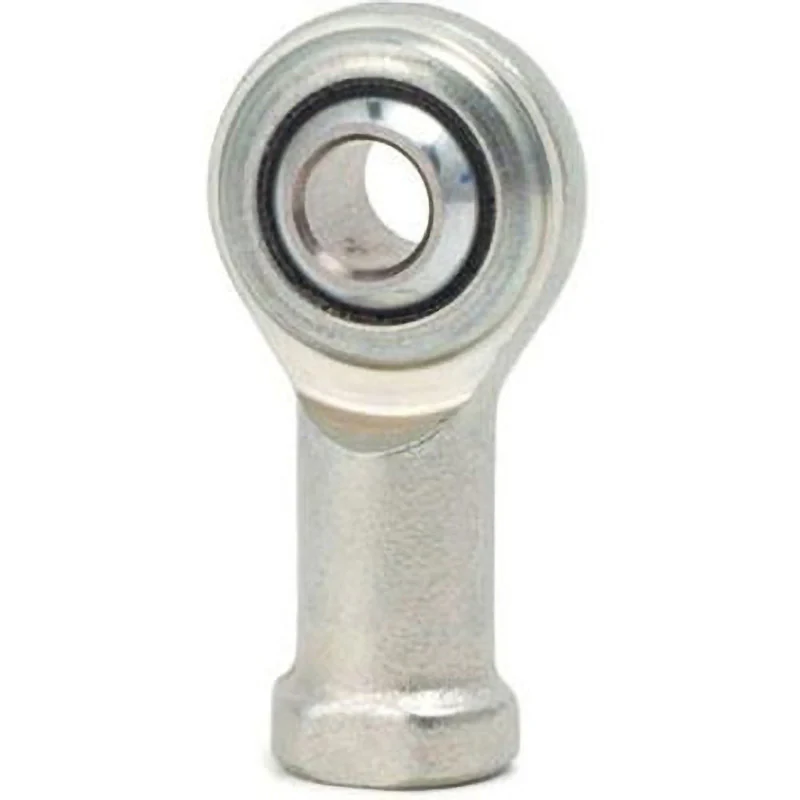

This spherical sliding bearing uses a spherical inner ring with precision and hardness equivalent to that of bearing steel balls｣ｬ and is used for mounting Rod End｣ｬs in oscillating motion.
