Description
Contents: 1 piece

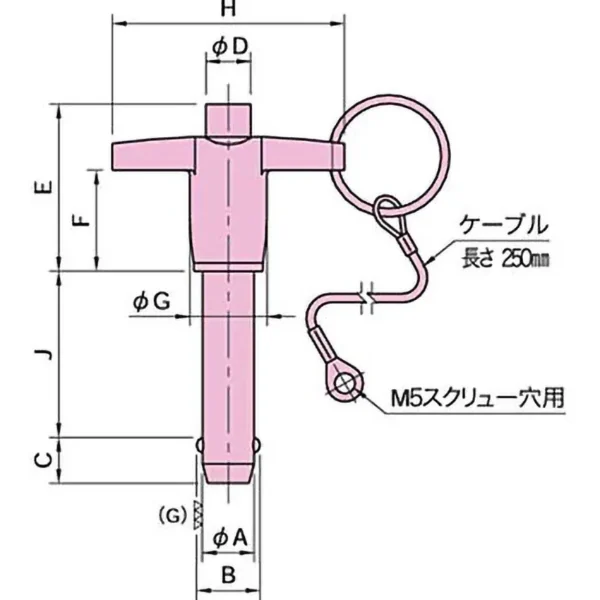

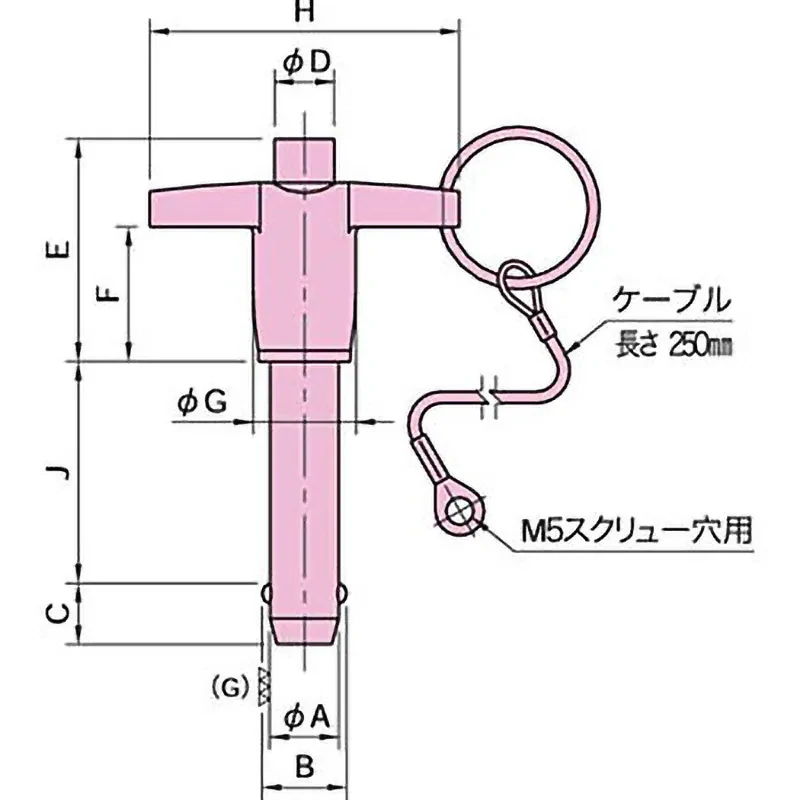

Dimensions H(mm): 46
Part number: BJ773-06030-SUS
Weight(g): 35
Dimensions H(mm): 46
Dimensions A(mm): 6(-0.02/-0.10)
Dimensions F(mm): 21
Dimensions D(mm): 6.5
Dimensions E(mm): 32
Dimensions B(mm): 7(plus or minus 0.3)
Dimensions C(mm): 7(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 30(+0.50)
Dimensions G(mm): 11
Handle color: Black
Material: (Handle) Aluminum alloy (ADC10)
Material: (Shank) SUS630
Surface treatment: (Shank) Oxidation (passivation) coating, polishing finish
Surface treatment: (Handle) Anodized surface treatment
Minimum two-shear strength (kN): 35
Recommended hole inner diameter (mm): 6(-0.02/-0.10)

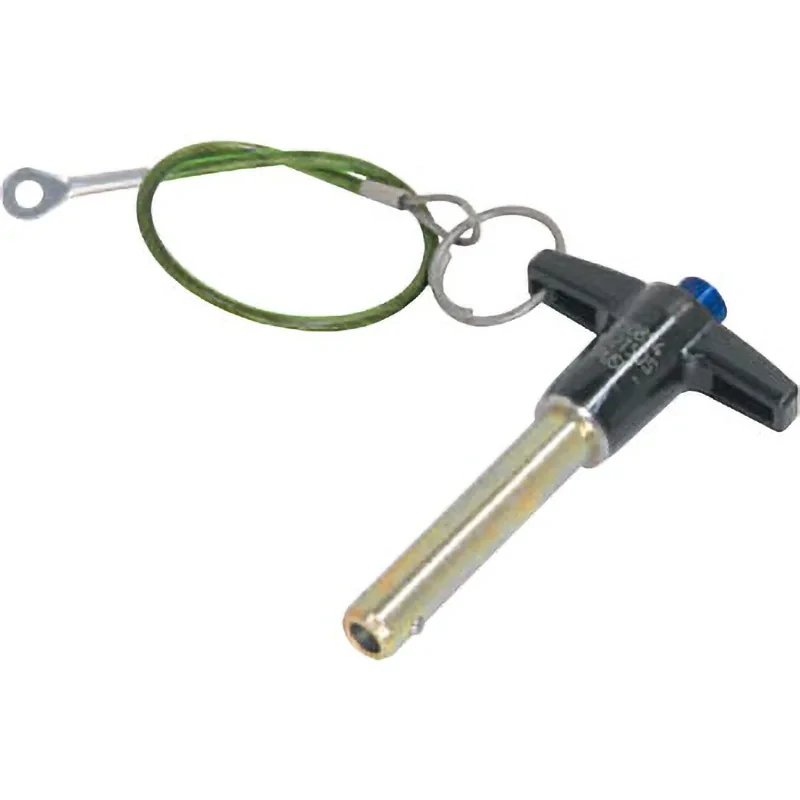

Enables quick one-touch operation to completely secure and separate frequently repeated connections between workpieces and parts.
