Description
Description
Quantity: 1 piece
Model Number: ADRVMICR2
Supported OS: Windows 7 or later
Accessories: Warranty card
Warranty Period: 1 year
Dimensions (mm): W16 * D20 * H5
Weight (g): Approx. 1
Number of Inputs: 12 (Digital)
Connector: USB Micro B
Power Supply: 5V (USB Micro B)
Operating Temperature: 0 to 40 degrees Celsius (no condensation)

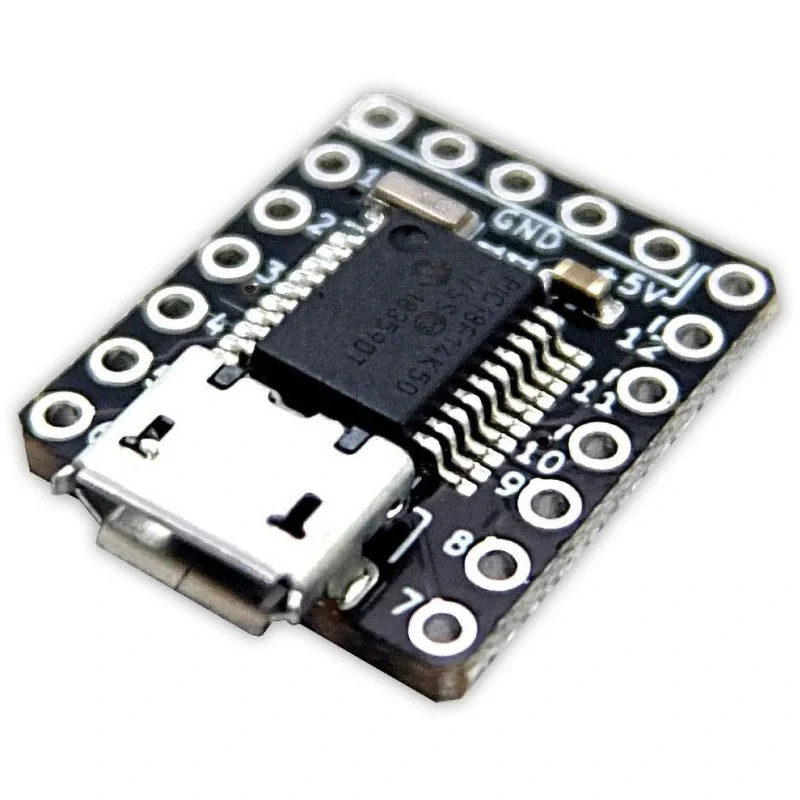

This module allows easy creation of original USB devices. By simply connecting switches to the pins, all the input processing and settings for the USB interface, which are usually difficult for users, are handled by this module.
The new firmware supports debounce function and rotary encoder connection!
We have added the highly requested debounce function and support for rotary encoder connections.
It is now possible to create devices requiring more precise operations or rotational movements.
Note: Customers with the previous REVIVE USB MICRO (Model Number: ADRVMIC) can use the new features by updating the firmware.
Warning: If firmware for the conventional REVIVE USB (AD00007) is written, firmware rewriting will no longer be possible due to different bootloader specifications.

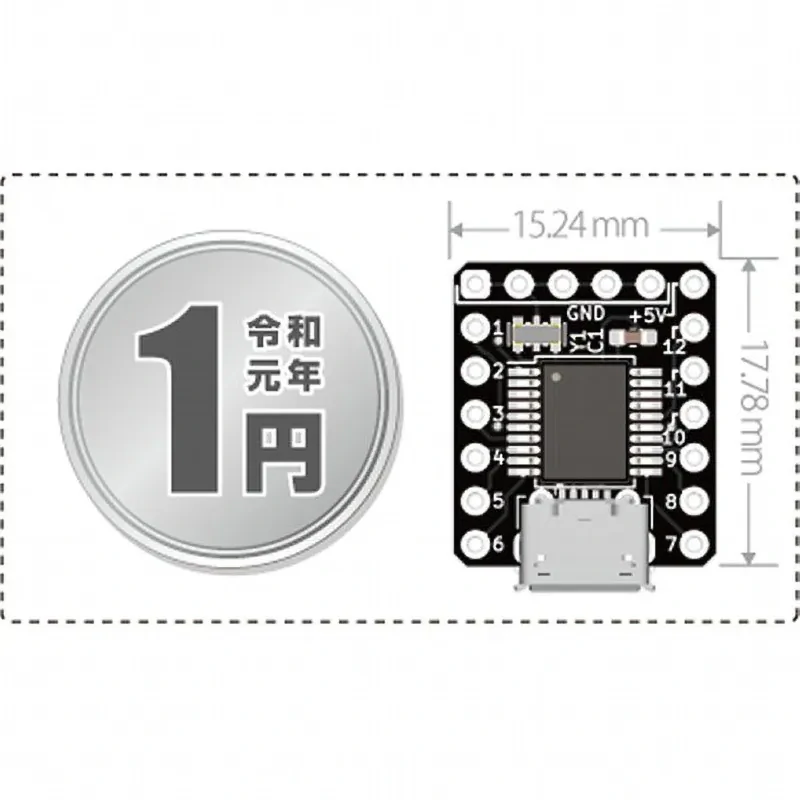

Achieved miniaturization to the size of a 1-yen coin!
With a width of approx. 20 mm and weight of approx. 1 g, it has been miniaturized to almost the same size as a 1-yen coin. It is compatible with a variety of devices!
Connects to a computer via USB, and allows assignment of any operation (mouse click/key input, etc.) to 12 pins using dedicated software. Once set, the operation is saved in the module闂傚倸鍊烽懗鍫曞磻閵娾晛纾块柡灞诲劜閸?memory and can be used on other computers without changing the settings.

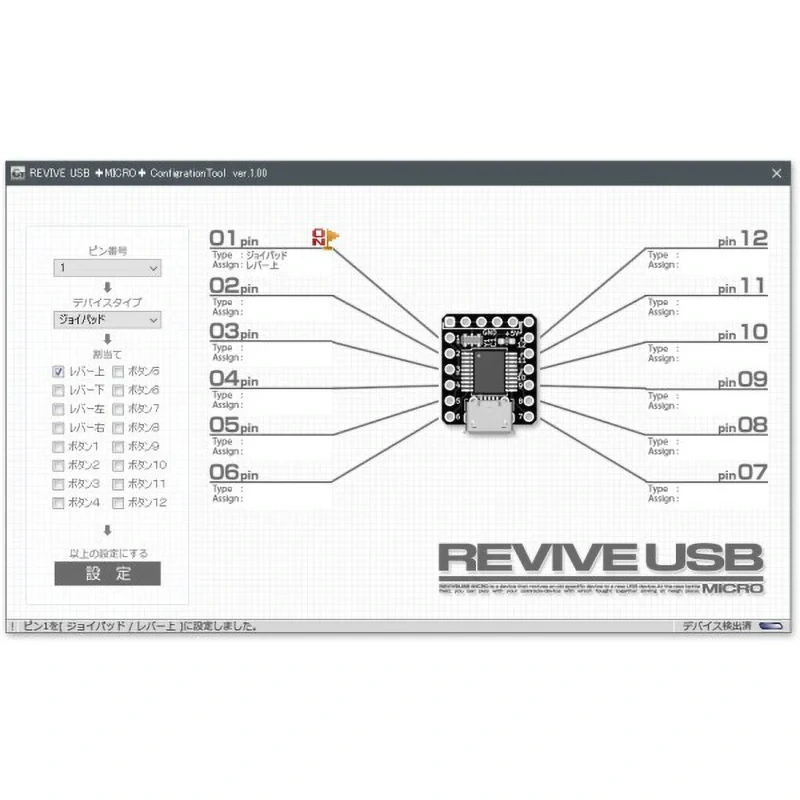

Easy assignment tool enables allocation of mouse/keyboard/joypad functions
Settings for each operation are made using dedicated Windows software with an intuitive interface, allowing anyone to easily configure it.
Mouse, keyboard, and joypad functions can be mixed and assigned.
Features:
Mouse Functions: Left click / Right click / Wheel click / Mouse movement up, down, left, right / Wheel scroll up and down
Keyboard Functions: Assignable to any key
Joypad Functions: X-axis / Y-axis (up, down, left, right) / Buttons 1 to 12
Matrix-compatible firmware available, supports up to 36 buttons!
By switching to matrix-compatible firmware, up to 36 inputs are supported (firmware rewriting required).
Note: When using matrix firmware, debounce function and rotary encoder use are not available.
