Description
Contents: 1 piece

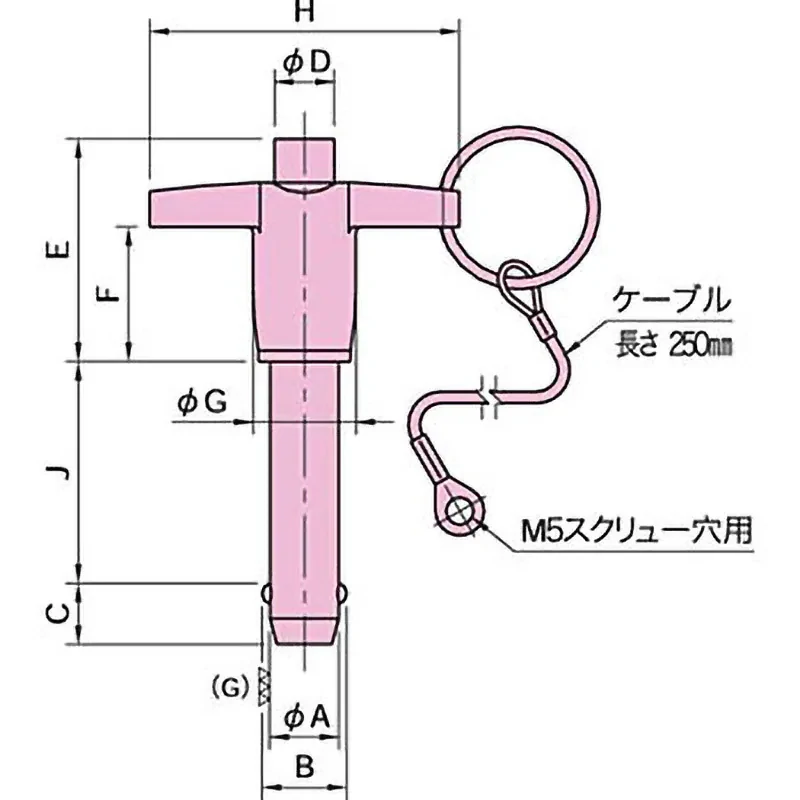

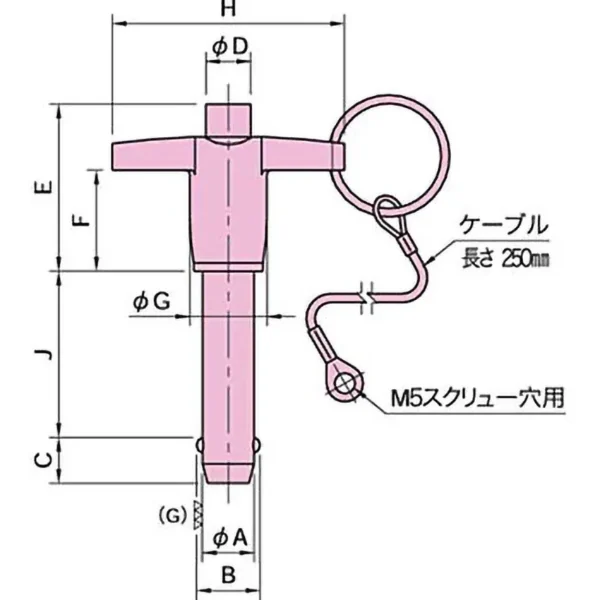

Dimension H(mm): 46
Part number: BJ773-06015-SUS
Weight (g): 32
Dimension H(mm): 46
Dimension A(mm): 6(-0.02/-0.10)
Dimension F(mm): 21
Dimension D(mm): 6.5
Dimension E(mm): 32
Dimension B(mm): 7(plus or minus 0.3)
Dimension C(mm): 7(plus or minus 1)
Material: (Ball) SUS440C
Dimension J(mm): 15(+0.50)
Dimension G(mm): 11
Handle color: Black
Material: (Handle) Aluminum alloy (ADC10)
Material: (Shank) SUS630
Surface treatment: (Shank) Oxidation (passivation) coating, Polished finish
Surface treatment: (Handle) Anodized surface treatment
Minimum two-way shear force (kN): 35
Recommended hole inner diameter (mm): 6(-0.02/-0.10)
Enables rapid one-touch operation for complete fixation and separation of workpieces and parts, even when frequently repeated.
