Description
Contents: 1 piece

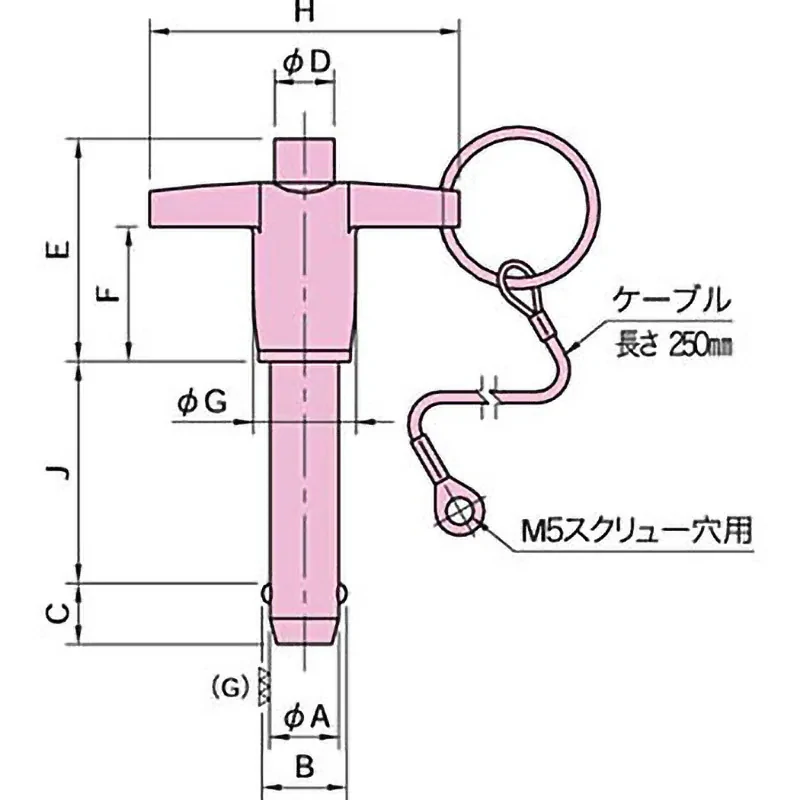

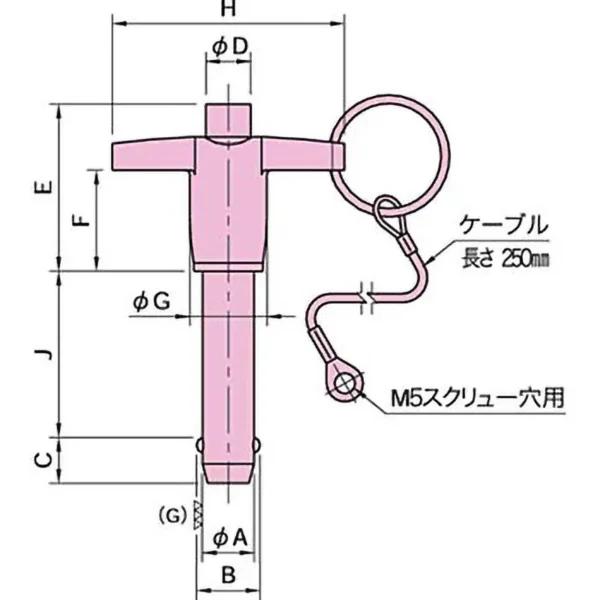

Dimensions H (mm): 46
Part number: BJ773-05030-SUS
Weight (g): 34
Dimensions H (mm): 46
Dimensions A (mm): 5 (-0.02/-0.10)
Dimensions F (mm): 21
Dimensions D (mm): 6.5
Dimensions E (mm): 32
Dimensions B (mm): 5.5 (plus or minus 0.3)
Dimensions C (mm): 6 (plus or minus 1)
Material: (Ball) SUS440C
Dimensions J (mm): 30 (+0.50)
Dimensions G (mm): 11
Handle color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (passivation) film, Polished finish
Surface Treatment: (Handle) Anodized surface treatment
Minimum Two-Face Shear Force (kN): 24
Recommended Hole Inner Diameter (mm): 5 (-0.02/-0.10)

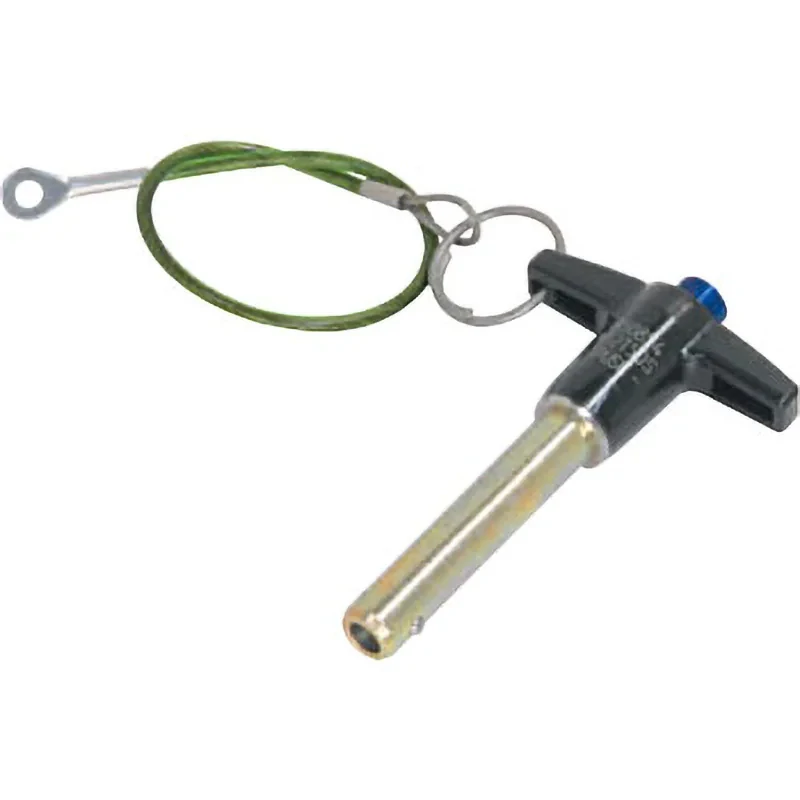

This allows for quick one-touch operation to firmly fix and separate workpieces and parts that are frequently joined together.
