Description

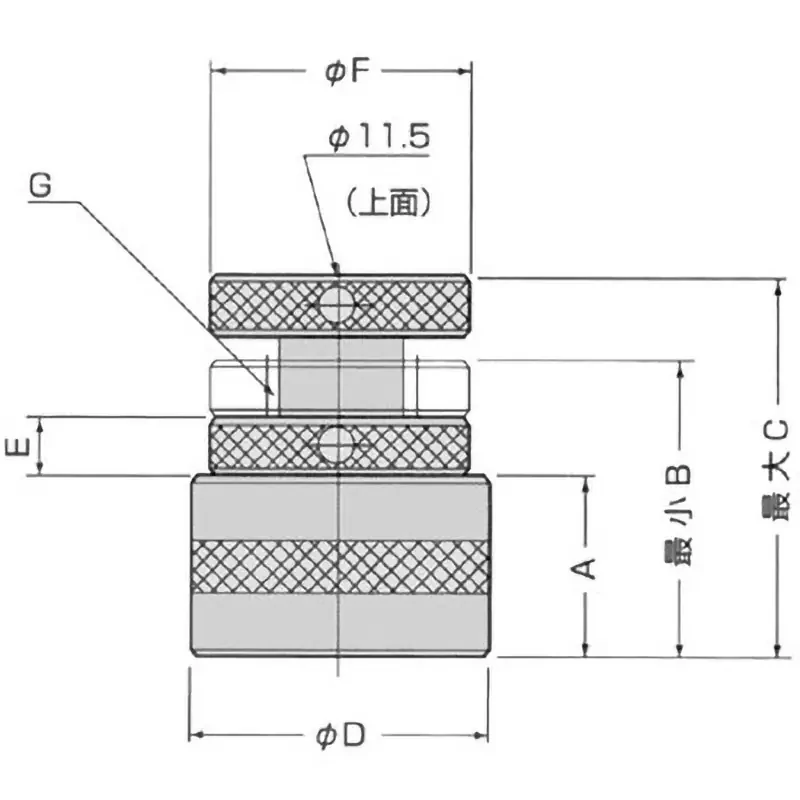

Dimensions A (mm): 85
Dimensions F (mm): 45
Dimensions D (mm): 50
Dimensions E (mm): 12.5
Dimensions B (mm): 110
Dimensions C (mm): 165
Compatible with PW45-7
Trusco part number: 813-0578
Type: Magnetic
Material: S45C
Weight (kg): 2.93
Finish: Black oxide
Weight (for 2 pieces) (kg): 2.93
Dimensions G (mm): Tr25*4
Heat treatment: Quenched HRC35 to 47
Static load capacity (kN): 150

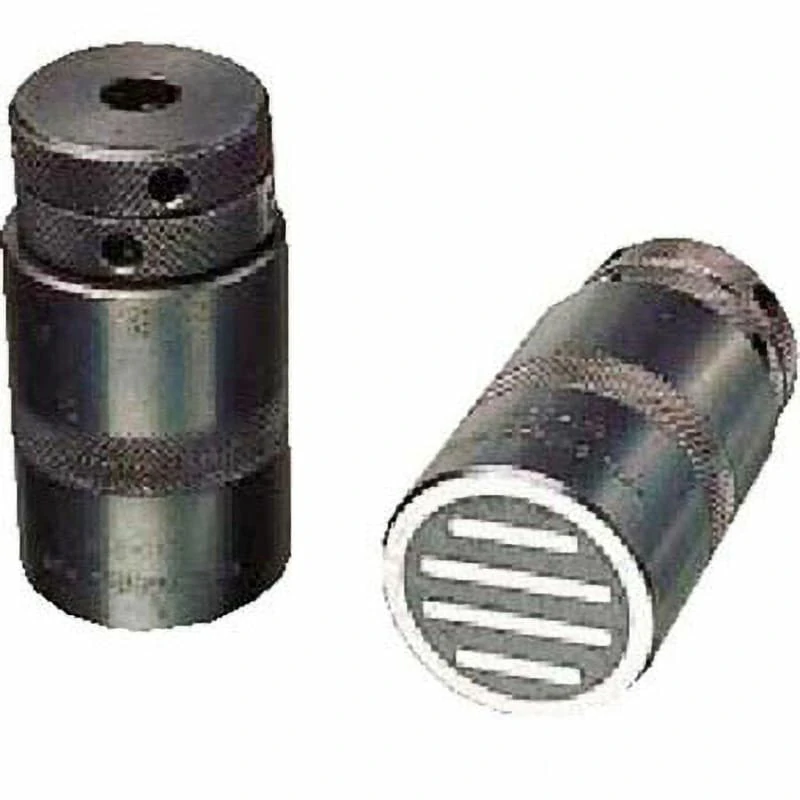

Can be used with both vertical and horizontal jigs.
Since the magnet is built into the bottom surface of the main body, there is no adhesion of chips.
For workpieces with uneven surfaces or irregular shapes, please use support chips (sold separately).
