Description
Contents: 1 piece

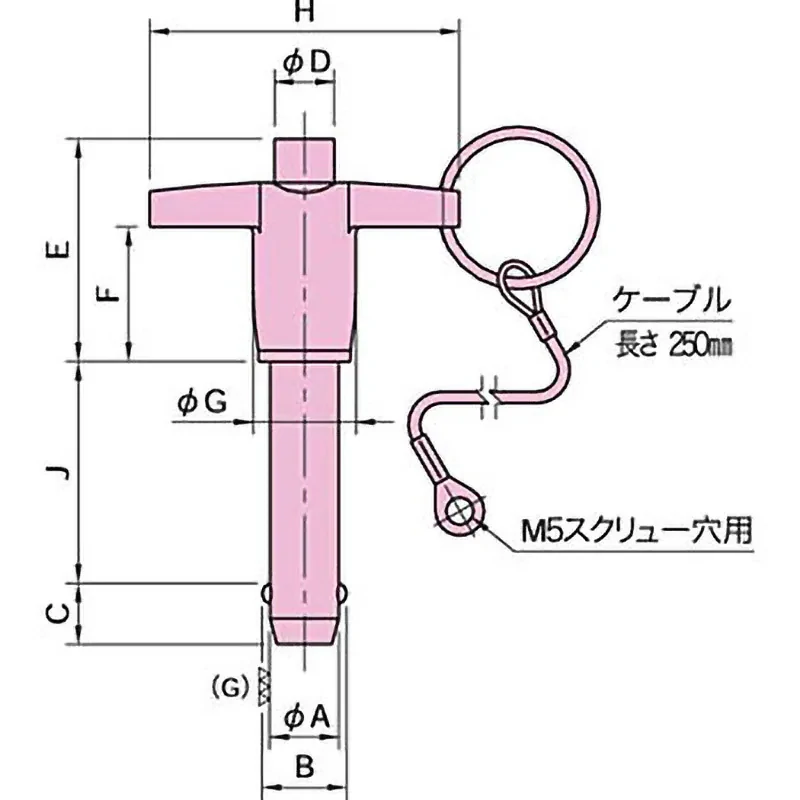

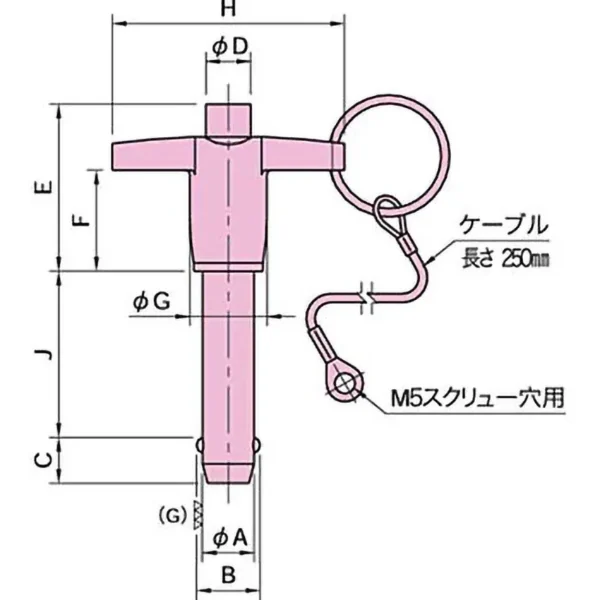

Dimensions H(mm): 46
Part Number: BJ773-05015-SUS
Weight (g): 31
Dimensions H(mm): 46
Dimensions A(mm): 5(-0.02/-0.10)
Dimensions F(mm): 21
Dimensions D(mm): 6.5
Dimensions E(mm): 32
Dimensions B(mm): 5.5(plus or minus 0.3)
Dimensions C(mm): 6(plus or minus 1)
Material: (Ball) SUS440C
Dimensions J(mm): 15(+0.50)
Dimensions G(mm): 11
Handle Color: Black
Material: (Handle) Aluminum Alloy (ADC10)
Material: (Shank) SUS630
Surface Treatment: (Shank) Oxidation (Passive) Coating, Polishing Finish
Surface Treatment: (Handle) Anodized Surface Treatment
Minimum Two-Shear Force (kN): 24
Recommended Hole Inner Diameter (mm): 5(-0.02/-0.10)
Allows for quick one-touch operation for completely fixing and separating workpieces and parts, even for frequently repeated tasks.
