Description

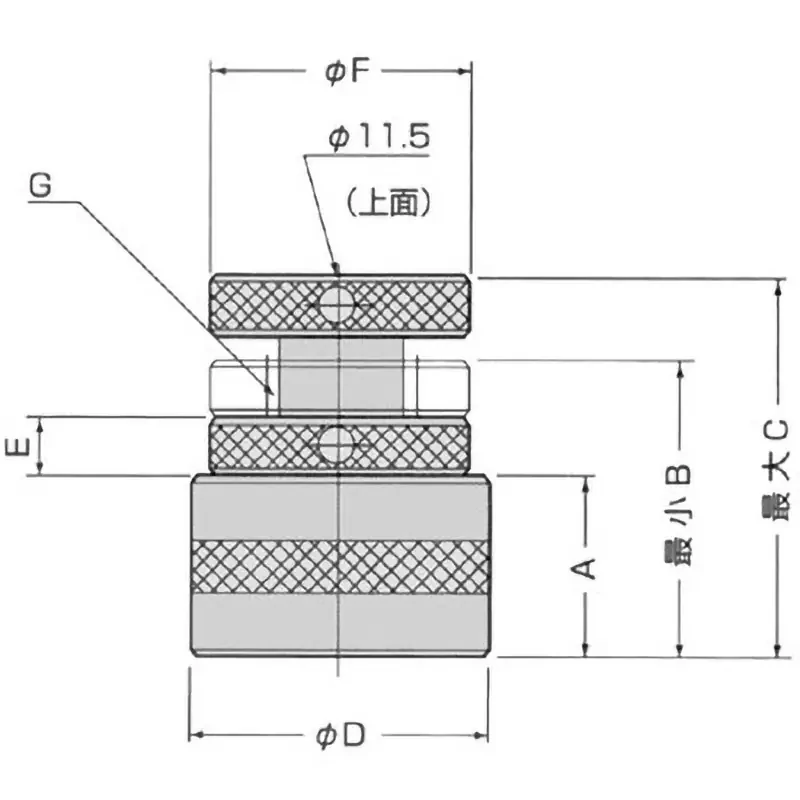

Dimensions A(mm): 63
Dimensions F(mm): 40
Dimensions D(mm): 45
Dimensions E(mm): 11
Dimensions B(mm): 85
Dimensions C(mm): 110
Compatible with PW40-6
Trusco Part Number: 813-0577

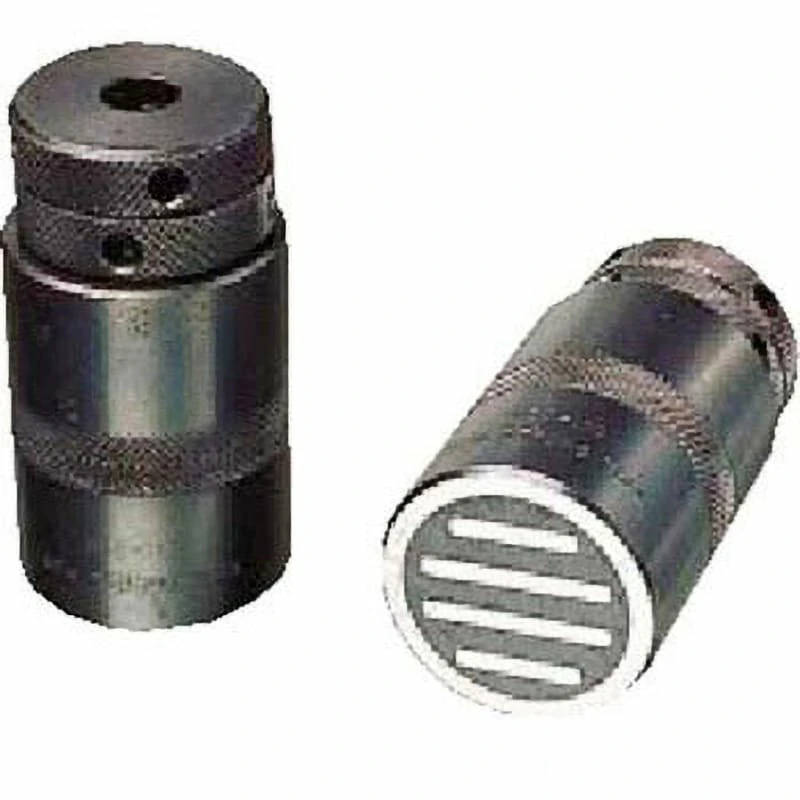

Type: Magnetic
Material: S45C
Weight (kg): 1.75
Finish: Black Oxide
Weight (per set of 2)(kg): 1.75
Dimensions G(mm): Tr25*4
Heat Treatment: Quenched HRC35 to 47
Static Load Capacity (kN): 150
Can be used with vertical and horizontal jigs.
Because the magnetic force is built into the bottom surface of the main body, there is no adhesion of chips.
For uneven surfaces and irregularly shaped workpieces, please use support chips (sold separately).
