Description
Mounting Method: Direct Mount
Connection Method: Screw
Number of Poles: 4P
Terminal Screw: M4
Maximum Current (A): 1.25mm2 Wire: 15, 2mm2 Wire: 20, 3.5mm2 Wire: 30

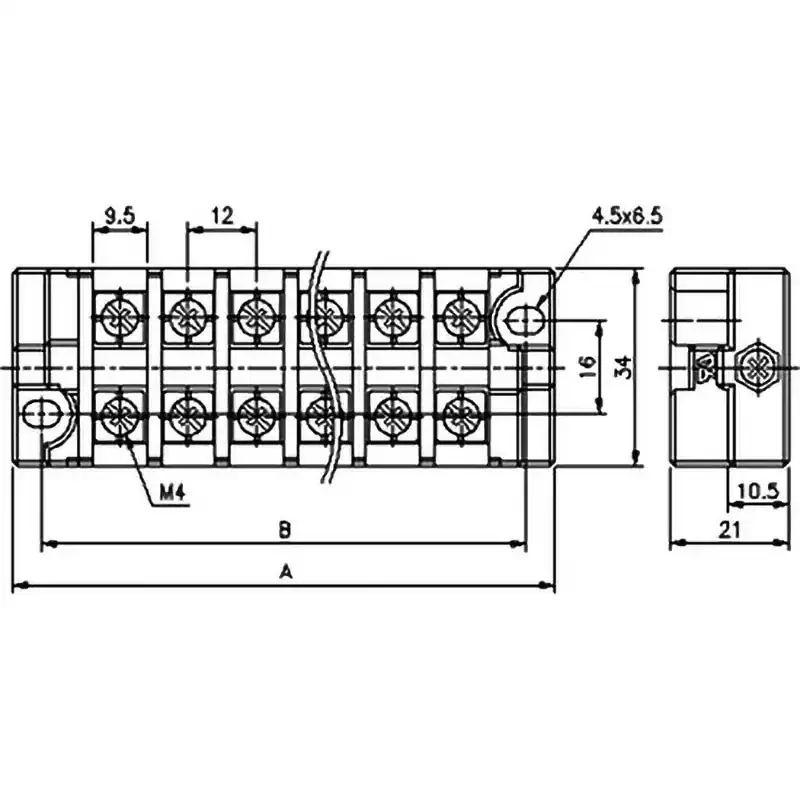

Dimension A (mm): 71
Dimension B (mm): 61
Withstand Voltage (V): 2500
Rated Insulation Voltage (V): 600
Tightening Torque: 14kgf-cm
Material: [Terminal Base] Phenolic (Black), [Cover] PC (Transparent)/UL94-V0, [Conduction Plate] Brass (Nickel Plated), [Terminal Screw Part] Iron (Chromate), [Label] Fiber
