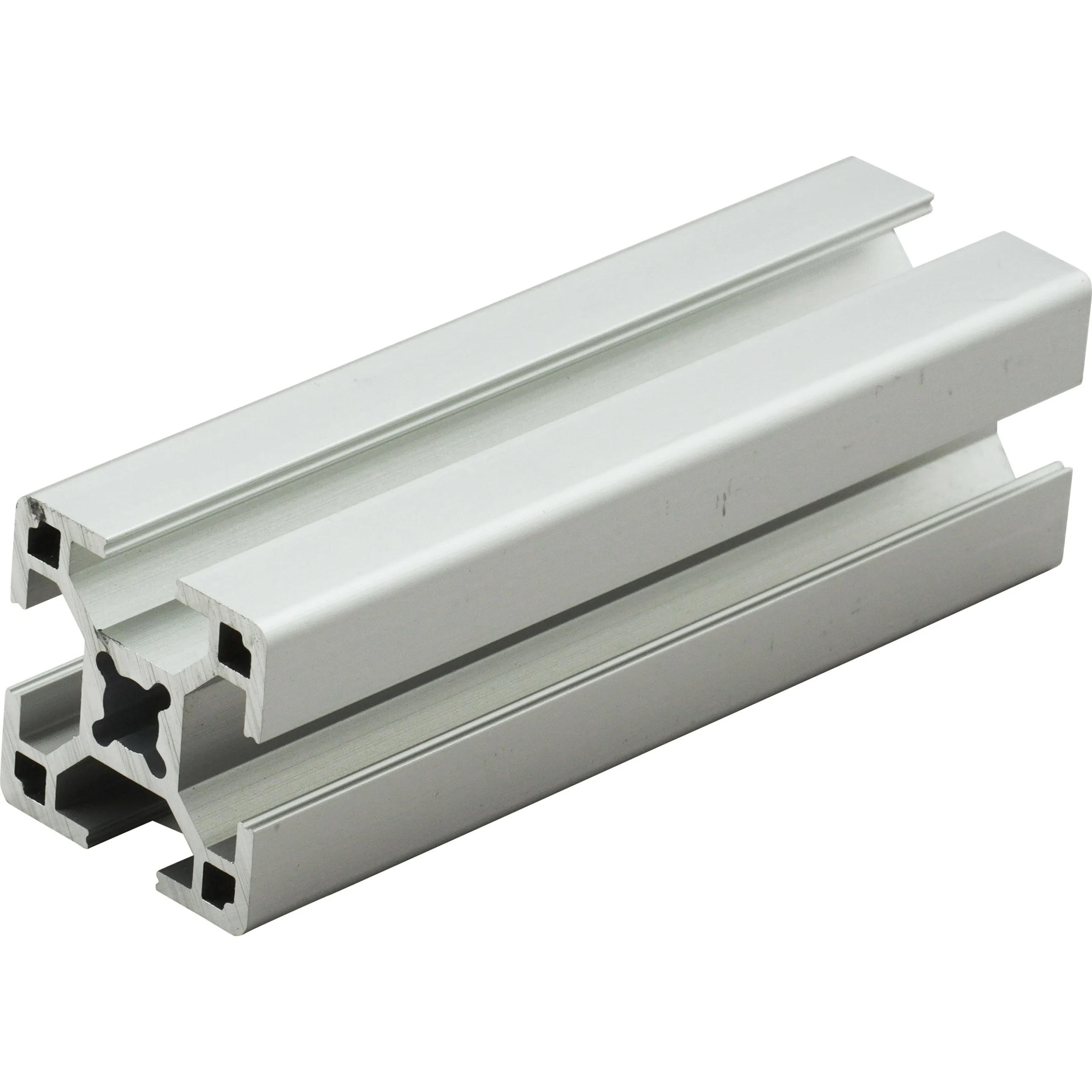

Description
Content Volume: 1 piece
Length (mm): 100
Surface Treatment: Anodized Surface Treatment
Second Moment of Area (10^4 mm^4): Ix: 2.87, Iy: 2.87
Part Number: SFF-324 L=100
Dimensions (mm): 30*30
Length (mm): 100
Material: A6005CSS-T5 (A6N01SS-T5)
Surface Treatment: Anodized Surface Treatment
Resistance Value (ohm): 10^9-10 (Static Electricity Prevention Level) * Reference
Compatible with SF30 Series
Section Modulus (mm^3): Zx: 1.91*10, Zy: 1.91*10
Unit Mass (kg/m): 0.84
Second Moment of Area (10^4 mm^4): Ix: 2.87, Iy: 2.87
