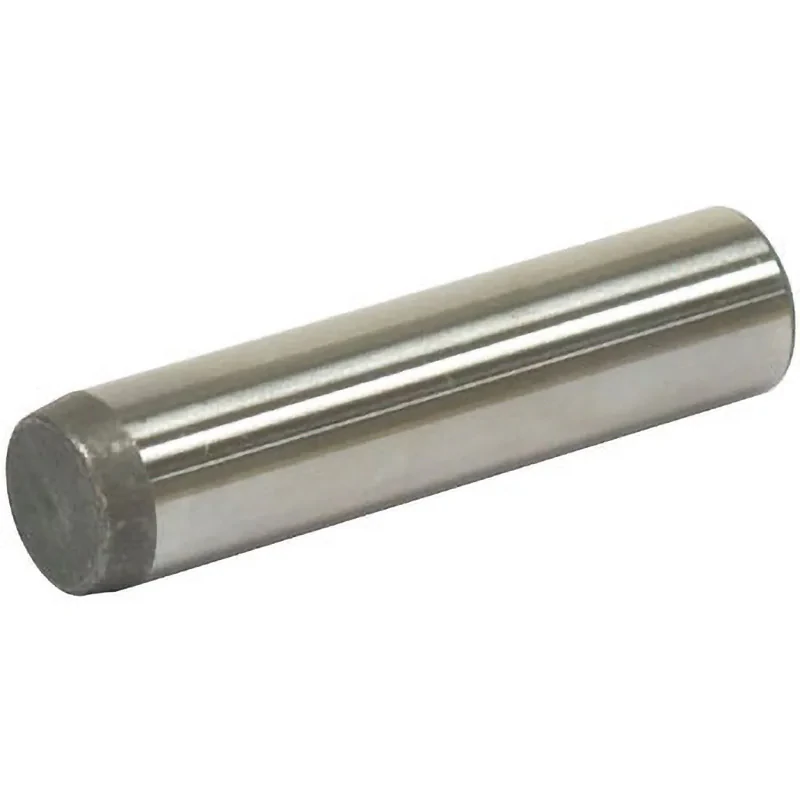

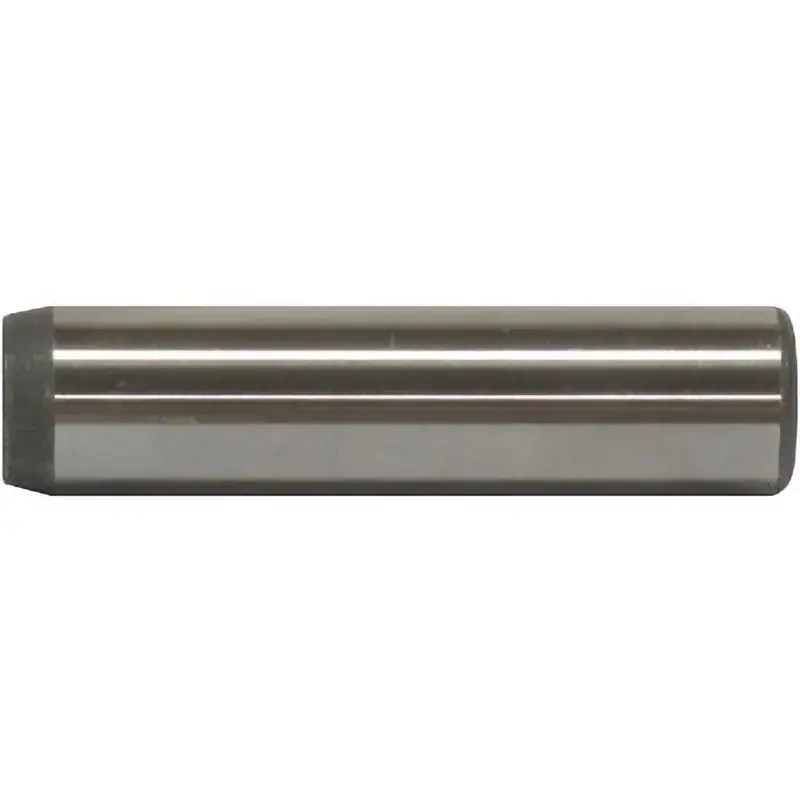

Description

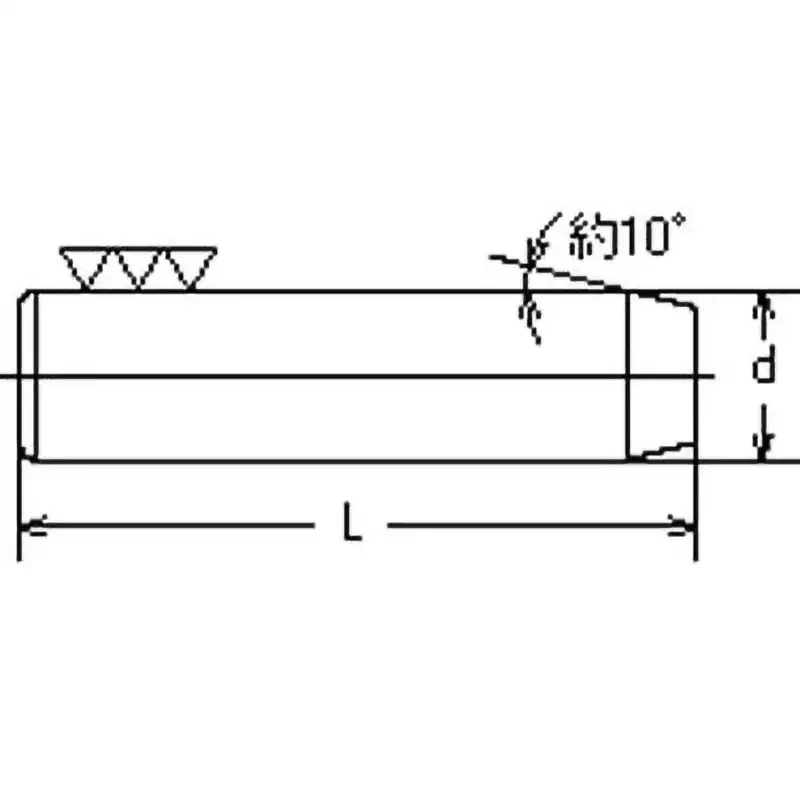

Nominal Diameter: d3
Nominal length: L35
Application: Mainly used for positioning in molds and jigs.
Material: SCM445
Hardness: HRC58 to 62
Tolerance: +0.005 to +0.010
RoHS Directive (10 substances compliant): Compliant
High toughness chromoly steel is used, and the tolerance width is standardized to 5 micrometers.
