Description

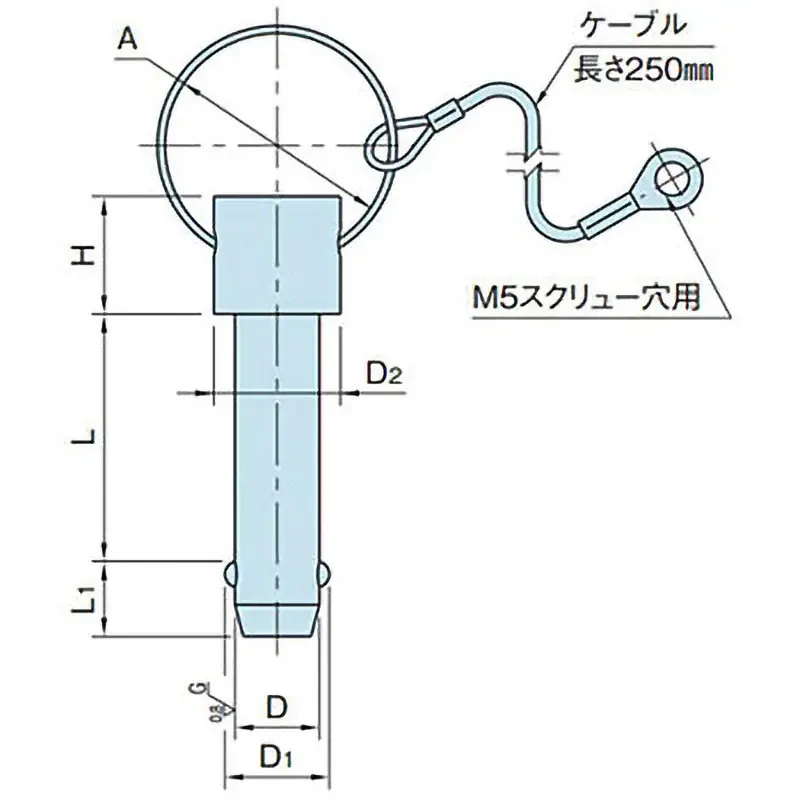

Dimensions L (mm): 90(+0.5/0)
Dimensions L1 (mm): 16.5(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (passivation) coating, polishing finish
Dimensions D (mm): 16(-0.03/-0.13)
Dimensions H (mm): 14
Dimensions A (mm): 35
Dimensions D1 (mm): 19
Mass (g): 204
Dimensions D2 (mm): 19

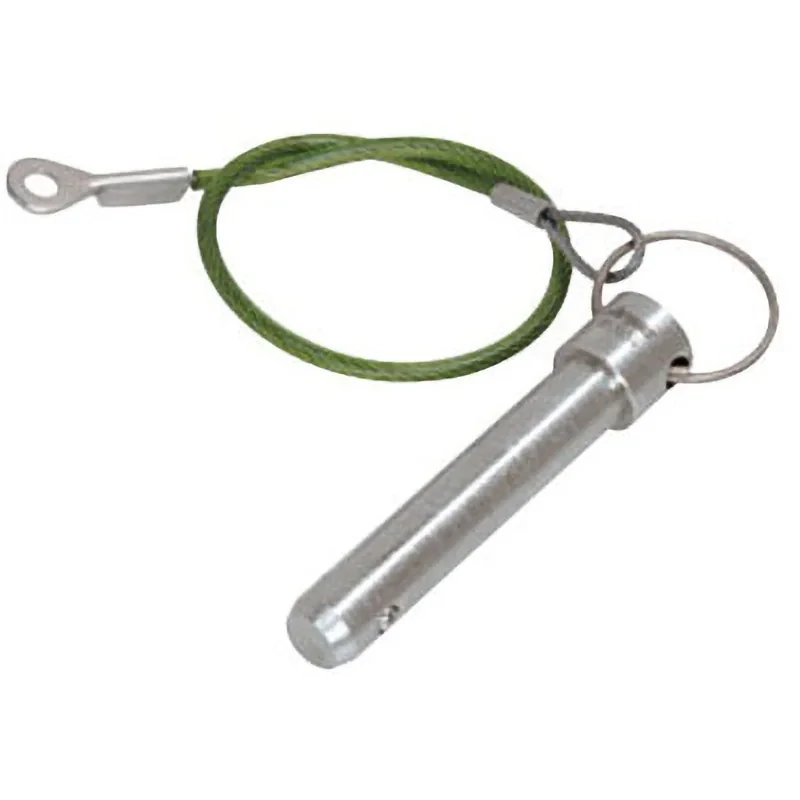

Enables quick fixing and separation of workpieces and parts that are frequently repeated.
Suitable for use as a substitute for bolts or rivets when rapid temporary separation is required or when fixed once should not be separated.
