Description

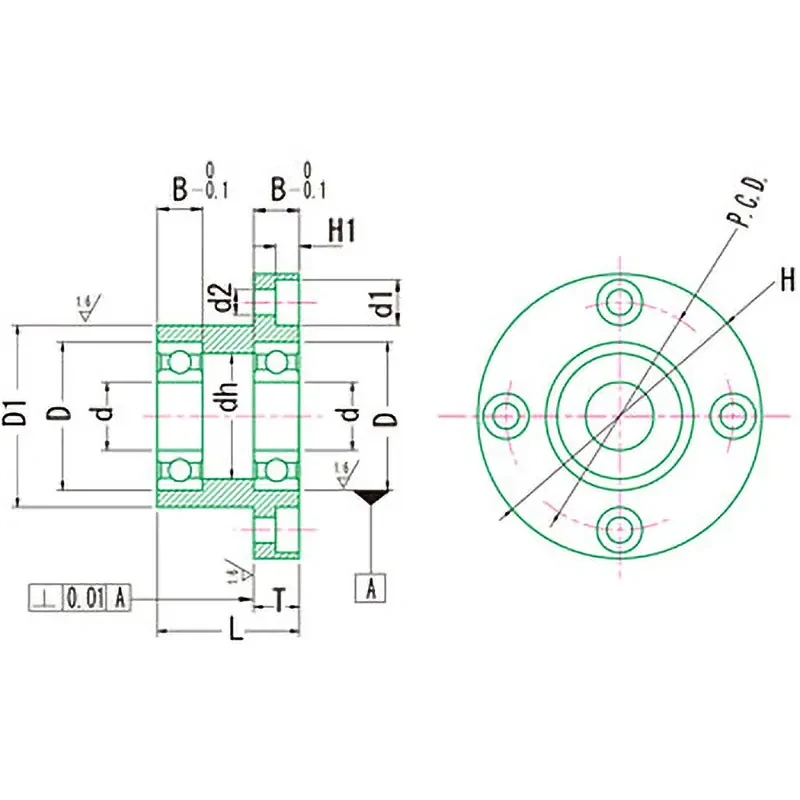

Dimension D1 (mm): (g7) Tolerance: 70-0.010-0.040
Dimension DH (mm): 55
Dimension H1 (mm): 8.1
Dimension P.C.D. (mm): 88
Dimension D (mm): 35
Dimension D2 (mm): 9
Material: (H) / Lead-Free Electroless Nickel Plating, (B) / Bearing Steel
Weight (g): 1515
Dimension T: 13
Dimension D (H7) Tolerance: 62+0.030
Dimension B: 14
Dimension H: 104
Dimension L: 50
Dimension D: 114
