Description
Thread Diameter * Pitch (mm): M5 * P0.8
Material: SUJ2
Hardness: 58 HRC or higher

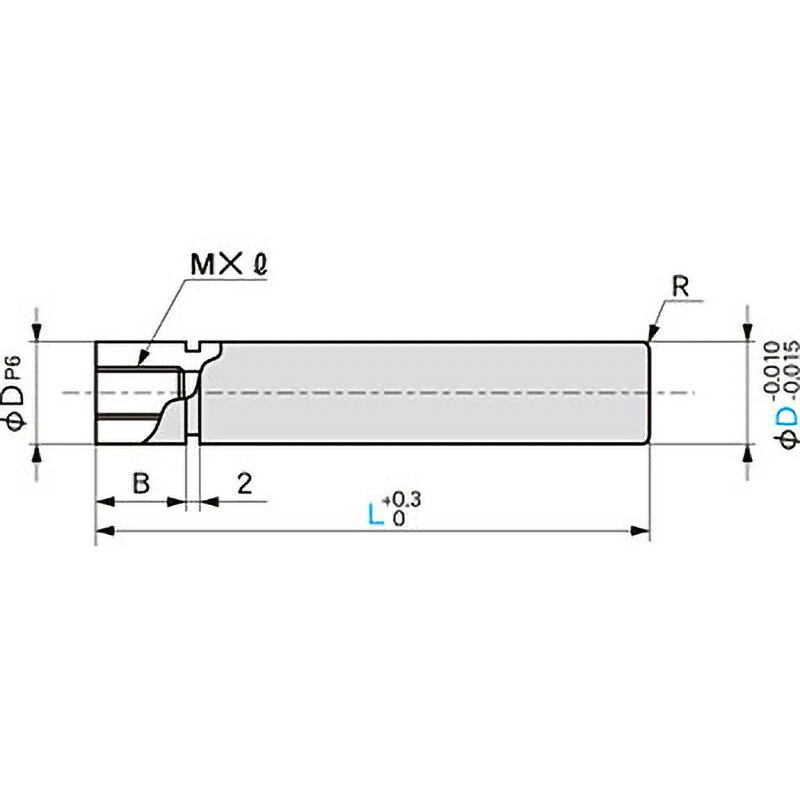

Axial Diameter D (mm): 10
Tolerance D (mm): +0.024 to +0.015
Total length L (mm): 40
Dimension R (mm): 1
Dimension B (mm): 13
Tap depth (mm): 12

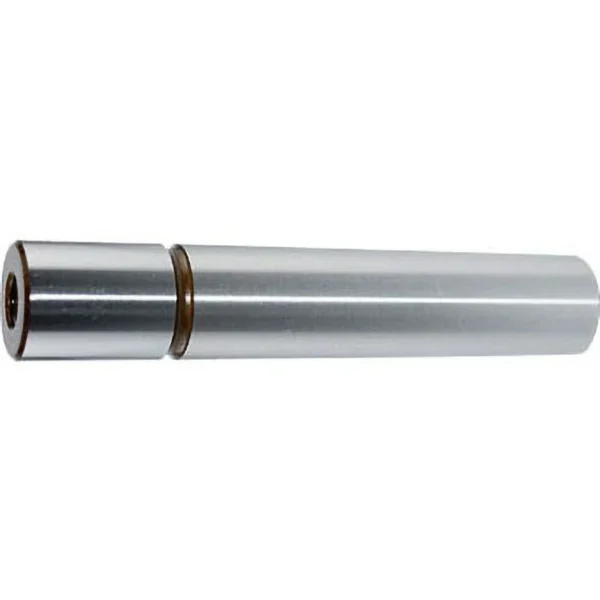

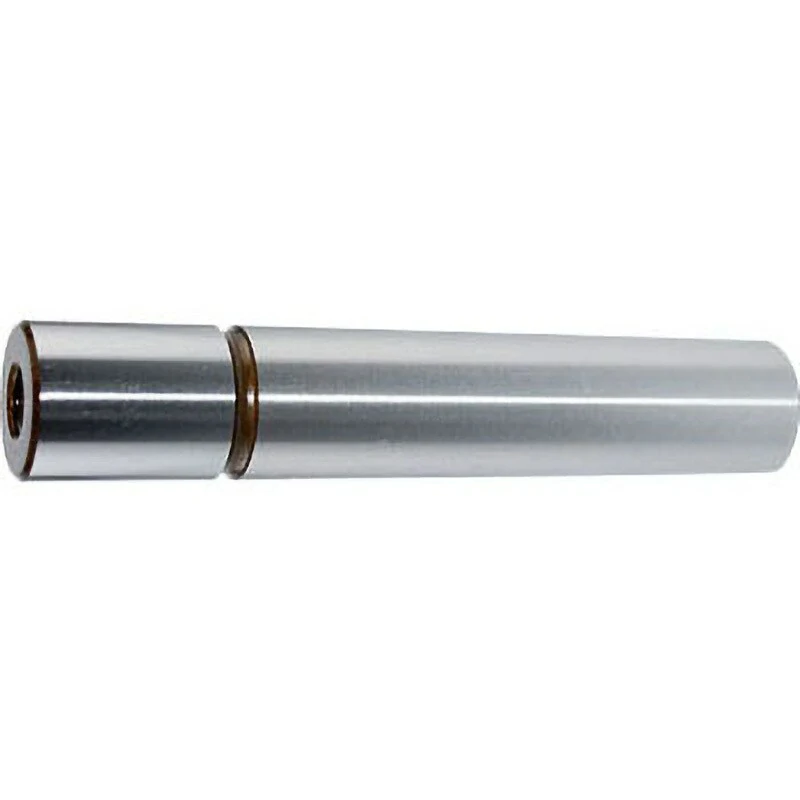

Osaka Spirit Stripper Guide Pin(Straight Type) SGPS10-40
¥287
