Description

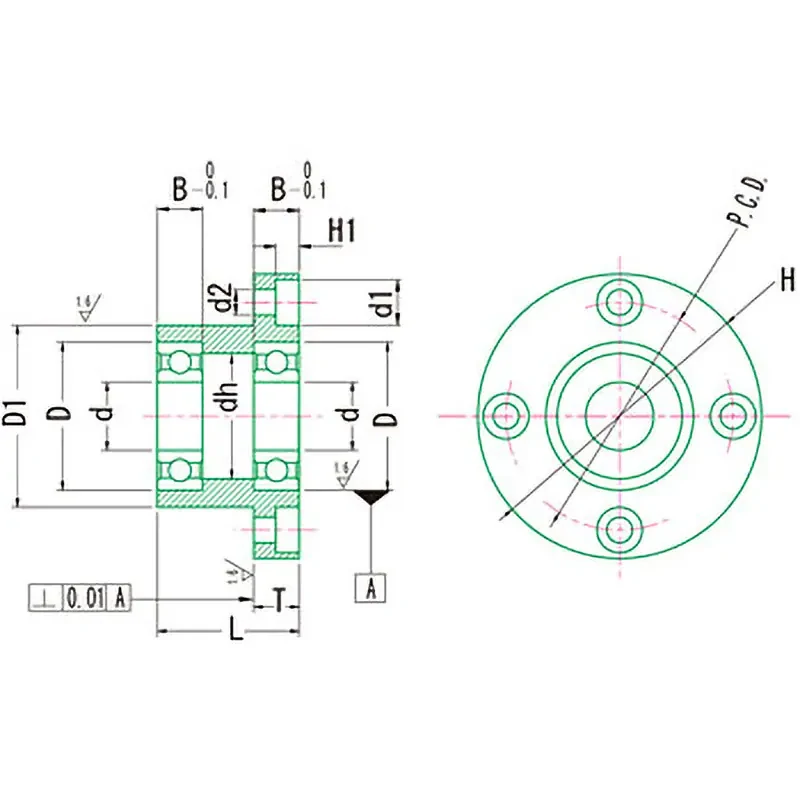

Dimension D1 (mm): (g7) Tolerance: 50-0.009-0.034
Dimension DH (mm): 36
Dimension H1 (mm): 6.1
Dimension P.C.D. (mm): 64
Dimension D (mm): 20
Dimension D2 (mm): 6.6
Material: (H)/Lead-Free Electroless Nickel Plating, (B)/Bearing Steel
Mass (g): 591
Dimension T: 11
Dimension D: (H7) Tolerance: 42+0.025
Dimension B: 12
Dimension H: 77
Dimension L: 40
Dimension D: 111
