Description
Contact Shape: Female
Shell Size: 60
Shape: Straight

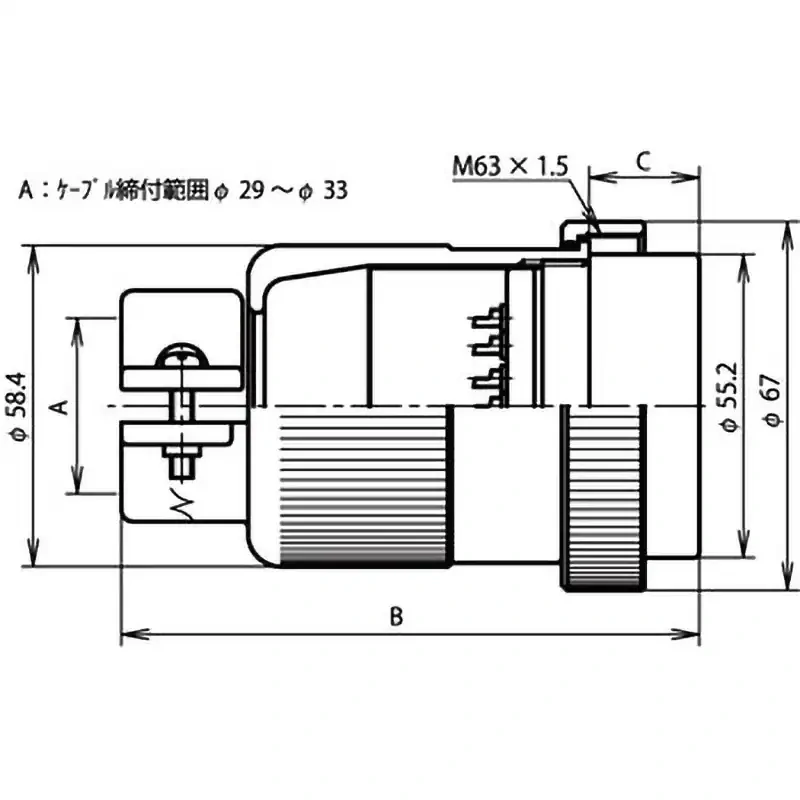

Compatible Cable Outer Diameter (Diameter mm): 29.0 to 33.0
Compatible: NCS-6015-R

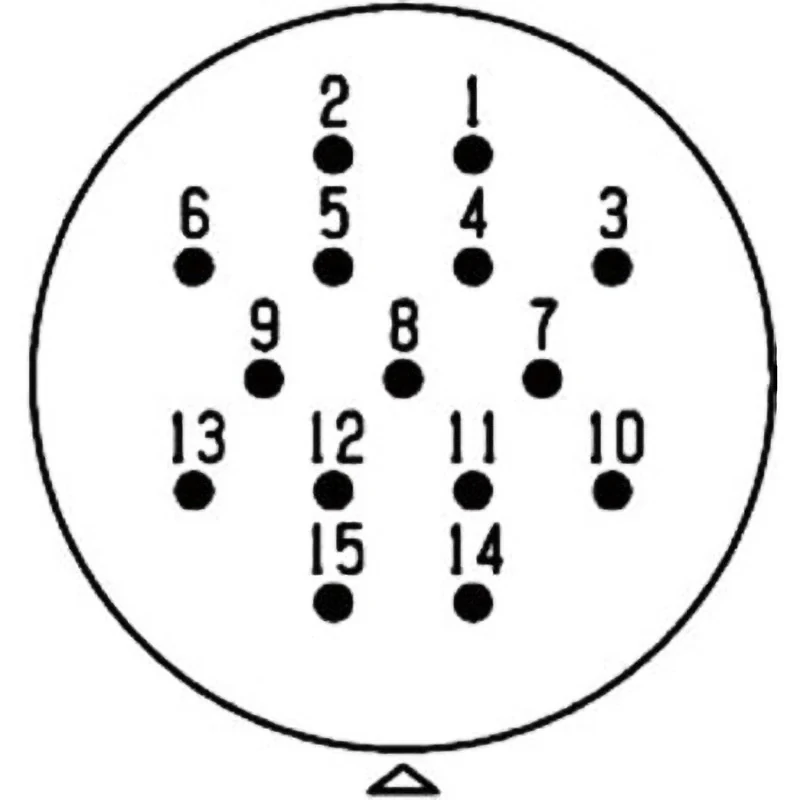

Number of Pins: 15
Rated Voltage (V): 250
Specification: Normal Pin (Device Side)
Type: Round
Operating Temperature Range (Celsius degrees): -40 to +120
Standard: Electrical Appliance and Material Safety Law
Rated Current (A): 15

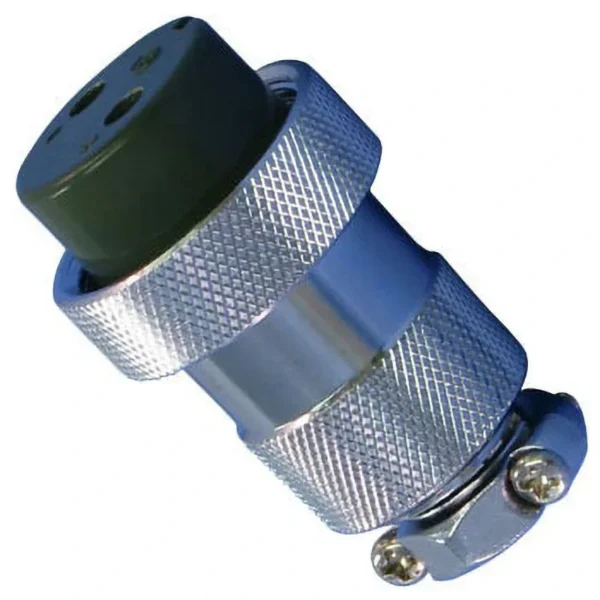

Connector Shape: Plug
Material (Contact)/Treatment: Copper Alloy/Silver Plating
Material (Insulator): Synthetic Resin
Conductor Cross-sectional Area (mm2): 3.5
Insulation Resistance (Megaohm): 2000
Contact Resistance (Megaohm): 3 or less
Coupling Method: Screw
Material (Packing): Synthetic Rubber
Material (Shell)/Treatment: Zinc Alloy or Brass/Chrome Plating or Special Chemical Treatment (16 Color Type)
Limit Operating Voltage (V): 300
RoHS Directive (10 Substances Compliant): Compliant
Withstanding Voltage (V/min): 2500
Wiring Method: Solder
Used in various circuits of the Basic Type of Metal Connector
Mechanically and electrically stable due to robust and simple structure
Shell made of zinc alloy with excellent strength
No special tools required for soldering connection
