Description
Contents: 1 piece

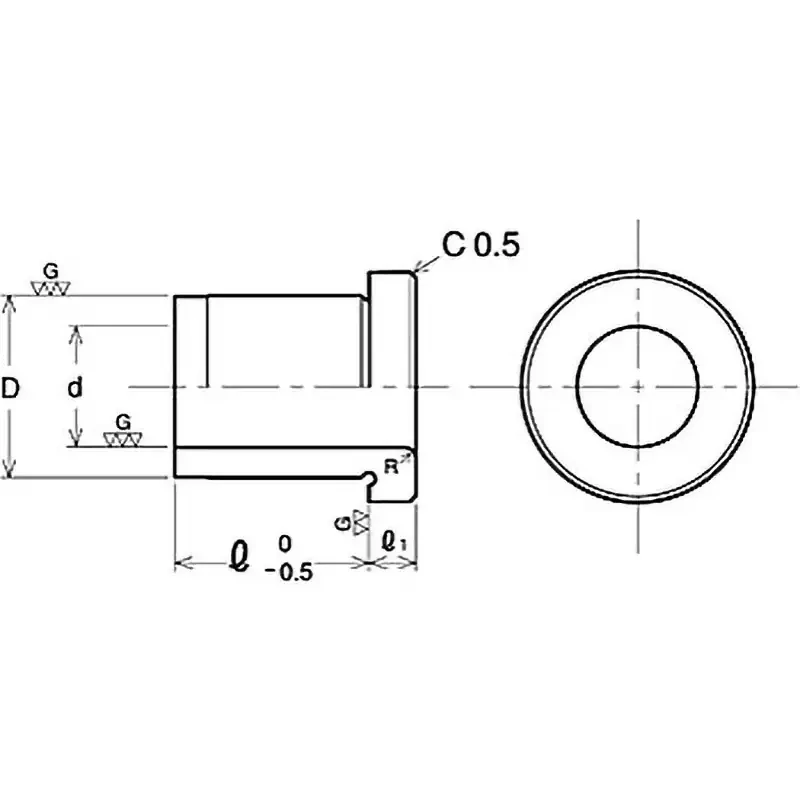

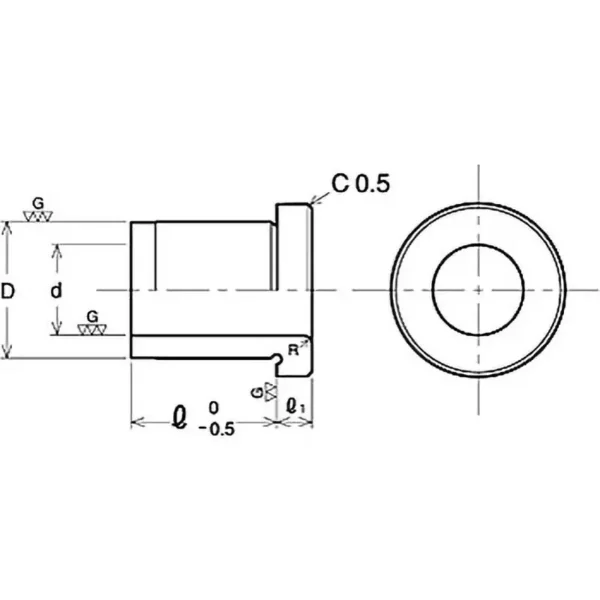

Flange Length l(mm): 8
Part Number: BK2.0*8
Outer Diameter D(mm): 5
Dimension D1(mm): 9
Dimension R(mm): 0.8
Inner Diameter d(mm): 2
Dimension l1(mm): 2.5
Flange Length l(mm): 8
Inner Diameter Tolerance (mm): +0.025/+0.002
Runout of Outer Diameter to Inner Diameter (mm): within 0.012
Outer Diameter Tolerance p6+0.020/+0.012
