Description

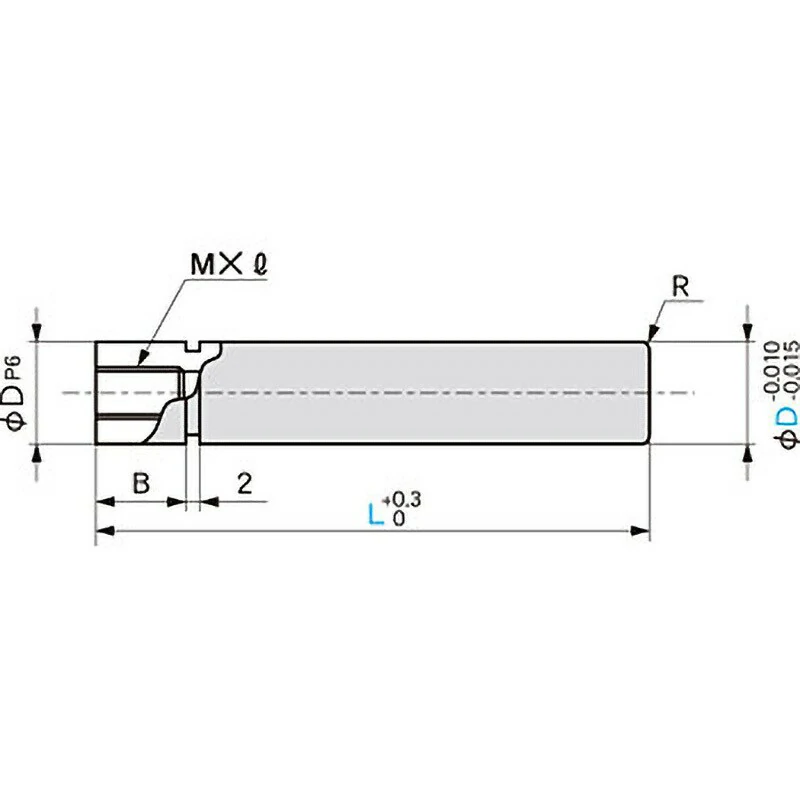

Thread Diameter * Pitch (mm): M5*P0.8
Material: SUJ2
Hardness: 58HRC or higher
Axis Diameter D (mm): 8
Tolerance D (mm): +0.024 to +0.015
Total length L (mm): 70
Dimension R (mm): 1
Dimension B (mm): 10
Tap depth (mm): 12

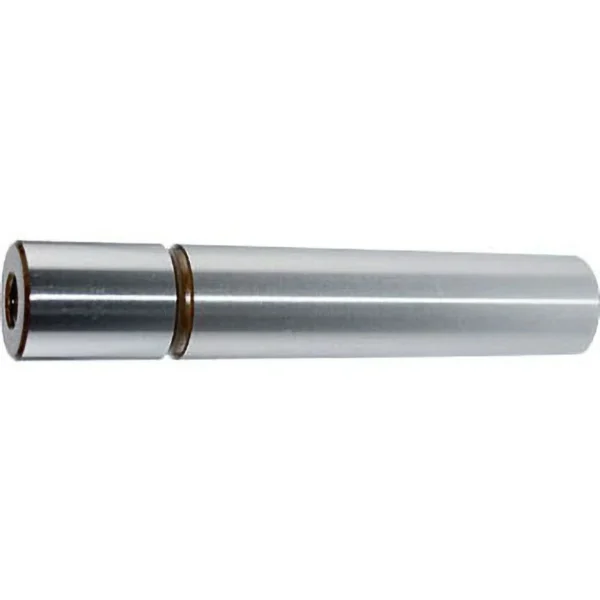

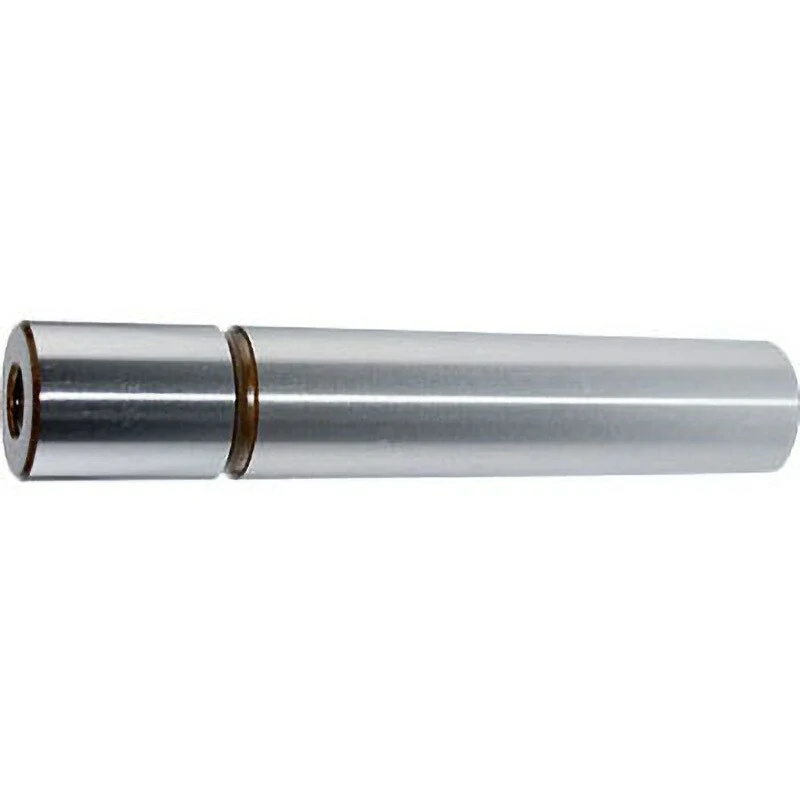

Osaka Spirit Stripper Guide Pin(Straight Type) SGPS8-70
¥323
