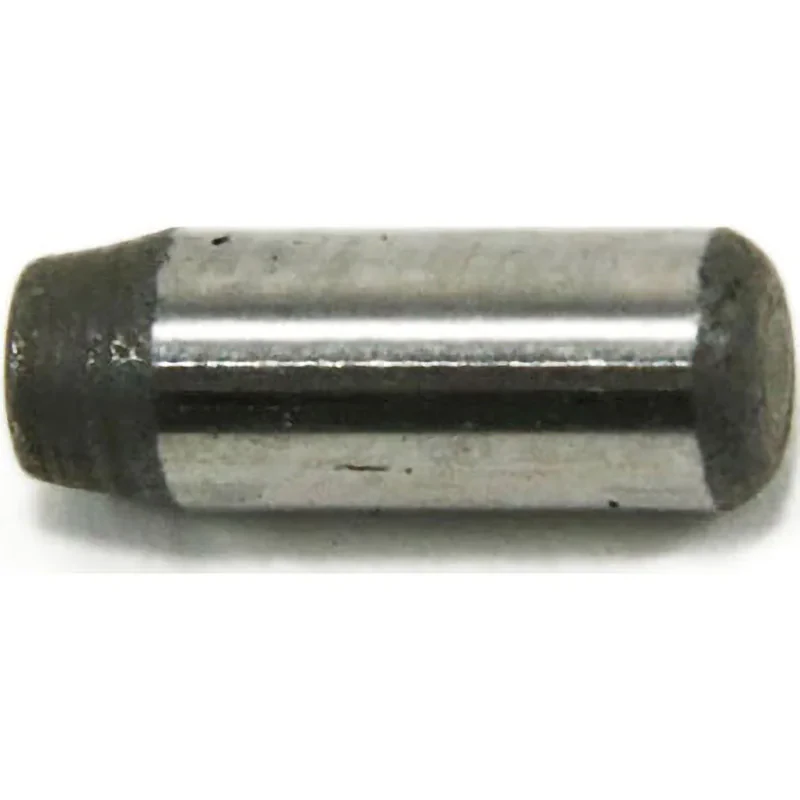

Description

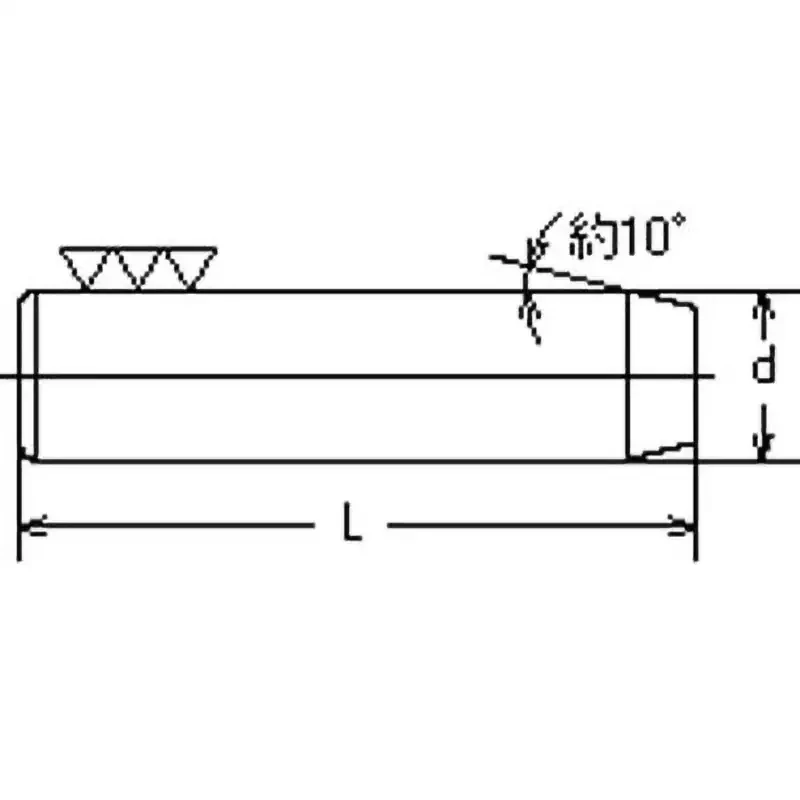

Nominal Diameter: d3
Nominal Length: L8
Application: Mainly used for positioning in molds and jigs.
Material: SCM445
Hardness: HRC58 to 62
Tolerance: +0.005 to +0.010
RoHS Directive (10 substances compliance): Compliant
Using high toughness chromoly steel, the tolerance width is standardized to 5 micrometers.
