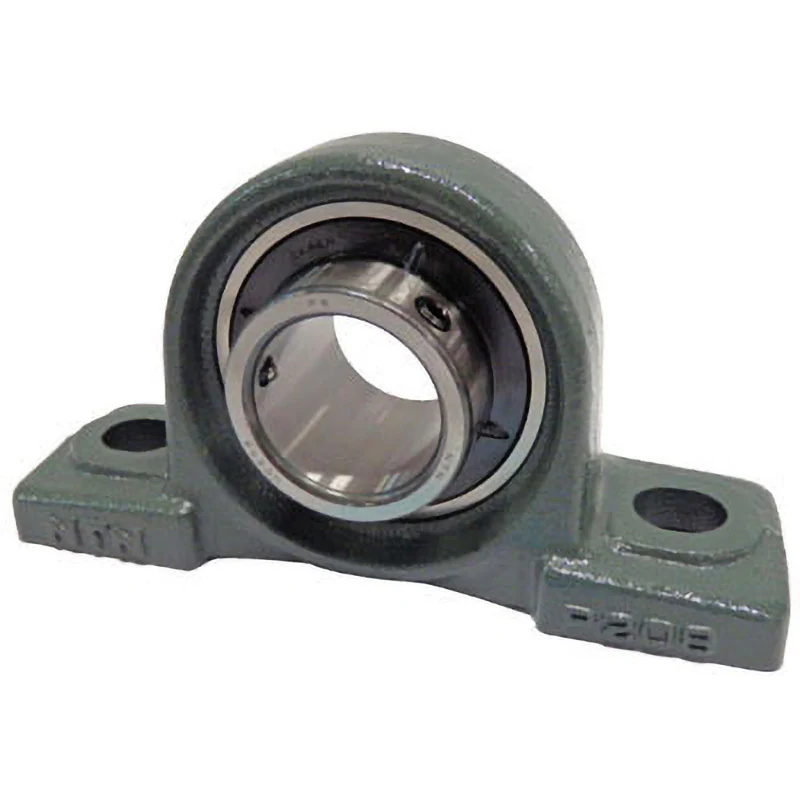

NSK (Nippon Seiko Kabushiki Kaisha) Pillow Block Unit, Oil – free type >UCP208

¥3,710

SKU: r22050155dab5 Category:

Description

Contents: 1 piece
Axis diameter (mm): 40
Basic dynamic rated load (kN): 29.1

Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 49.2
Dimension H1 (mm): 18
Dimension H2 (mm): 98
Dimension J (mm): 137
Dimension L (mm): 184
Dimension L1 (mm): 52
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 19
Axis diameter (mm): 40
Shape: Pillow type unit
Grease nipple: No grease nipple
Load type: For light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Mass (kg): 1.9
Basic static rated load (kN): 17.8
Basic dynamic rated load (kN): 29.1
Bearing designation number: UC208D1
Mounting bolt designation: M14
Bearing box designation number: P208

This is a representative type of bearing unit, equivalent to the combination of the traditional widely used plummer block and self-aligning bearing. It can be easily installed on the shaft by simply tightening the set screw with ball, and it is most commonly used in transmission equipment and general machinery.
