Description
Material: Cylinder: Aluminum alloy (A6063TD), Mounting part: Polyamide (PA6)
Weight (g): 100
Operating temperature range (Celsius degrees): -10 to 60

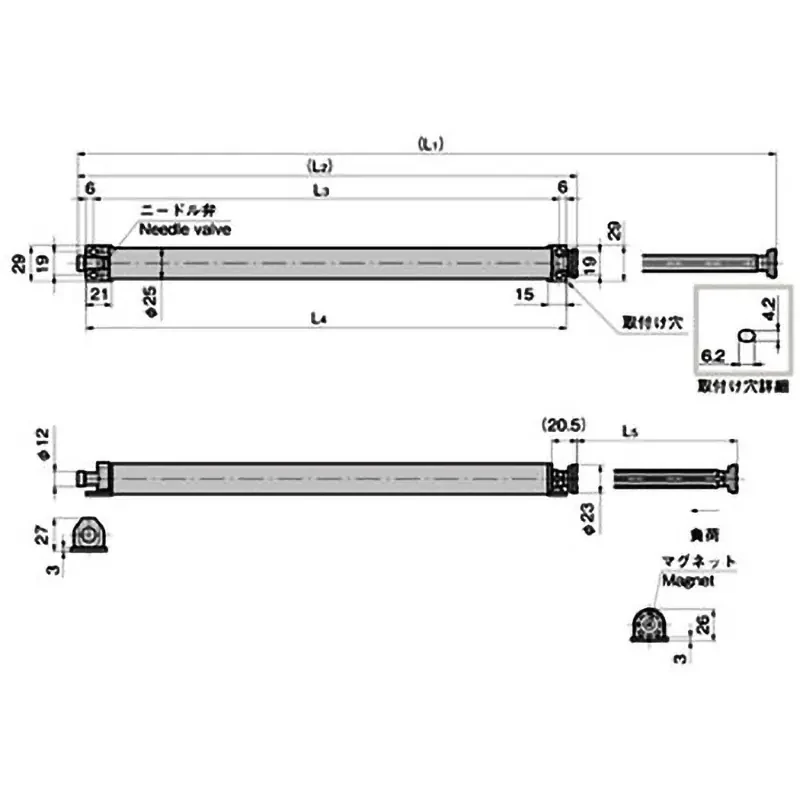

Dimension L1 (mm): 382
Dimension L2 (mm): 260
Dimension L3 (mm): 232
Dimension L4 (mm): 244
Tensile load (N): 0.5 or less
Dimension L5 (mm): 122
Takigen code: 13255

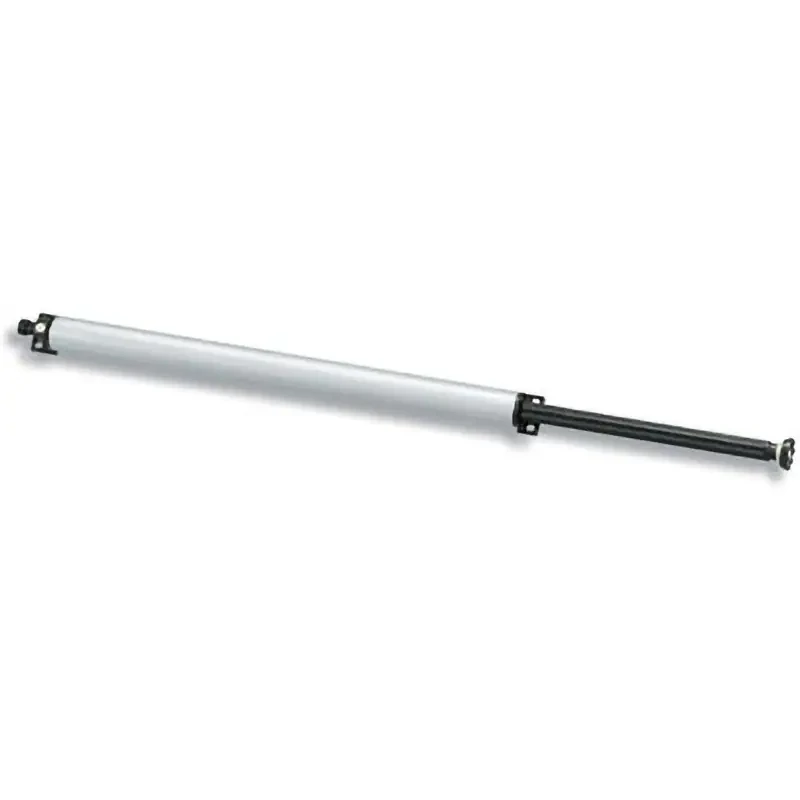

Application: As a buffer for self-closing sliding doors, general household use, commercial doors, etc.
Reaction force acts in the direction of rod contraction and does not act in the direction of extension.
By adopting a special adjustment mechanism, the damper force can be finely adjusted with a needle valve.
It is lightweight, primarily using resin.
Compact design for easy installation.
Operation is smooth and quiet.
