Description
Dimension A (mm): 185
Dimension B (mm): 210
Dimension C (mm): 205
Dimension D (mm): 153
Dimension E (mm): 360
Dimension F (mm): 175
Dimension G (mm): 185
Type: Slide type
Stroke (mm): 465 plus or minus 2
Rail length (mm): (Body side) 450, (Drawer side) 446
Rated load (N): 294.2 (1 set)
Number of stages: 3
Material: (Rail) Steel
Surface treatment: (Rail) Unichrome
Set contents: 1 piece each for left and right
Slide dimension (mm): 465

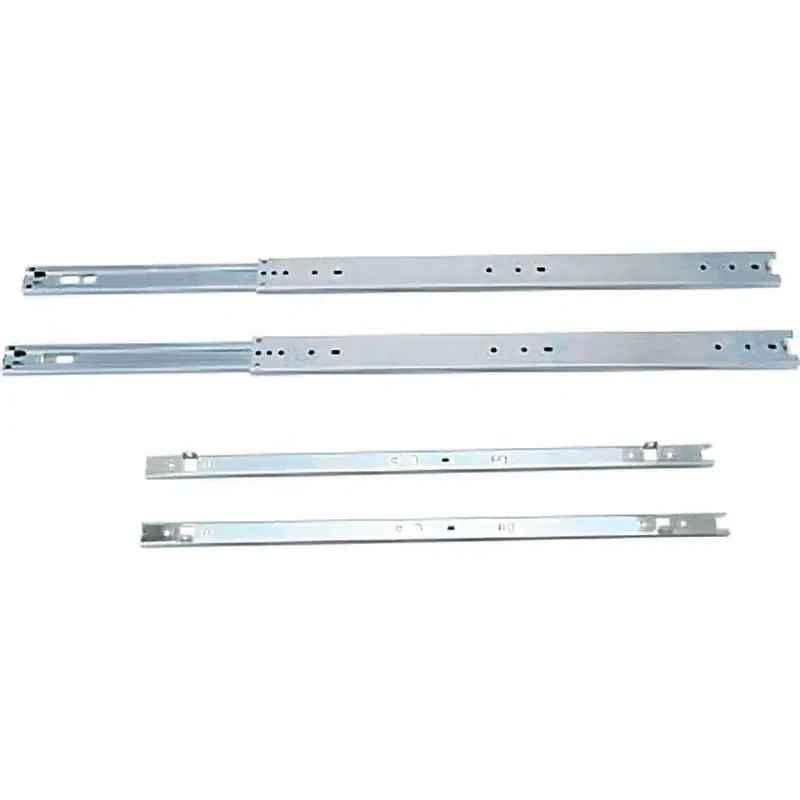

This is a fully sliding 3-stage slide rail that allows the drawer to be pulled out 100%.
The drawer side rail has a cutout, allowing for direct screw fixing from the underside of the drawer.
By pulling the rail out to the maximum and pressing the stopper, the drawer side rail can be removed.
