Description
Dimension A (mm): 135
Dimension B (mm): 160
Dimension C (mm): 155
Dimension D (mm): 128
Dimension E (mm): 260
Dimension F (mm): 125
Dimension G (mm): 135
Type: Slide type
Stroke (mm): 365 plus or minus 2
Rail length (mm): (Body side) 350, (Drawer side) 346
Rated load (N): 353 (1 set)
Number of stages: 3
Material: (Rail) Steel
Surface treatment: (Rail) Unichrome
Set contents: 1 piece each for left and right
Slide dimension (mm): 365

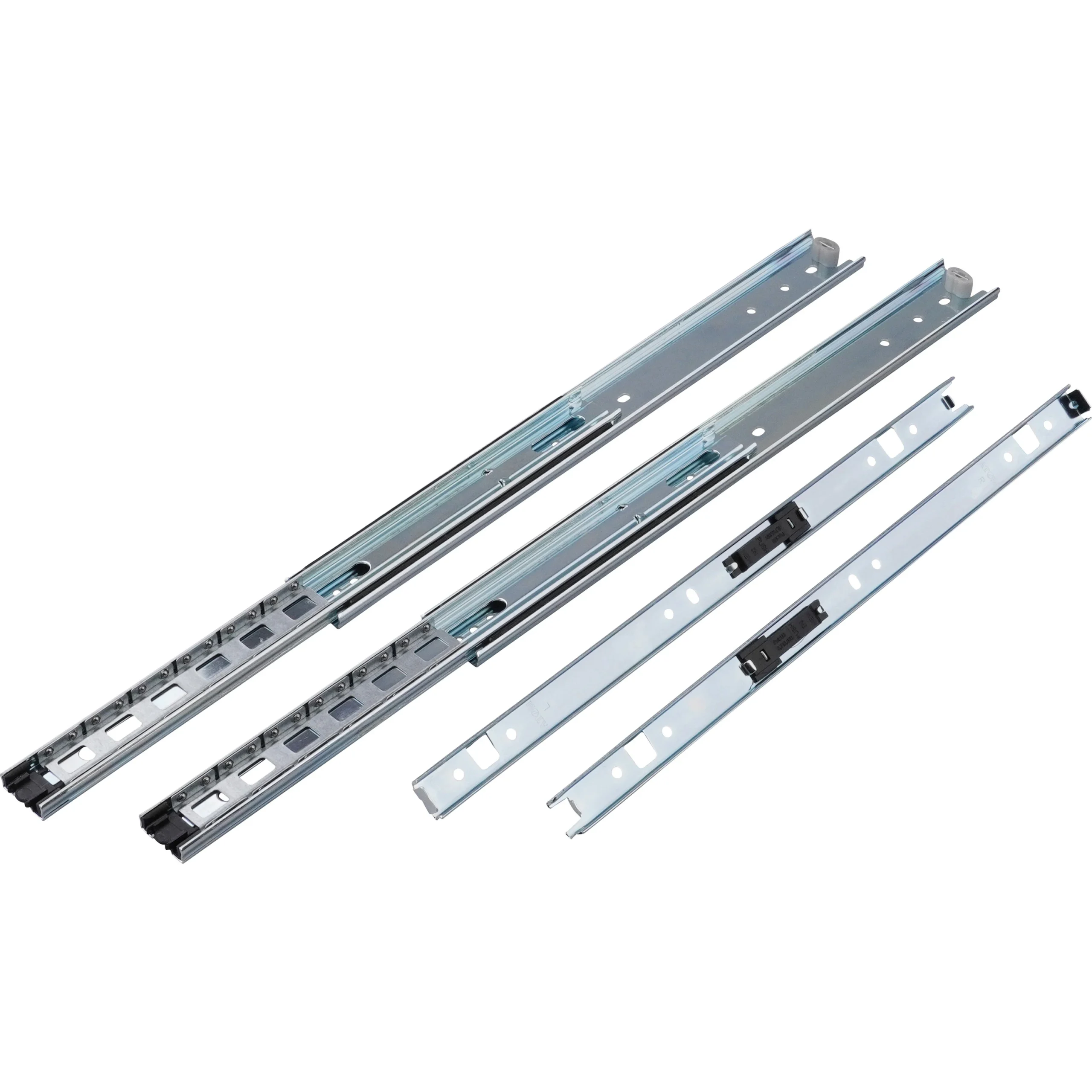

This is a fully sliding three-stage slide rail that allows you to pull out the drawer 100%.
The drawer side rail has a cutout, allowing for direct screw attachment from underneath the drawer.
By pulling the rail out to the maximum and pressing the stopper while pulling further, the drawer side rail can be removed.
