Description
Dimension A (mm): 110
Dimension B (mm): 135
Dimension C (mm): 130
Dimension D (mm): 78
Dimension E (mm): 210
Dimension F (mm): 100
Dimension G (mm): 110
Type: Slide Type
Stroke (mm): 315 plus or minus 2
Rail Length (mm): (Body Side) 300, (Drawer Side) 296
Rated Load (N): 382.5 (1 set)
Number of Stages: 3
Material: (Rail) Steel
Surface Treatment: (Rail) Unichrome
Set Contents: 1 piece each for left and right
Slide Dimension (mm): 315

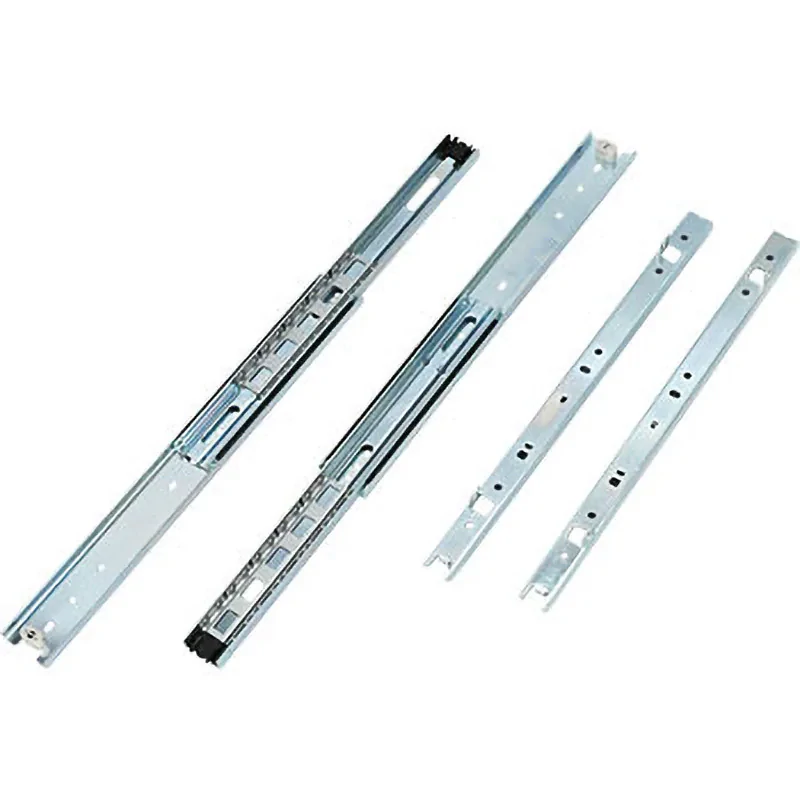

This is a completely sliding 3-stage slide rail that allows the drawer to be pulled out 100%.
The drawer side rail has a cut-out, allowing direct screw fastening from the underside of the drawer.
When the rail is pulled out to the maximum and the stopper is pressed while pulling further, the drawer side rail can be removed.
