Description
Contents: 1 piece
Axis diameter (mm): 20
Basic dynamic rated load (kN): 12.8

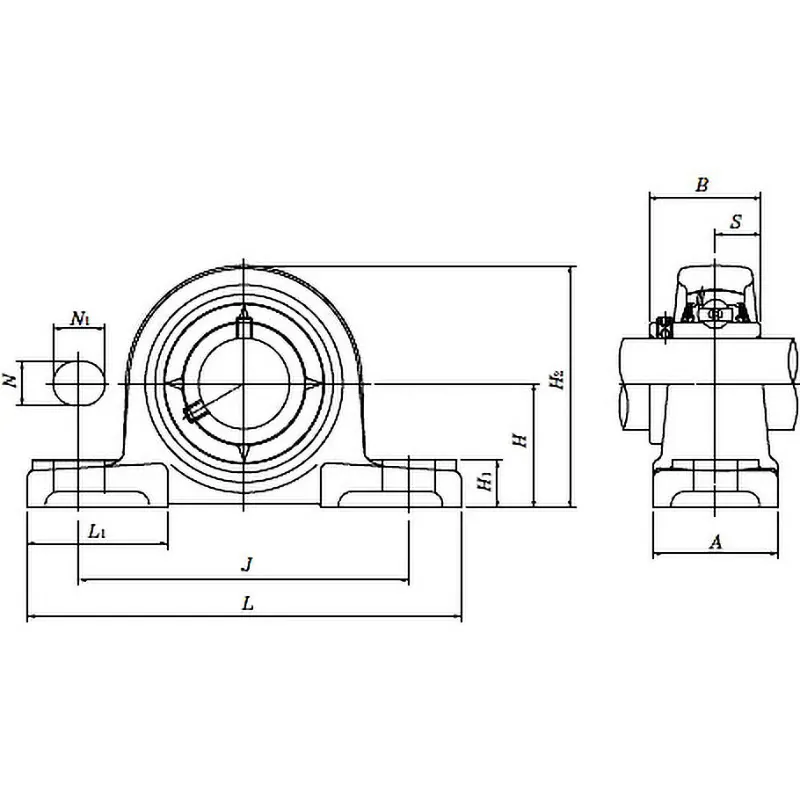

Dimension A (mm): 38
Dimension B (mm): 31
Dimension H (mm): 33.3
Dimension H1 (mm): 14
Dimension H2 (mm): 65
Dimension J (mm): 95
Dimension L (mm): 127
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 12.7
Axis diameter (mm): 20
Shape: Pillow type unit
Grease nipple: No grease nipple
Load type: Light load use
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Mass (kg): 0.7
Basic static rated load (kN): 6.65
Basic dynamic rated load (kN): 12.8
Bearing designation number: UC204D1
Mounting bolt designation: M10
Bearing box designation number: P204

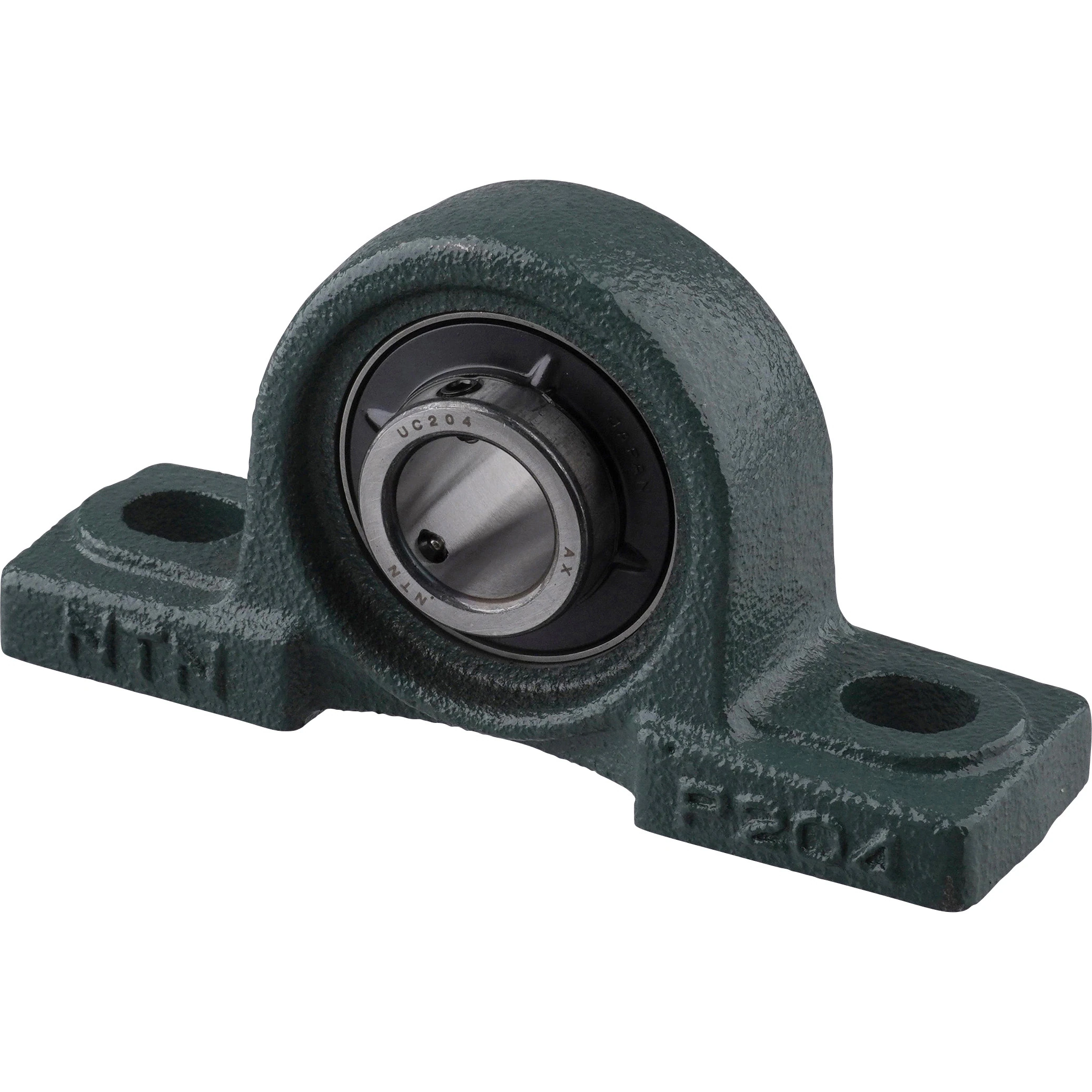

This is a representative type of bearing unit, corresponding to the combination of the commonly used plummer block and self-aligning bearing. It can be easily mounted onto the shaft by tightening the set screw with ball, and is most commonly used in transmission devices and general machinery.
