Description
Dimension A (mm): 170
Dimension B (mm): –
Dimension C (mm): 105
Dimension D (mm): 53
Dimension E (mm): 160
Dimension F (mm): –
Dimension G (mm): –
Type: Slide type
Stroke (mm): 265 plus or minus 2
Rail length (mm): (Body side) 250, (Drawer side) 246
Rated load (N): 411.9 (1 set)
Number of stages: 3
Material: (Rail) Steel
Surface treatment: (Rail) Unichrome
Set contents: One each for left and right
Slide dimension (mm): 265

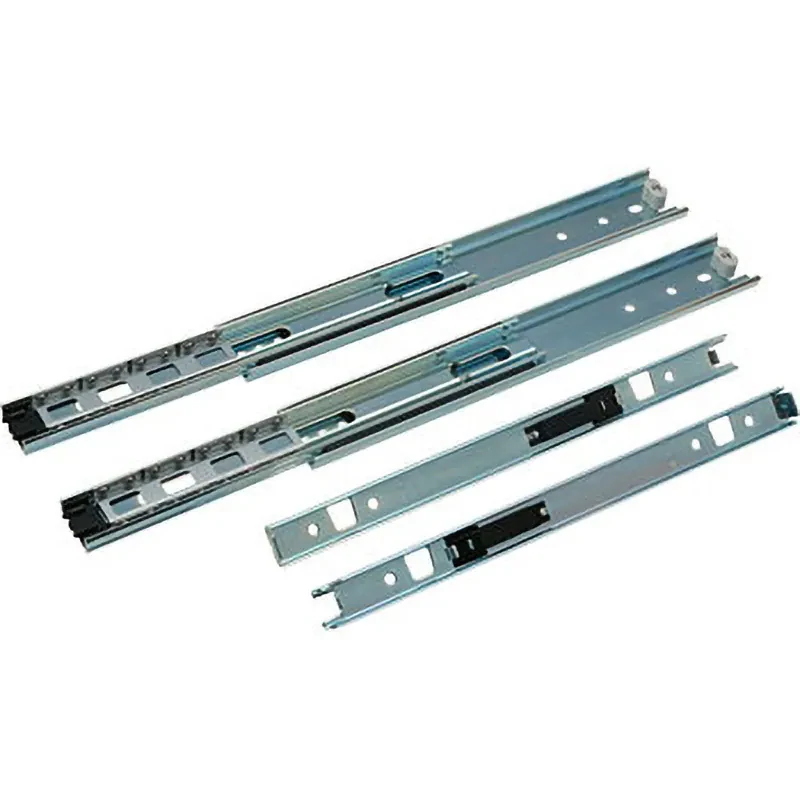

This is a 3-stage slide rail with full extension that allows the drawer to be pulled out 100%.
The drawer-side rail has a cutout, allowing direct screw fastening from the bottom of the drawer.
By pulling the rail out to the maximum and pressing the stopper while pulling further, the drawer-side rail can be removed.
