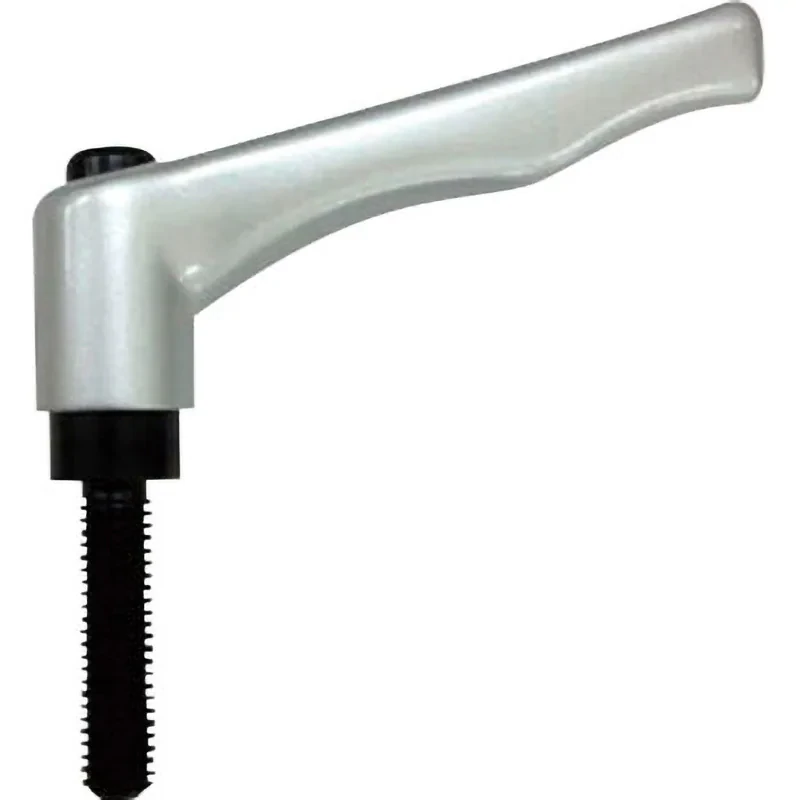

GEO.PRINCE TAKESHITA Clamp Lever(Male Thread) CLMB4-25-S

¥719

SKU: r2204555059e3 Category:

Description

Content: 1 piece
Mounting hole Diameter (mm): M4
Mounting length (mm): 25
Part number: CLMB4-25-S

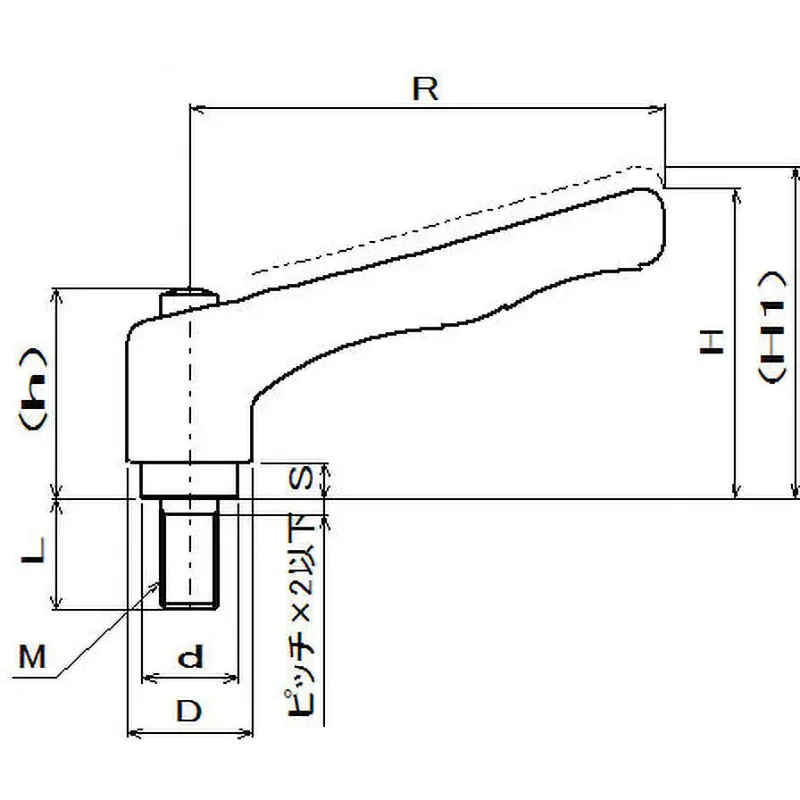

Dimension D (mm): 13
Dimension H (mm): 35.7
Dimension H1 (mm): 39
Dimension L (mm): 25
Dimension M (mm): M4
Dimension R (mm): 48.5
Dimension S (mm): 4
Dimension d (mm): 10
Dimension h (mm): 25.8
Type: Clamp Lever
Shape: L-shaped
Mounting part: Male Thread
Mounting hole Diameter (mm): M4
Mounting length (mm): 25
Turning radius (mm): 48.5
Material (body): Zinc Die-Cast
Material (thread part): S45C
Material (spring part): SUS304-WPB
Surface treatment (thread part): Black Oxide Coating
Surface treatment (lever part): Powder Coating
Maximum load (N): 80
Maximum tightening force (kN): 3
Lever color: Silver
