Description
Contact Shape: Female
Shell Size: 50
Shape: Straight

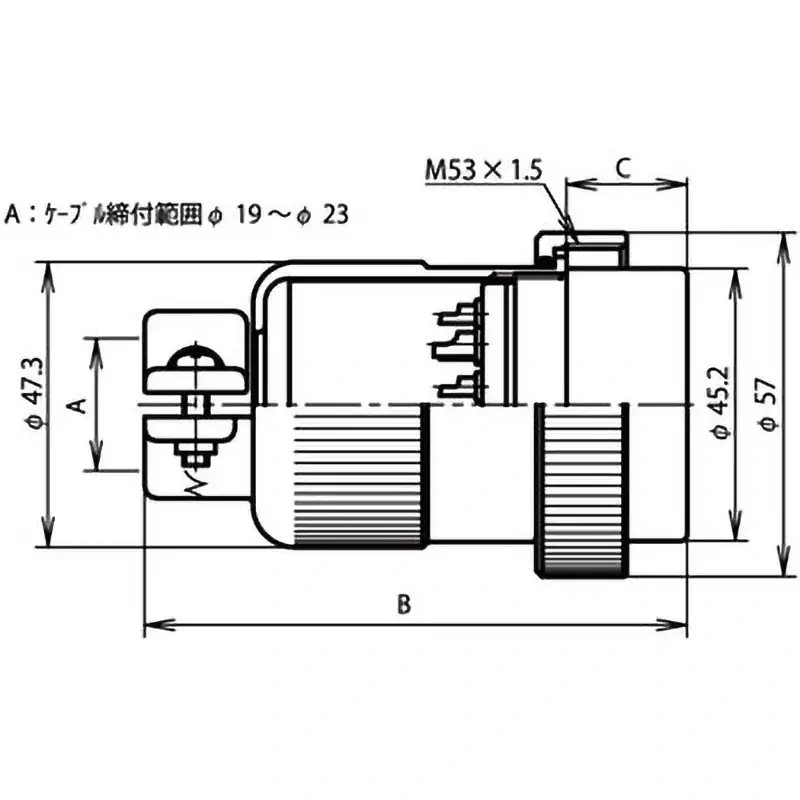

Suitable Cable Outer Diameter (mm): 19.0闂?3.0
Compatible: NCS-5010-R

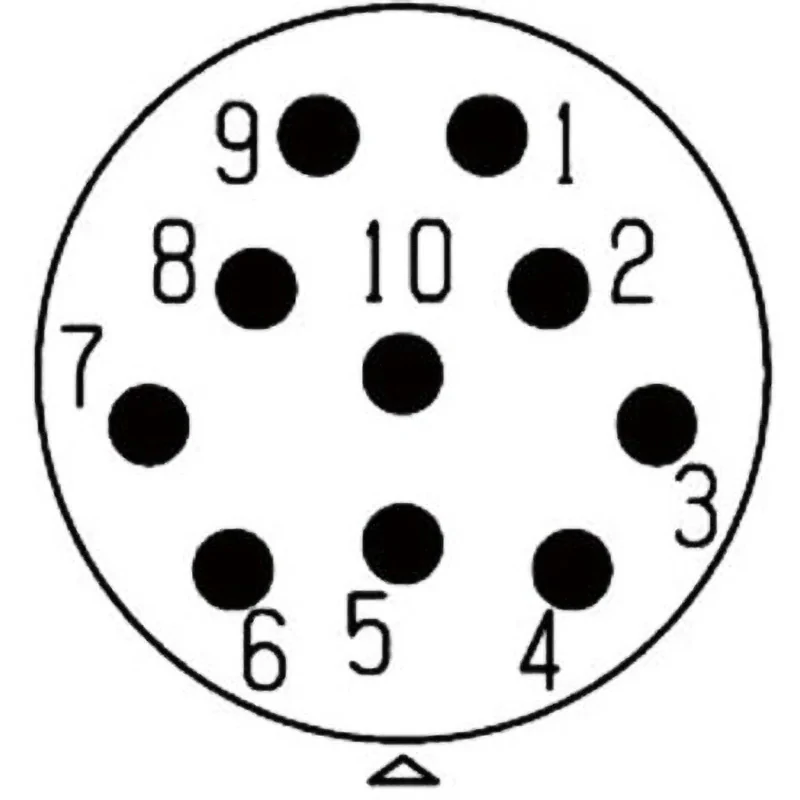

Number of Poles: 10
Rated Voltage (V): 250
Specifications: Male Pin (Device Side)
Type: Circular
Operating Temperature Range (Celsius degrees): -40 to +120
Standard: Electrical Appliance Safety Law
Rated Current (A): 20
Connector Shape: Plug
Material (Contact)/Processing: Copper Alloy/Silver Plated
Material (Insulator): Synthetic Resin
Conductor Cross-Sectional Area (mm2): 3.5
Insulation Resistance (Megaohm): 2000
Contact Resistance (Megaohm): 3 or less
Coupling Method: Screw
Material (Gasket): Synthetic Rubber
Material (Shell)/Processing: Zinc Alloy or Brass/Chromium Plated or Special Chemical Treatment (16 Color Types)
Maximum Operating Voltage (V): 300
RoHS Directive (10 Substances Compliant): Compliant
Withstand Voltage (V/min): 2000
Wiring Method: Solder
Used in various circuits with the Basic Type of Metal Connector
Due to its robust and simple structure, it is mechanically and electrically stable
The shell is made of zinc alloy with excellent strength.
Soldering connection does not require special tools.
