Description
Contact Shape: Female

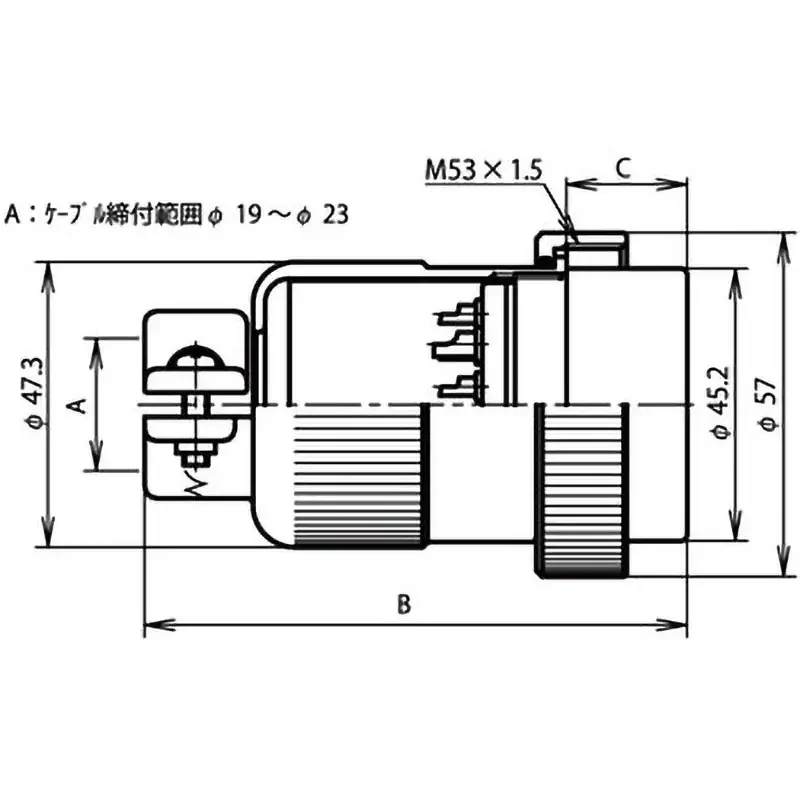

Shell Size: 50
Shape: Straight
Compatible Cable Outer Diameter (Diameter mm): 19.0闂?3.0
Compatible: NCS-508-R

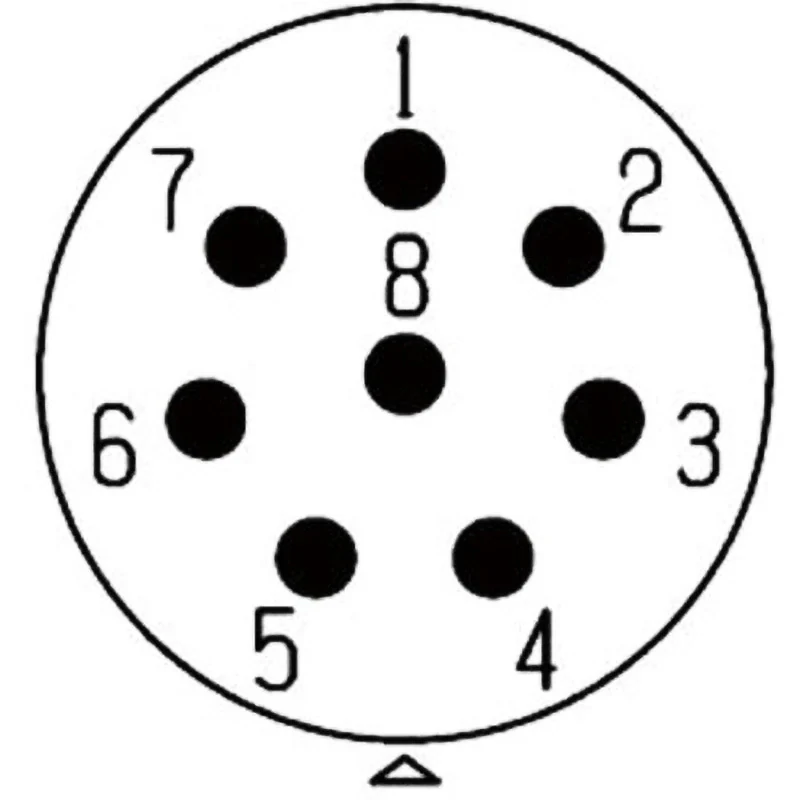

Number of Pins: 8
Rated Voltage (V): 250
Specification: Positive Pin (Device Side)
Type: Round
Operating Temperature Range (Celsius degrees): -40闂?120
Standard: Electrical Appliance and Material Safety Law
Rated Current (A): 25

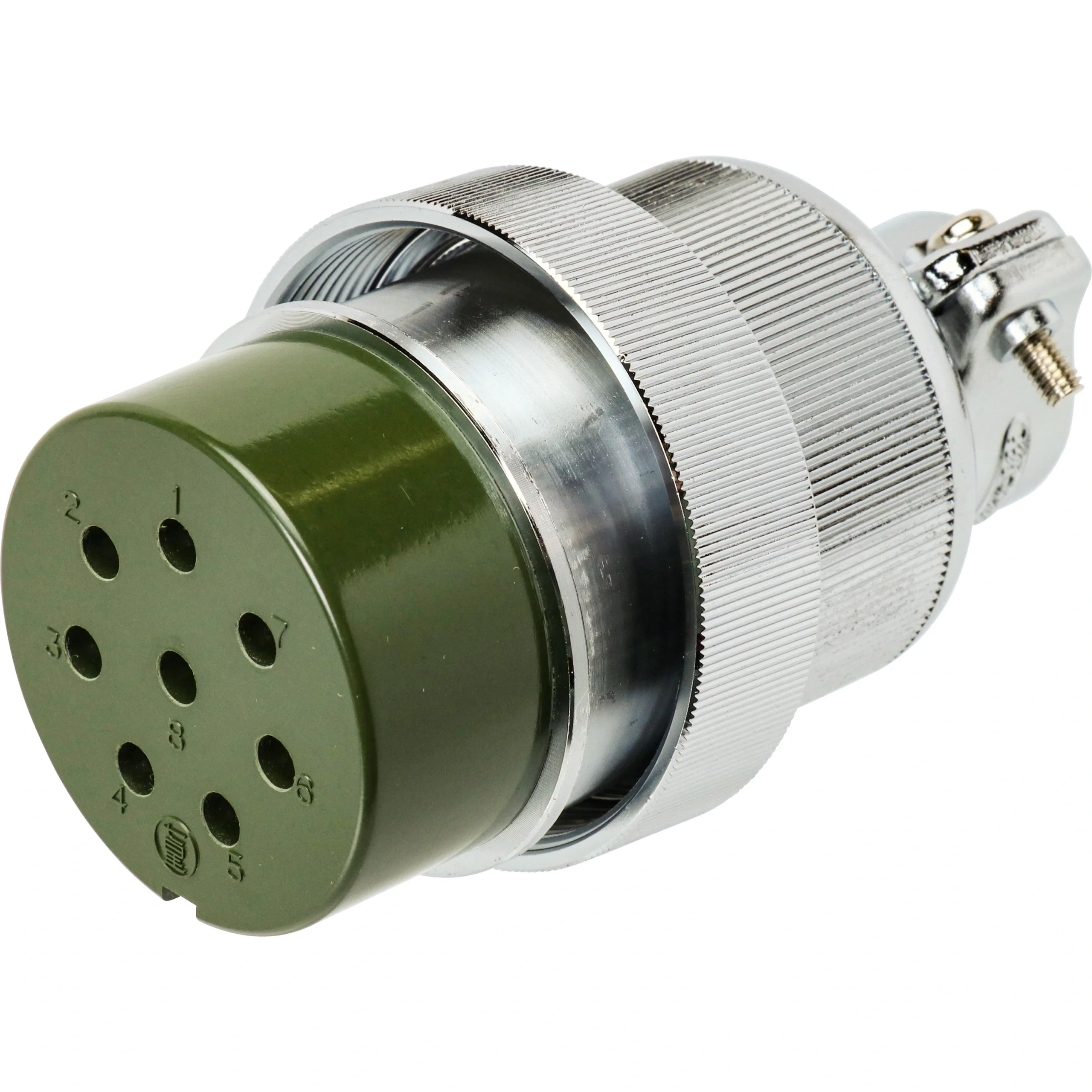

Connector Shape: Plug
Material (Contact)/Processing: Copper Alloy/Silver Plating
Material (Insulator): Synthetic Resin
Conductor Cross Section Area (mm2): 3.5
Insulation Resistance (Megaohm): 2000
Contact Resistance (Megaohm): 3 or less
Coupling Method: Screw
Material (Packing): Synthetic Rubber
Material (Shell)/Processing: Zinc Alloy or Brass/Chrome Plating or Special Chemical Treatment (16 Color Type)
Maximum Operating Voltage (V): 400
RoHS Directive (10 Substances Compliance): Compliant
Withstand Voltage (V/min): 2000
Wiring Method: Soldering
Used in various circuits with the Basic Type of Metal Connector
Mechanically and electrically stable due to robust and simple structure
The shell uses a zinc alloy with excellent strength.
No specialized tools are required for soldering connections.
