Description
Usage: For supporting rolls.
Material: Bearing: High carbon chrome steel, Bearing housing: Gray cast iron
Shaft diameter (mm): 50
Shape: Pillow type
Weight (kg): 3.1

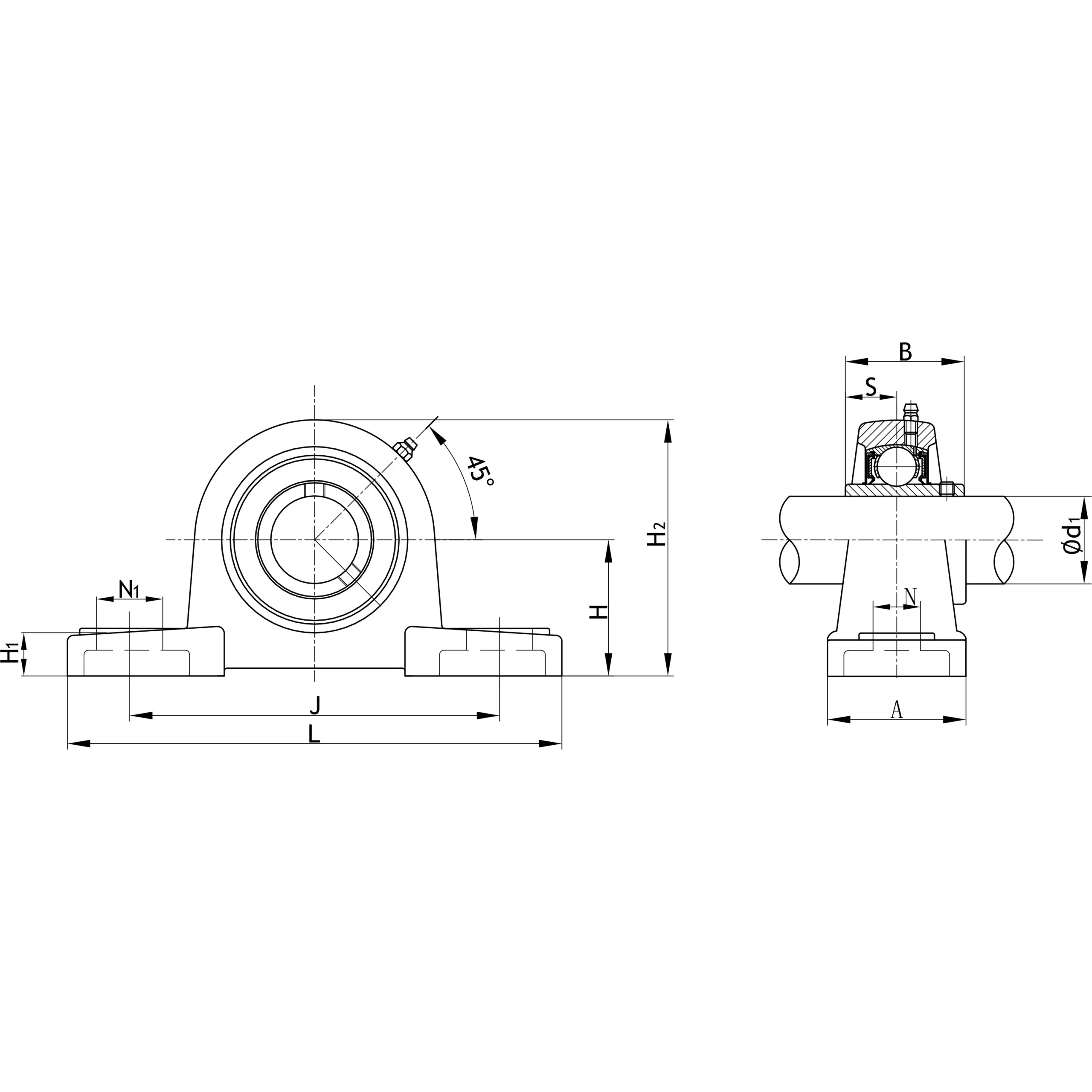

Dimension L (mm): 206
Dimension H (mm): 57.2
Basic static load rating (kN): 23.1
Basic dynamic load rating (kN): 35
Mounting bolt specification: M16
Dimension A (mm): 60
Dimension S (mm): 19
Dimension B (mm): 51.6
Dimension N (mm): 20
Dimension J (mm): 159
Dimension H1 (mm): 21
Dimension H2 (mm): 114
Dimension N1 (mm): 25

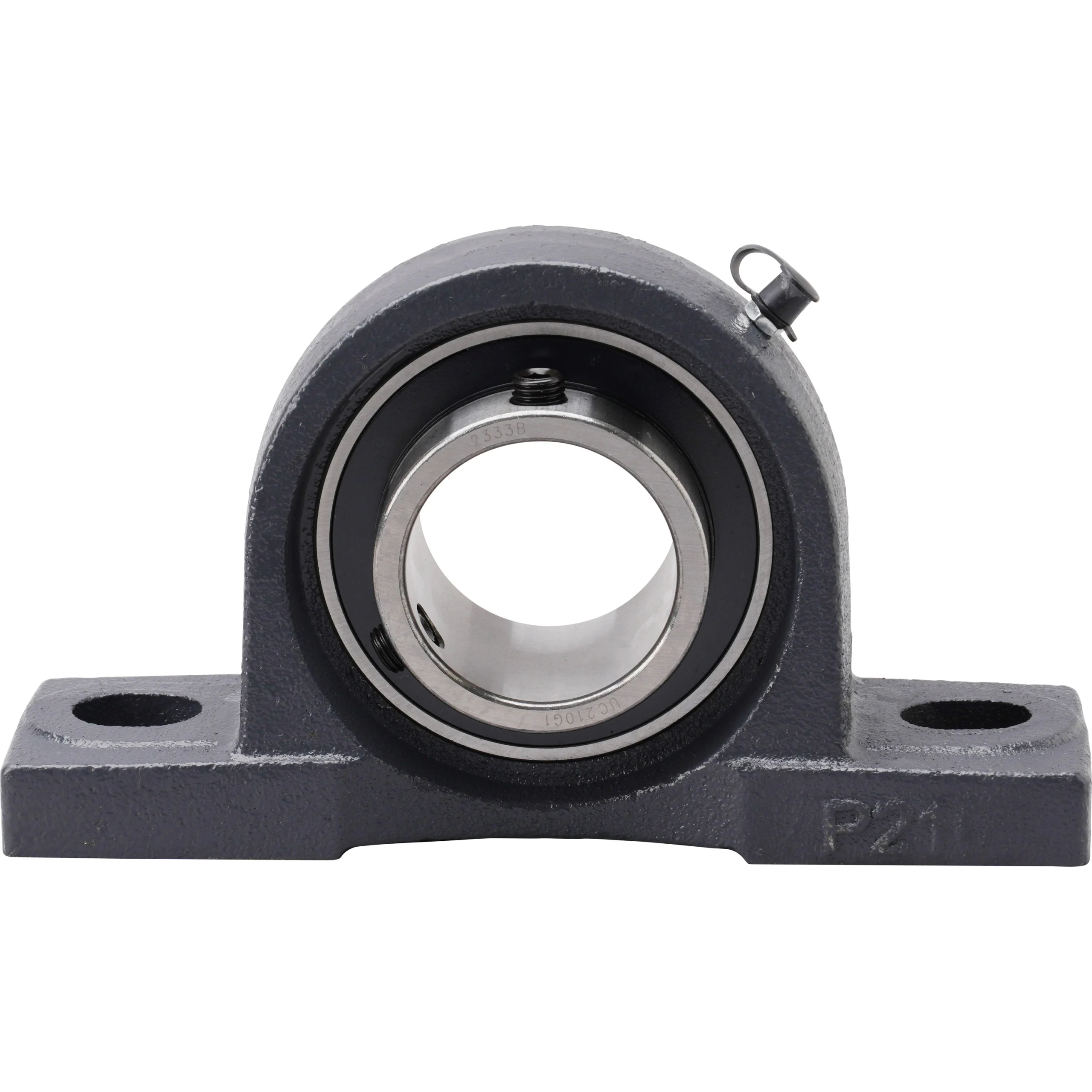

This is the most representative bearing unit.
