Description
Application: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing box: Gray cast iron
Shaft diameter (mm): 45
Shape: Pillow type
Weight (kg): 2.45

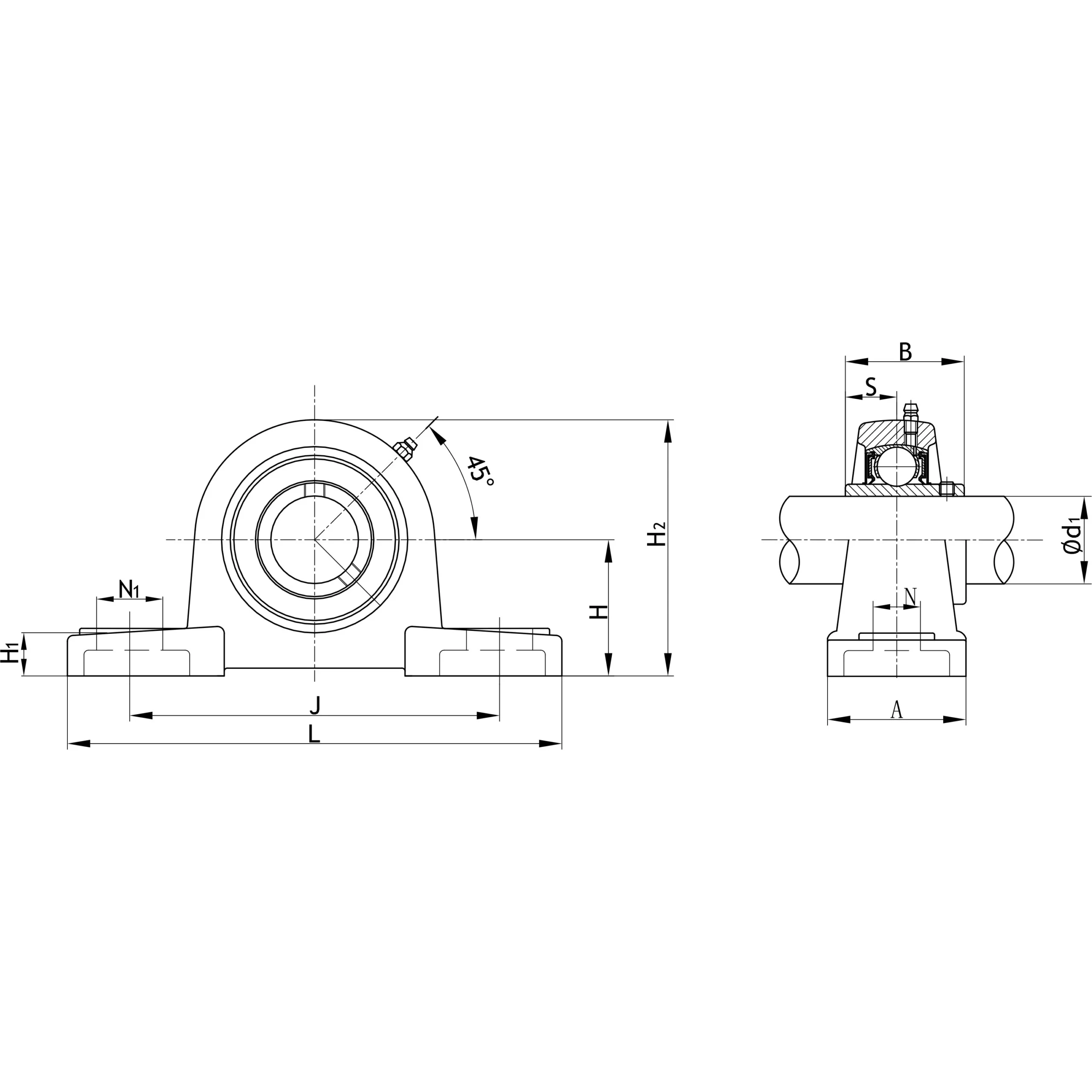

Dimension L (mm): 190
Dimension H (mm): 54
Basic static load rating (kN): 20.4
Basic dynamic load rating (kN): 32.7
Mounting bolt specification: M14
Dimension A (mm): 54
Dimension S (mm): 19
Dimension B (mm): 49.2
Dimension N (mm): 17
Dimension J (mm): 146
Dimension H1 (mm): 20
Dimension H2 (mm): 106
Dimension N1 (mm): 21

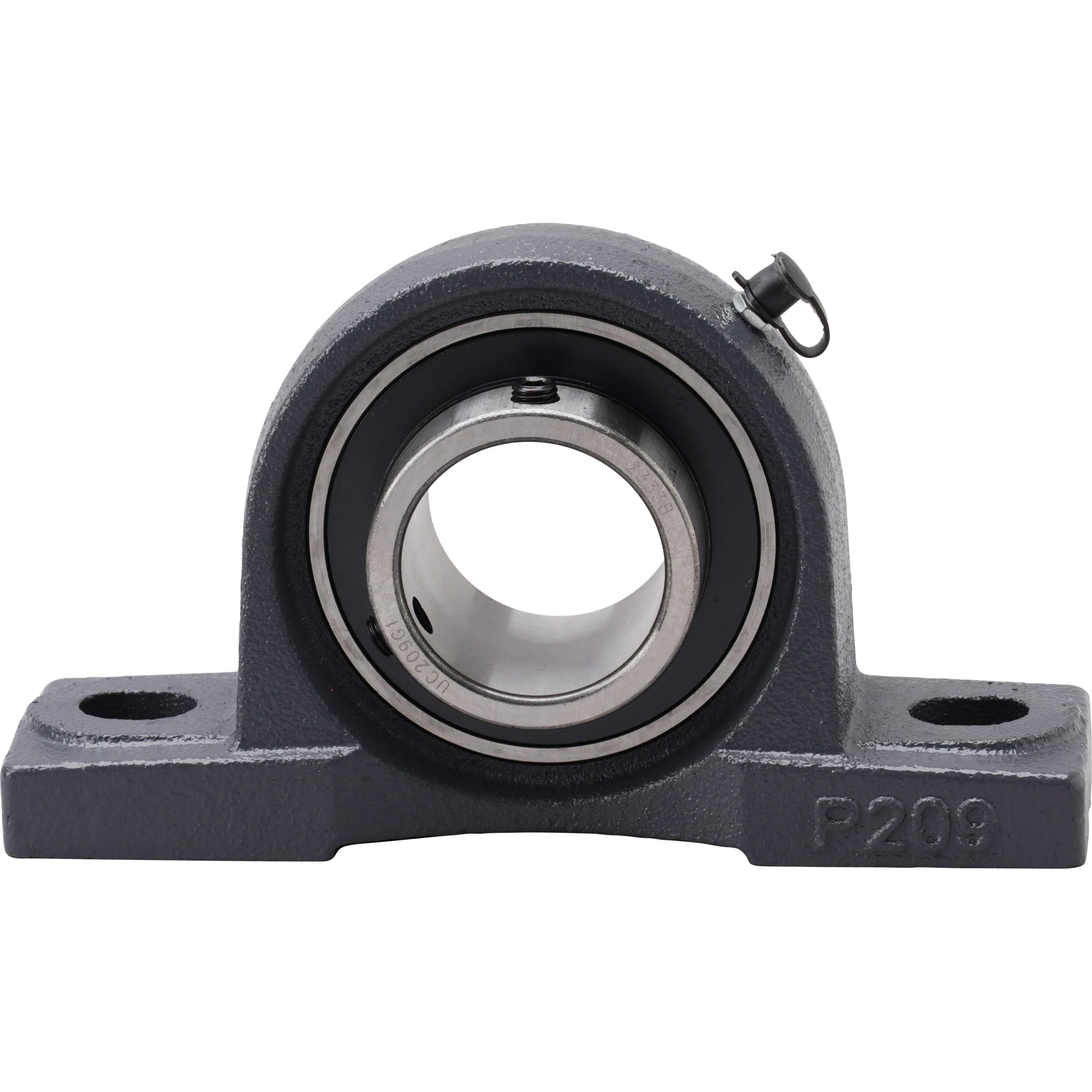

This is the most representative bearing unit.
