Description
Dimensions A (mm): 240.0
Dimensions B (mm): 260.0
Dimensions C (mm): 190.0
Dimensions D (mm): 240.0
Dimensions E (mm): 260.0
Member Length L (mm): 300.0

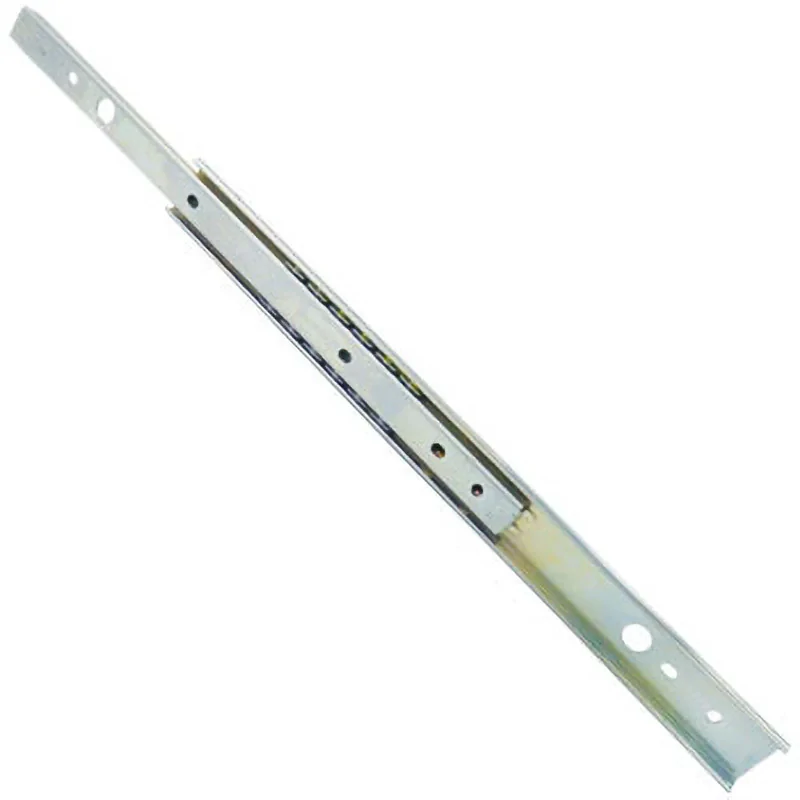

Type: Slide Type
Stroke (mm): 222
Rail Length (mm): 300
Rated Load (N): 240 (set)
Number of Steps: 2
Material: (Rail) SPCC
Surface Treatment: (Rail) Electrogalvanized
Material: (Retainer) SECC
Material: (Ball) 3/16 inch Carbon Steel Ball
Mounting Screw M4 is a Binding Screw, M3 Binding or Truss Small Screw
Weight (kg/pair): 0.48
Lubricating Oil: Nippon Oil Epinoque Grease AP(N)
The most compact slide rail from Japan Slide.
High Strength, High Durability!
By adopting a robust copper plate, it has sufficient durability for long-term use.
Smooth Linear Motion!
It provides a light and smooth linear motion without any snagging.
Thin and Compact!
The cross-sectional shape is designed to be as thin as possible while maintaining strength, minimizing side space during installation.
Maintenance-Free!
The rail is treated with surface treatment, allowing for maintenance-free long-term use.
Ultra Low Price, Easy to Install!
Since it can be used with only bolt-on installation, it significantly reduces the design, processing, and assembly time on the installation side.
