Description
Application: For supporting rolls.
Material: Bearing: High carbon chrome steel, Bearing housing: Gray cast iron
Shaft diameter (mm): 40

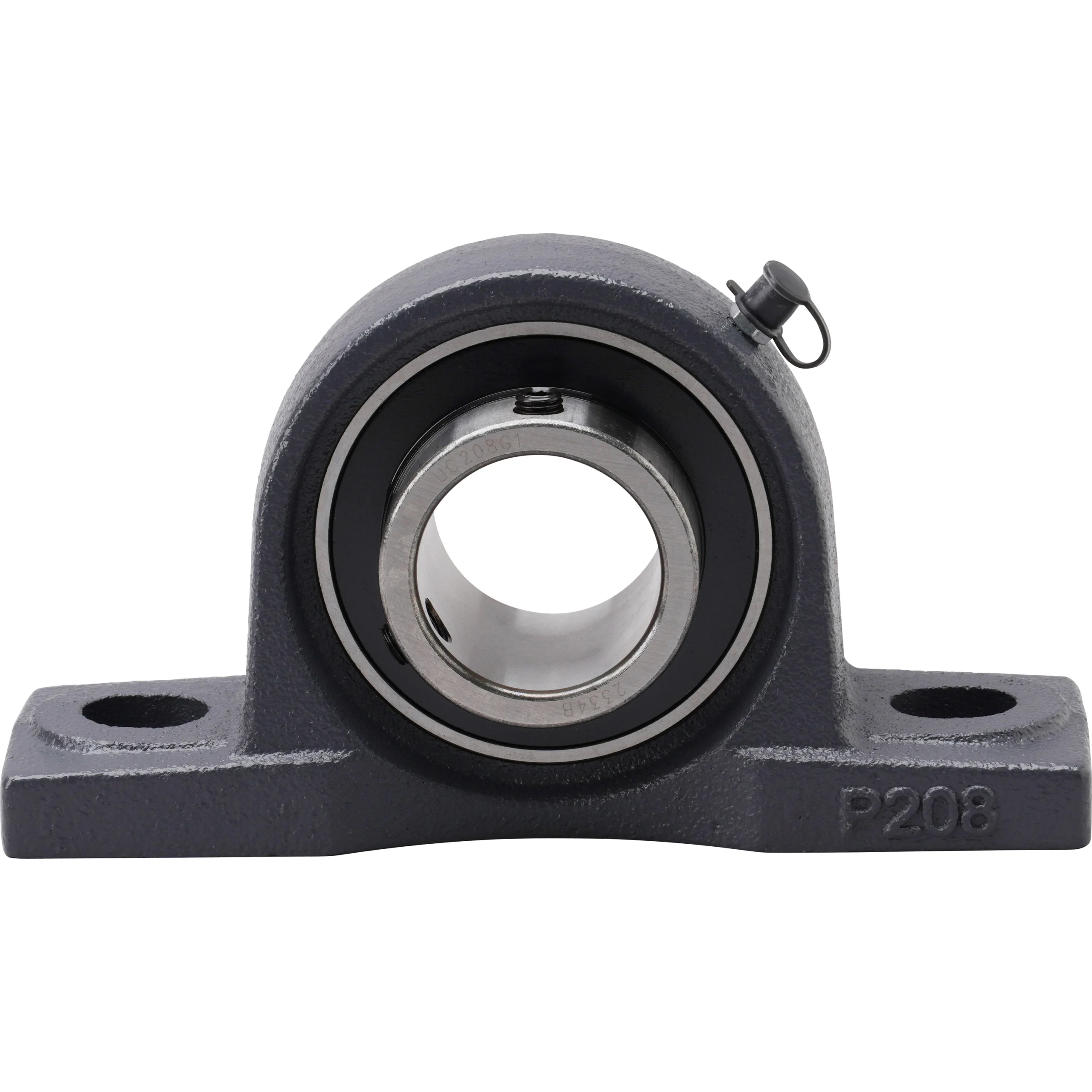

Shape: Pillow type
Weight (kg): 2.14

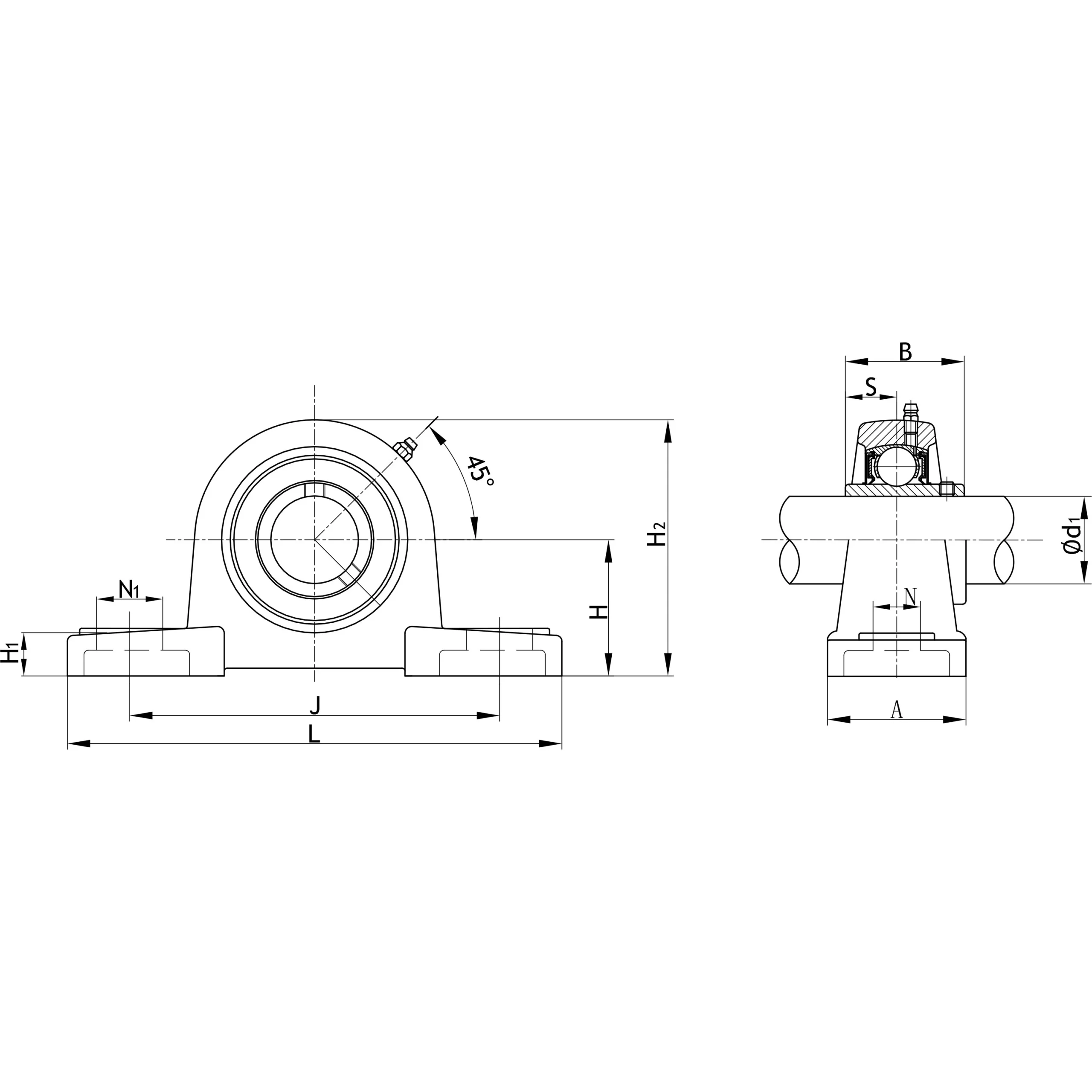

Dimension L (mm): 184
Dimension H (mm): 49.2
Basic static load rating (kN): 19.8
Basic dynamic load rating (kN): 32.6
Mounting bolt size: M14
Dimension A (mm): 54
Dimension S (mm): 19
Dimension B (mm): 49.2
Dimension N (mm): 17
Dimension J (mm): 137
Dimension H1 (mm): 18
Dimension H2 (mm): 98
Dimension N1 (mm): 21
This is the most representative bearing unit.
