Description

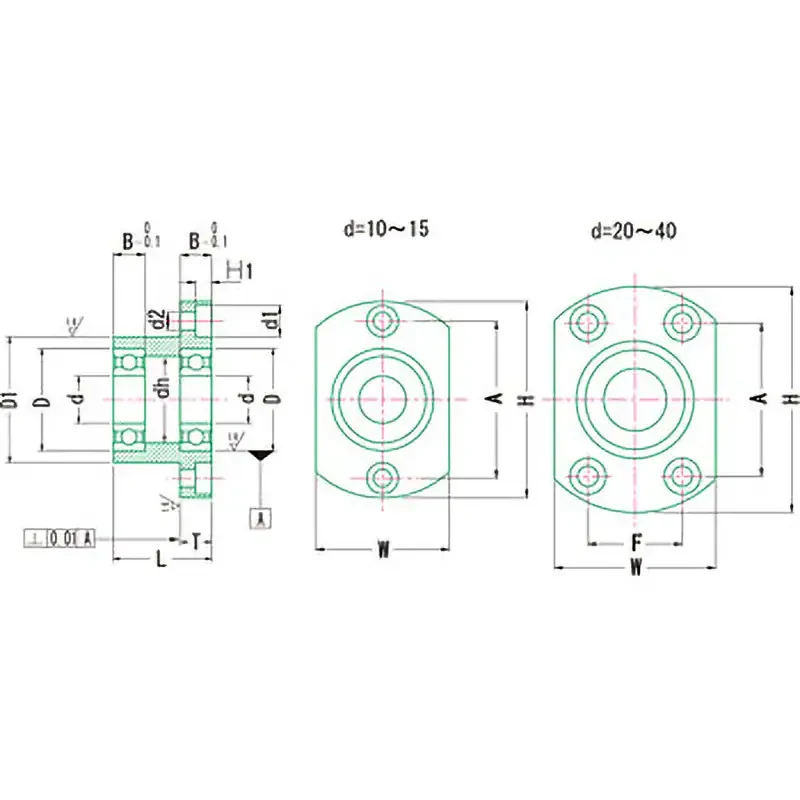

Dimension D1 (mm): (g7) Tolerance: 38-0.009-0.034
Dimension DH (mm): 26
Dimension H1 (mm): 4.1
Dimension D (mm): 12
Dimension D2 (mm): 4.5
Material: (H) Lead-Free Electroless Nickel Plated, (B) Bearing Steel
Weight (g): 298
Dimension T: 8
Dimension D: (H7) Tolerance: 32+0.025
Dimension F: –
Dimension A: 46
Dimension B: 10
Dimension H: 56
Dimension L: 30
Dimension W: 40
Dimension D: 18
