Description
Application: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing housing: Gray cast iron
Shaft diameter (mm): 35
Shape: Pillow type
Weight (kg): 1.72

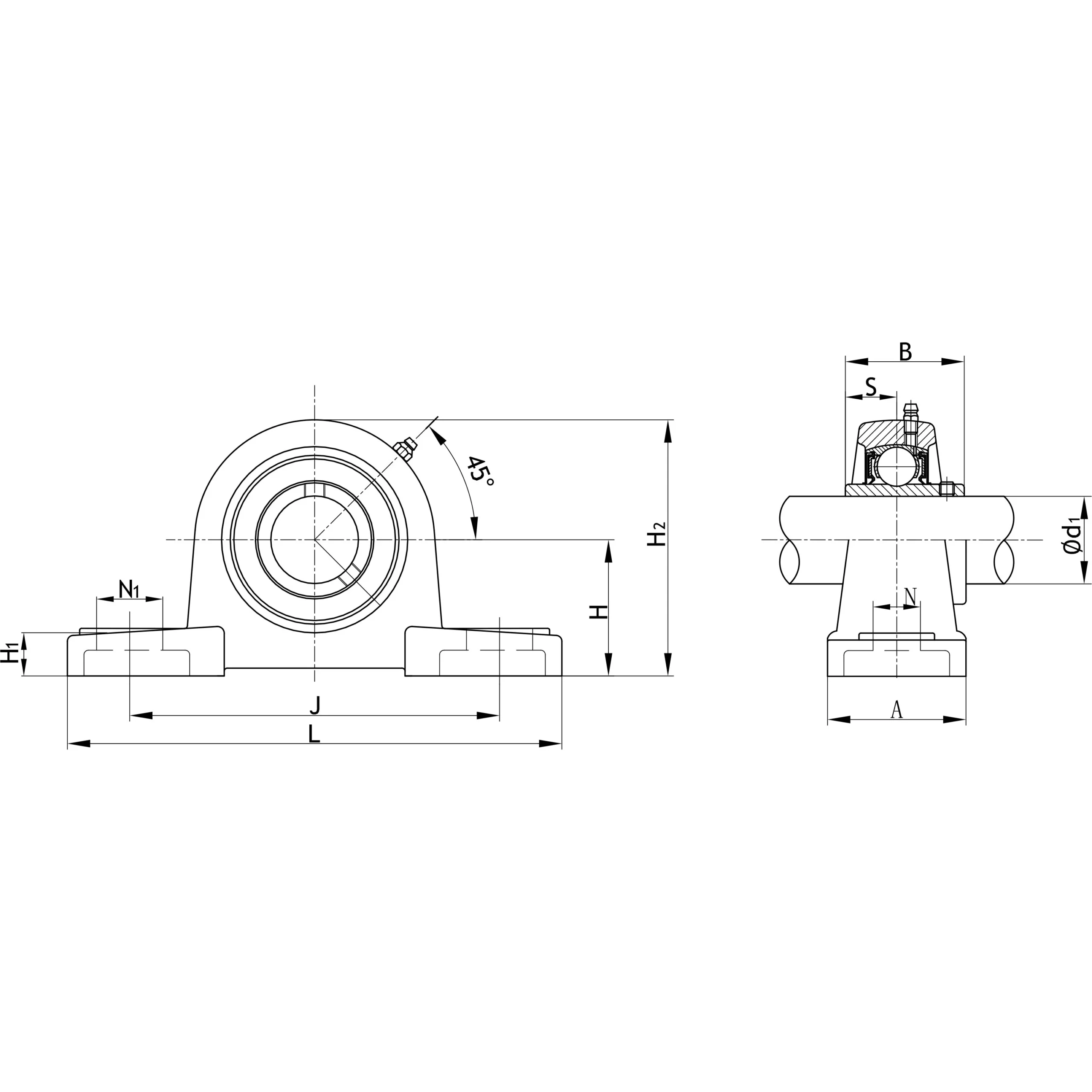

Dimension L (mm): 167
Dimension H (mm): 47.6
Basic static load rating (kN): 15.2
Basic dynamic load rating (kN): 25.6
Mounting bolt specification: M14
Dimension A (mm): 48
Dimension S (mm): 17.5
Dimension B (mm): 42.9
Dimension N (mm): 17
Dimension J (mm): 127
Dimension H1 (mm): 18
Dimension H2 (mm): 93
Dimension N1 (mm): 21

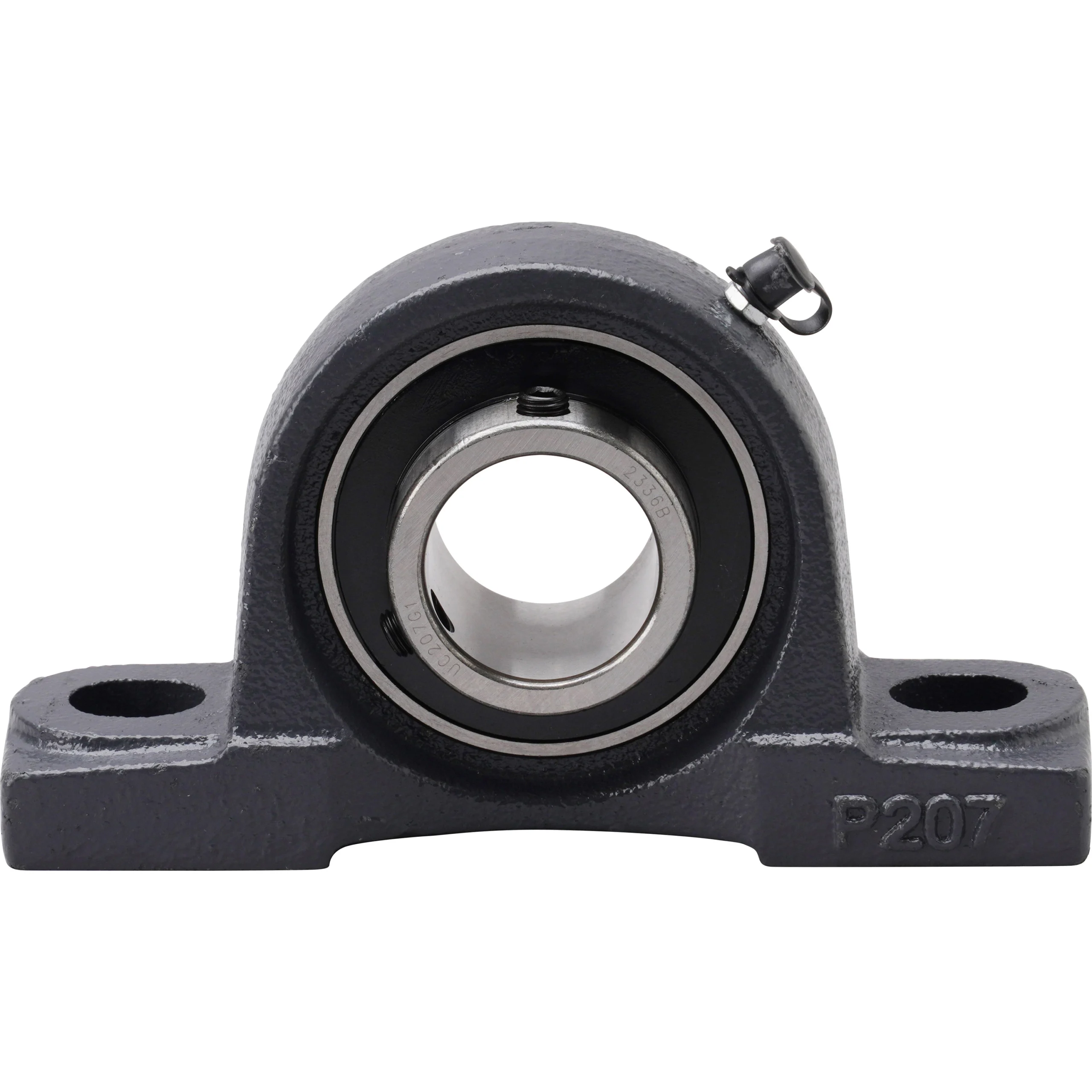

This is the most representative bearing unit.
