Description

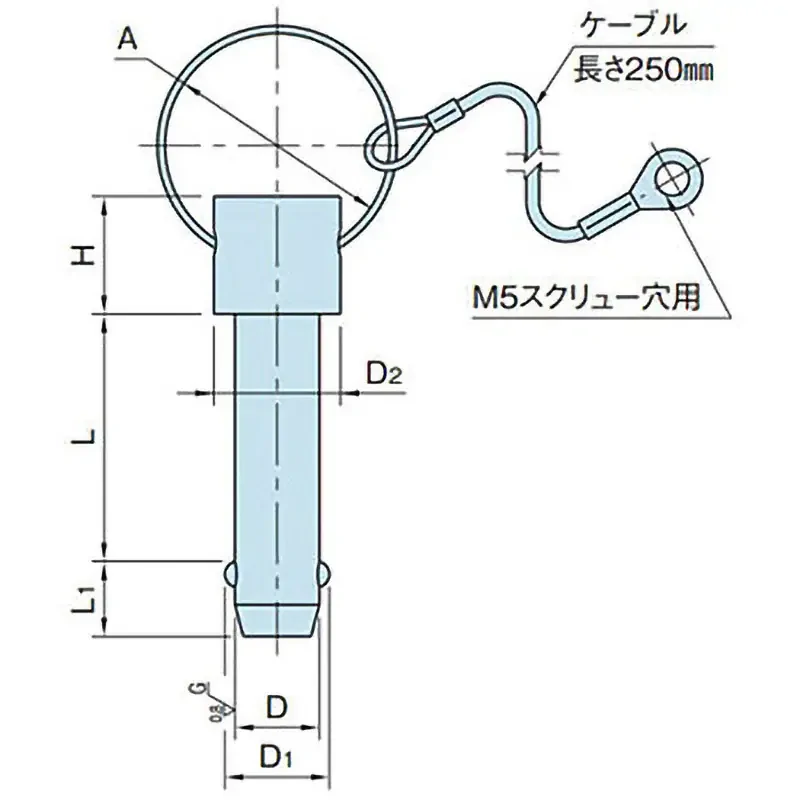

Dimensions L(mm): 30(+0.5/0)
Dimensions L1(mm): 9(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (Inert) Coating, Polished Finish
Dimensions D(mm): 10(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 11.5
Weight (g): 47
Dimensions D2(mm): 12.7
This allows for quick and easy fastening and separation of workpieces and parts that are frequently joined.
It is suitable for use as a substitute for bolts or rivets for rapid temporary separation or for cases where once fixed, they do not need to be separated.
