Description
Usage: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing housing: Gray cast iron
Shaft diameter (mm): 30

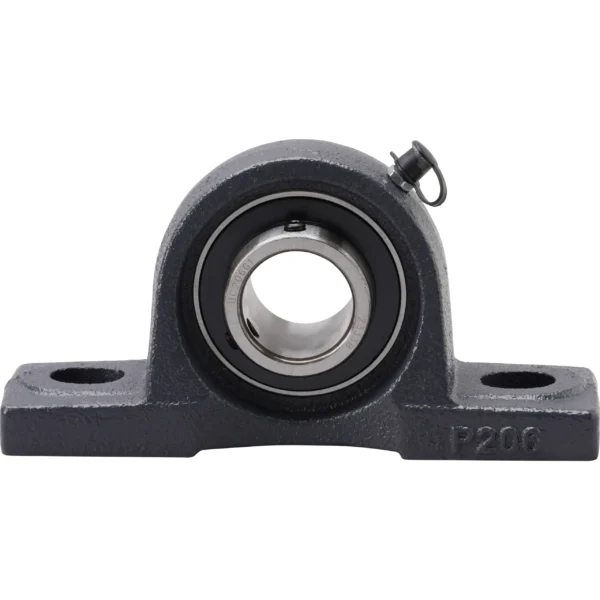

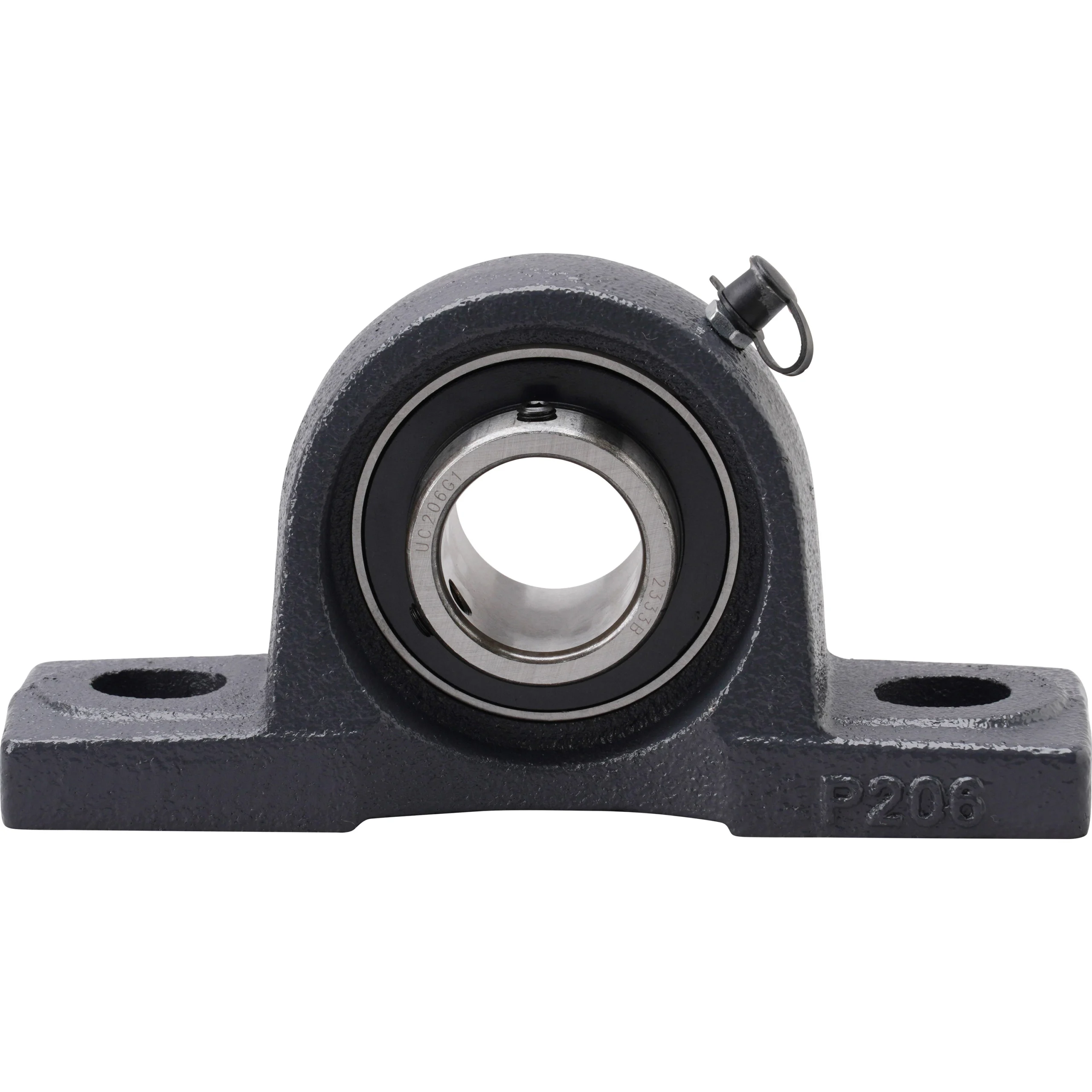

Shape: Pillow type
Weight (kg): 1.32

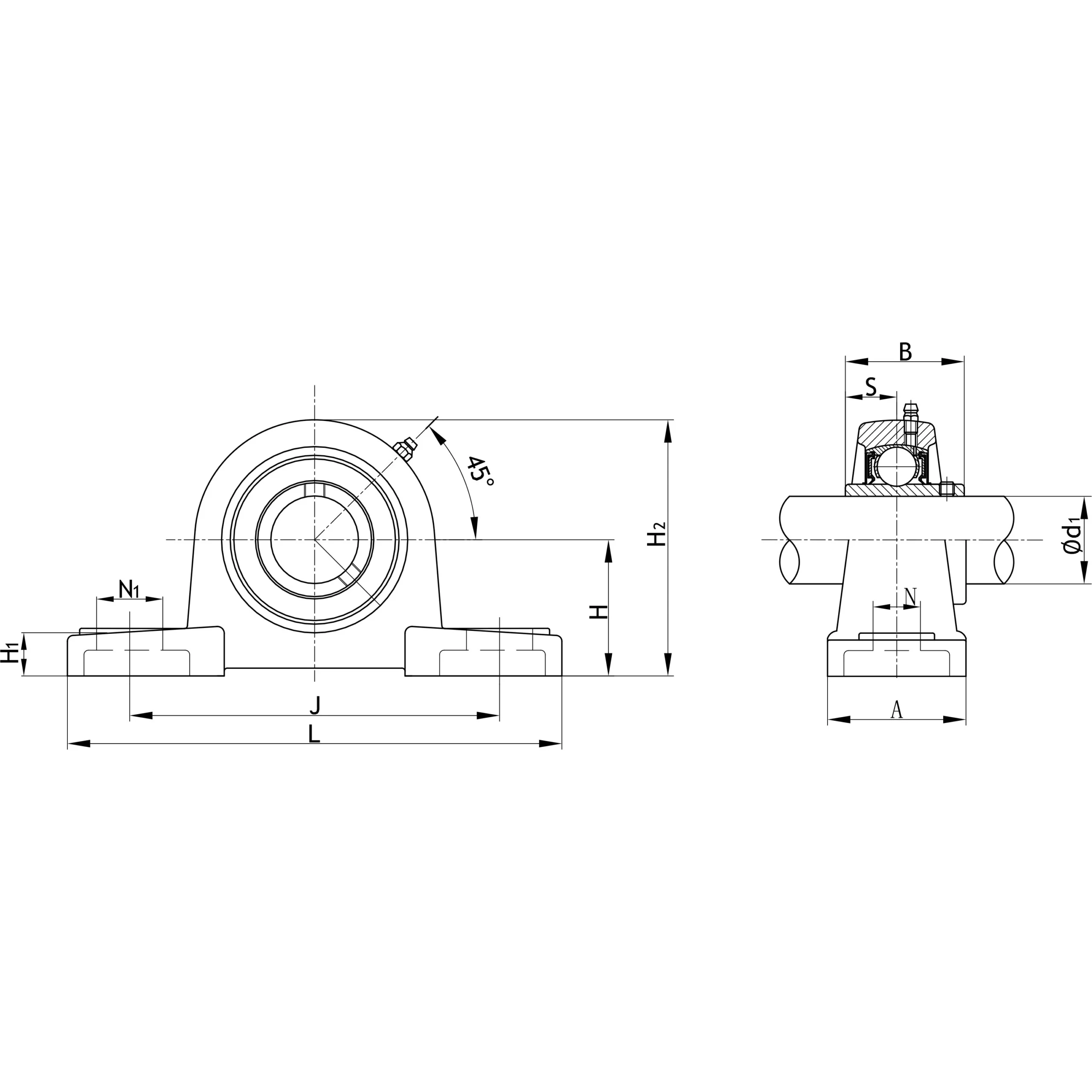

Dimension L (mm): 165
Dimension H (mm): 42.9
Basic static load rating (kN): 11.2
Basic dynamic load rating (kN): 19.4
Mounting bolt size: M14
Dimension A (mm): 48
Dimension S (mm): 15.9
Dimension B (mm): 38.1
Dimension N (mm): 17
Dimension J (mm): 121
Dimension H1 (mm): 17
Dimension H2 (mm): 83
Dimension N1 (mm): 21
This is the most representative bearing unit.
