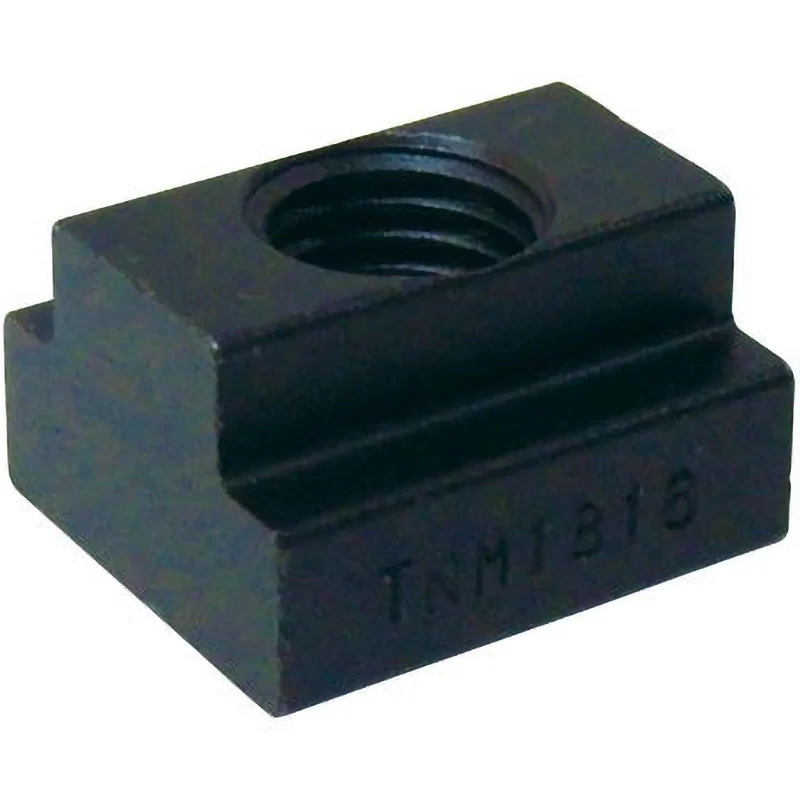

Description

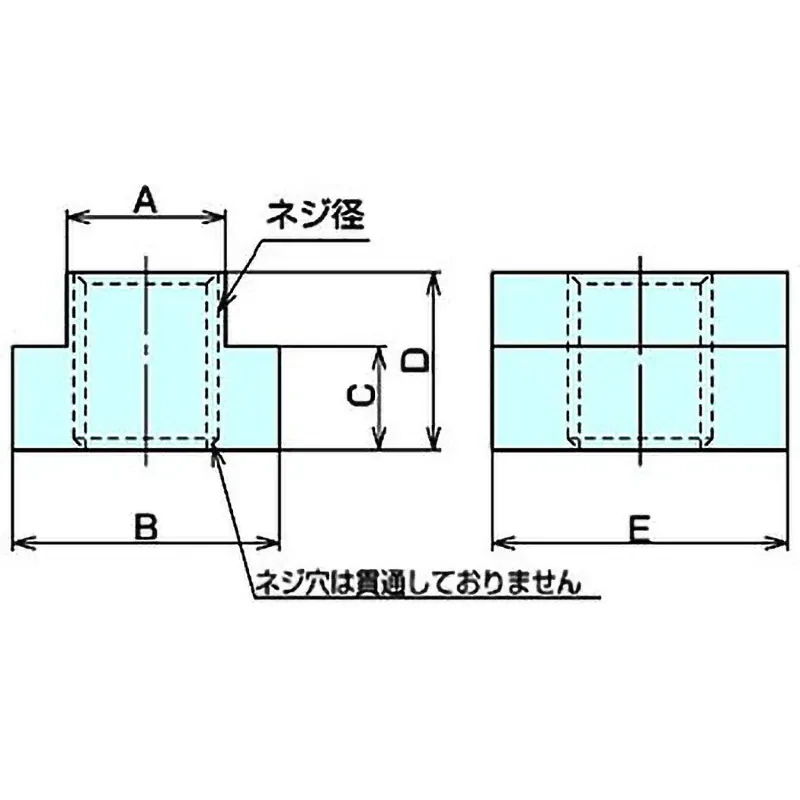

Dimensions A (mm): 17
Dimensions B (mm): 28.6
Dimensions C (mm): 11.1
Dimensions D (mm): 19.1
Dimensions E (mm): 32
Suitable T-slot width (mm): 18
Screw diameter: M16*2.0
Material: S45C
Weight (g): 89
Pitch: Standard
Surface treatment: Black Oxide
Hardness HRC: 28 to 35
Heat-Treated Quenching
RoHS Directive (compliance with 10 substances): Compliant
In order to prevent T-slot damage caused by bolt protrusion, the design is such that the bolt does not protrude.
