Description
Usage: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing housing: Gray cast iron
Shaft diameter (mm): 25

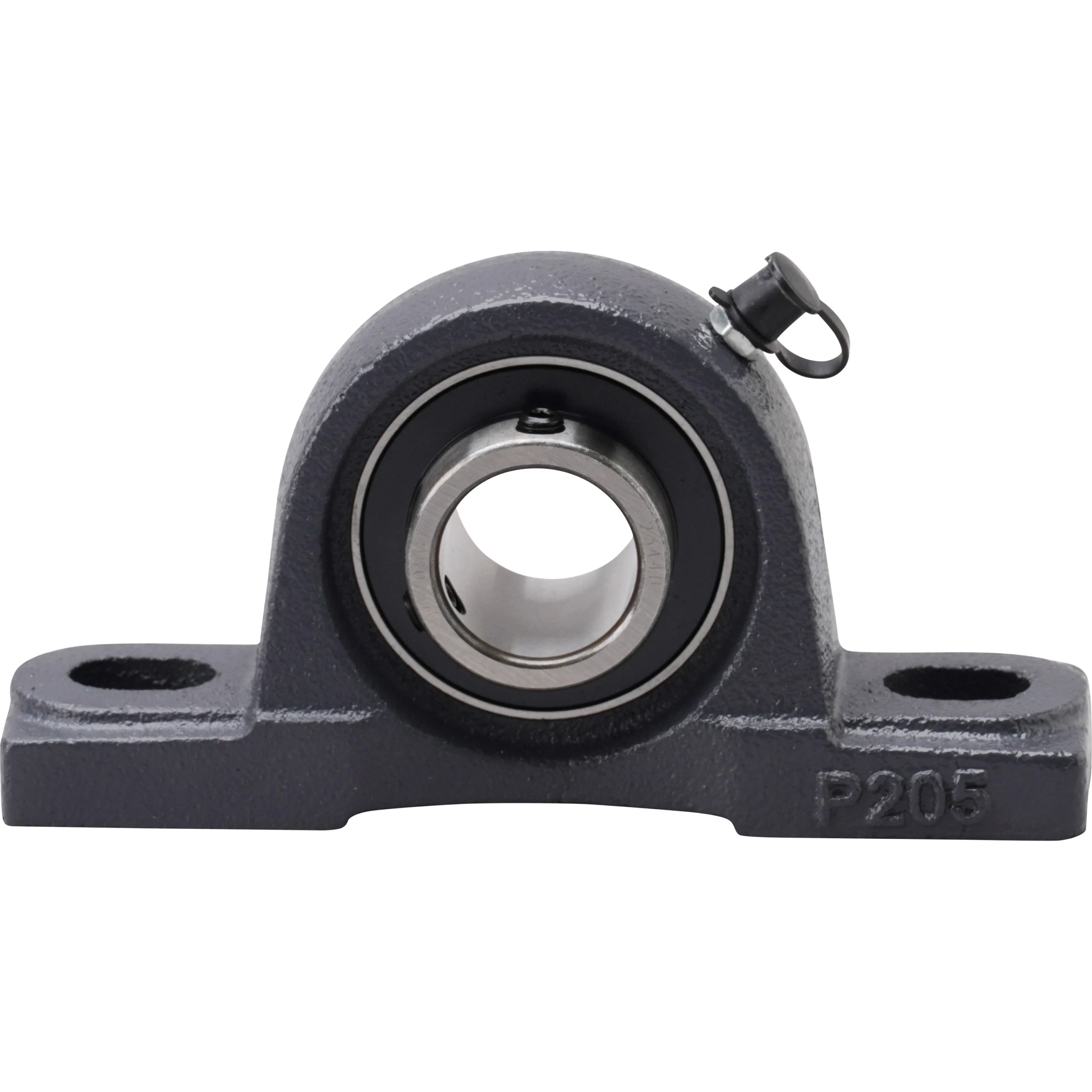

Shape: Pillow type
Weight (kg): 0.91

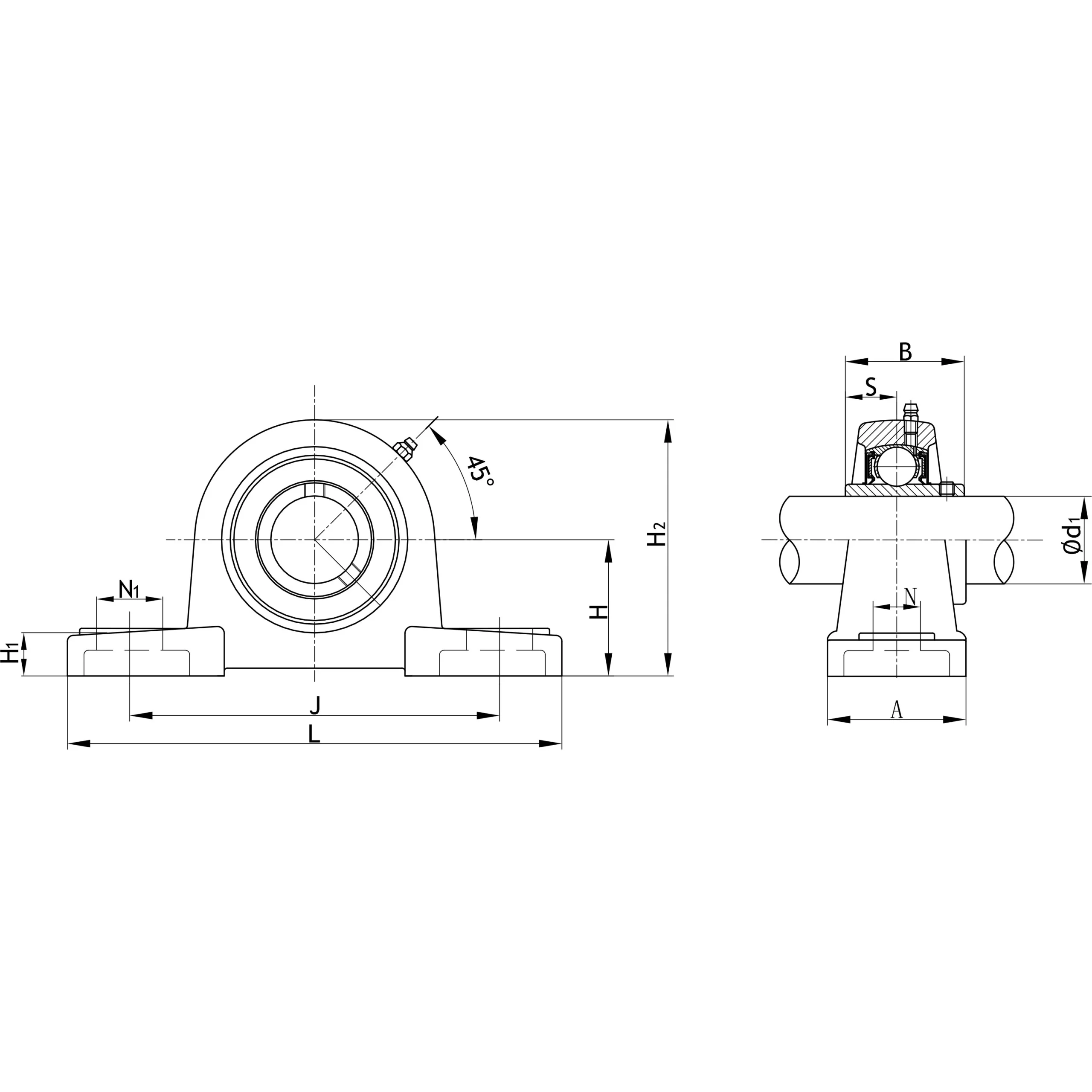

Dimension L (mm): 140
Dimension H (mm): 36.5
Basic static load rating (kN): 7.8
Basic dynamic load rating (kN): 14
Mounting bolt specification: M10
Dimension A (mm): 38
Dimension S (mm): 14.3
Dimension B (mm): 34.1
Dimension N (mm): 13
Dimension J (mm): 105
Dimension H1 (mm): 15
Dimension H2 (mm): 71
Dimension N1 (mm): 19
This is the most representative bearing unit.
