Description

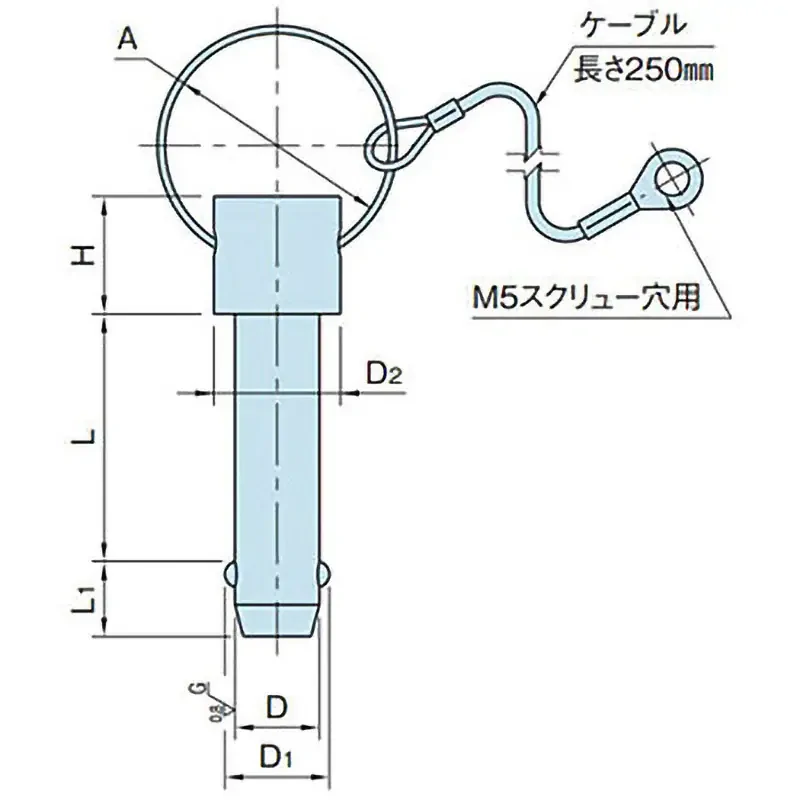

Dimensions L(mm): 100(+0.5/0)
Dimensions L1(mm): 8.5(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (passivation) coating, polishing finish
Dimensions D(mm): 8(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 9.3
Mass (g): 65
Dimensions D2(mm): 11
It allows for quick fixing and separation of workpieces and parts that are frequently joined together.
It is suitable for use as a substitute for bolts and rivets when quick temporary separation is needed or when separation is not required after being fixed.
