Description
Quantity: 1 piece
Function Operation: ON-OFF
Circuit: 3-pole single throw

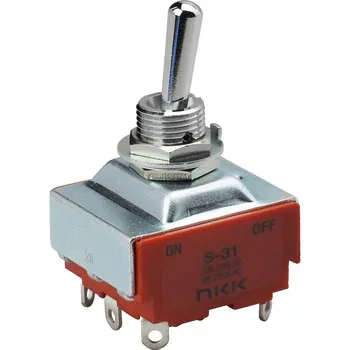

Part Number: S-31-J
Circuit: 3-pole single throw
Terminal Shape: Solder
Function Operation: ON-OFF
Dielectric Strength: AC2.0kV (more than 1 minute)
Accessories: Hexagonal Nut (AT-503, AT-527), Internal Tooth Washer (AT-508), Mounting Ring (AT-506)
Number of Poles: 3
Operating Temperature Range (Celsius degrees): -10 to 70
Standards: UL, C-UL, CSA
Operation Method: –
Heat Resistance: When using a soldering iron: tip temperature: below 390 Celsius degrees, soldering time: within 4s, number of times: 2 times (after returning to room temperature)
Optional Accessories: Waterproof Cap (AT-401, AT-402, AT-4181)
Motor (W): –
Mounting Hole Diameter (Diameter mm): 12.5, 12.3
Contact Resistance (Megaohm): 10 or less
Inductive Load (A): 10 (AC125V) (Power Factor = 0.6)
Insulation Resistance (Gigaohm): 1 or more (DC500V)
Mechanical Endurance: More than 50,000 cycles
Electrical Endurance: More than 25,000 cycles
Lever Tilt Angle (degrees): 25
Operation Part Shape: Basic Lever
Panel Mounting Method: Screw Mounting
Maximum Panel Thickness (mm): 5.6
RoHS Directive (10 substances compliance): Compliant
Dielectric Strength (V/min): AC2k or more
Resistive Load (A): 20 (AC125V), 9 (AC250V), 20 (DC30V)
The small toggle switch group boasts a track record of half a century, featuring robust, high capacity switches that are resistant to arcing and maintain high contact reliability using contact materials.
