Description
Application: For supporting rolls.
Material: Bearing: High carbon chromium steel, Bearing box: Gray cast iron
Shaft diameter (mm): 20
Shape: Pillow type
Weight (kg): 0.73

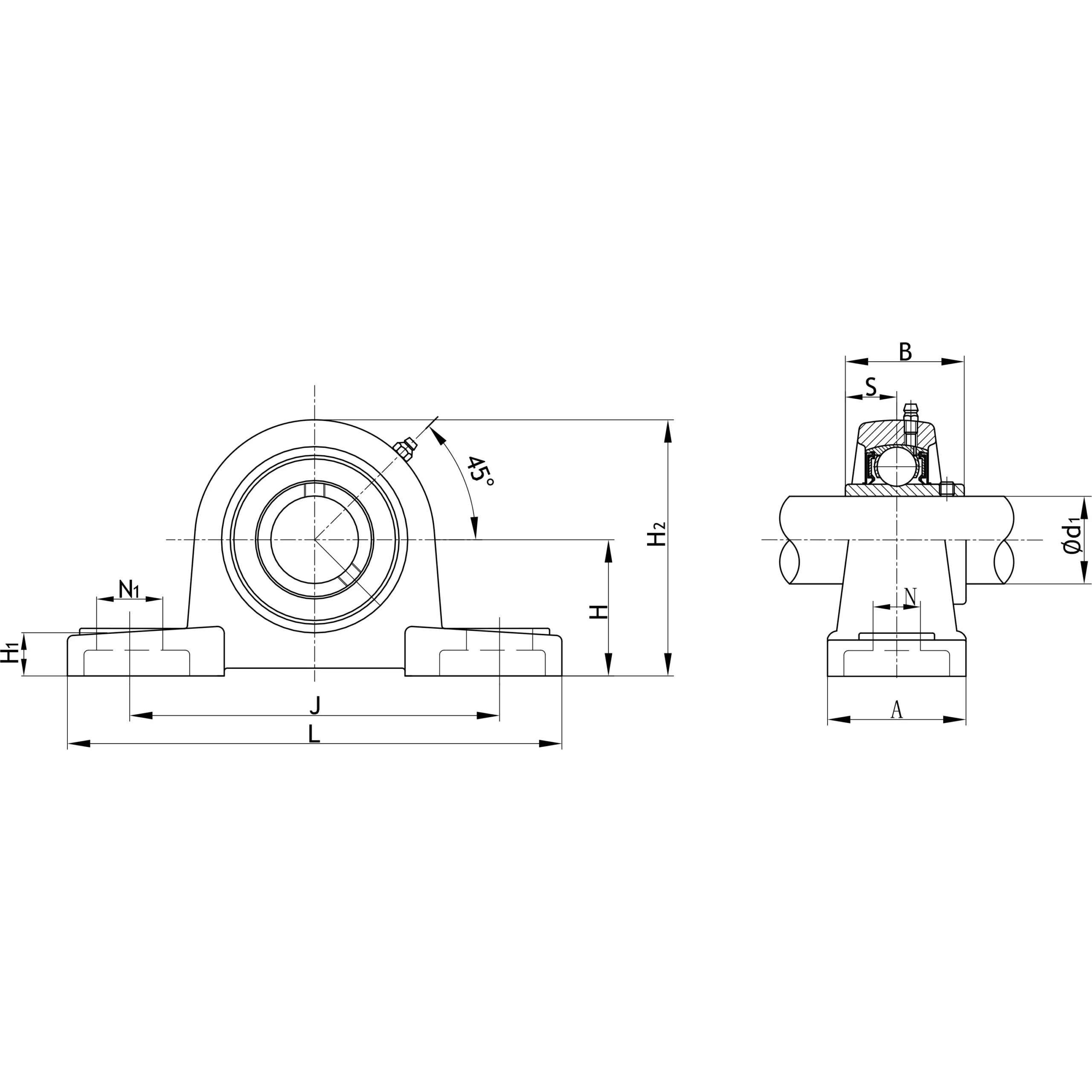

Dimension L (mm): 127
Dimension H (mm): 33.3
Basic static load rating (kN): 6.6
Basic dynamic load rating (kN): 12.8
Mounting bolt size: M10
Dimension A (mm): 38
Dimension S (mm): 12.7
Dimension B (mm): 31
Dimension N (mm): 13
Dimension J (mm): 95
Dimension H1 (mm): 14
Dimension H2 (mm): 65
Dimension N1 (mm): 19

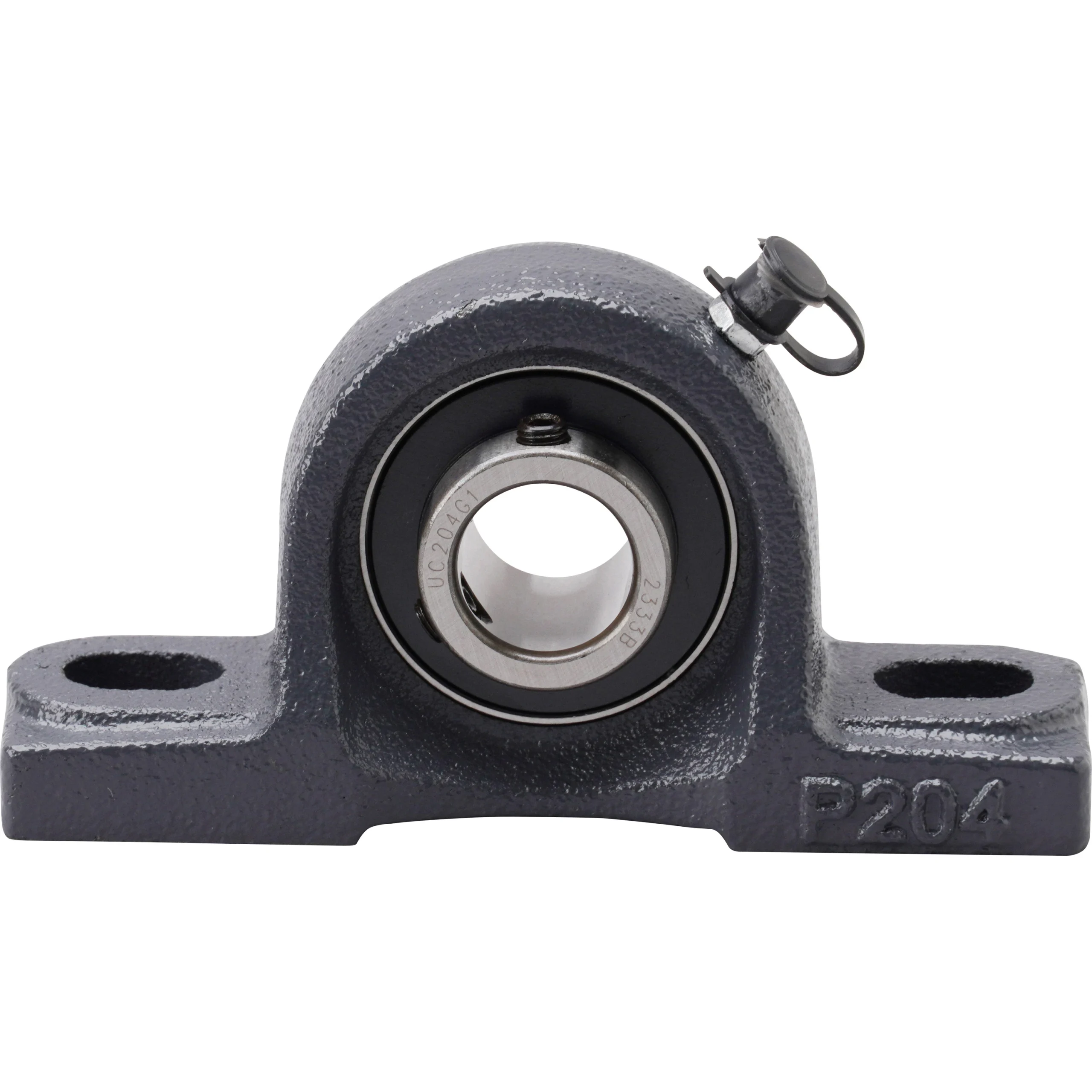

This is the most representative bearing unit.
