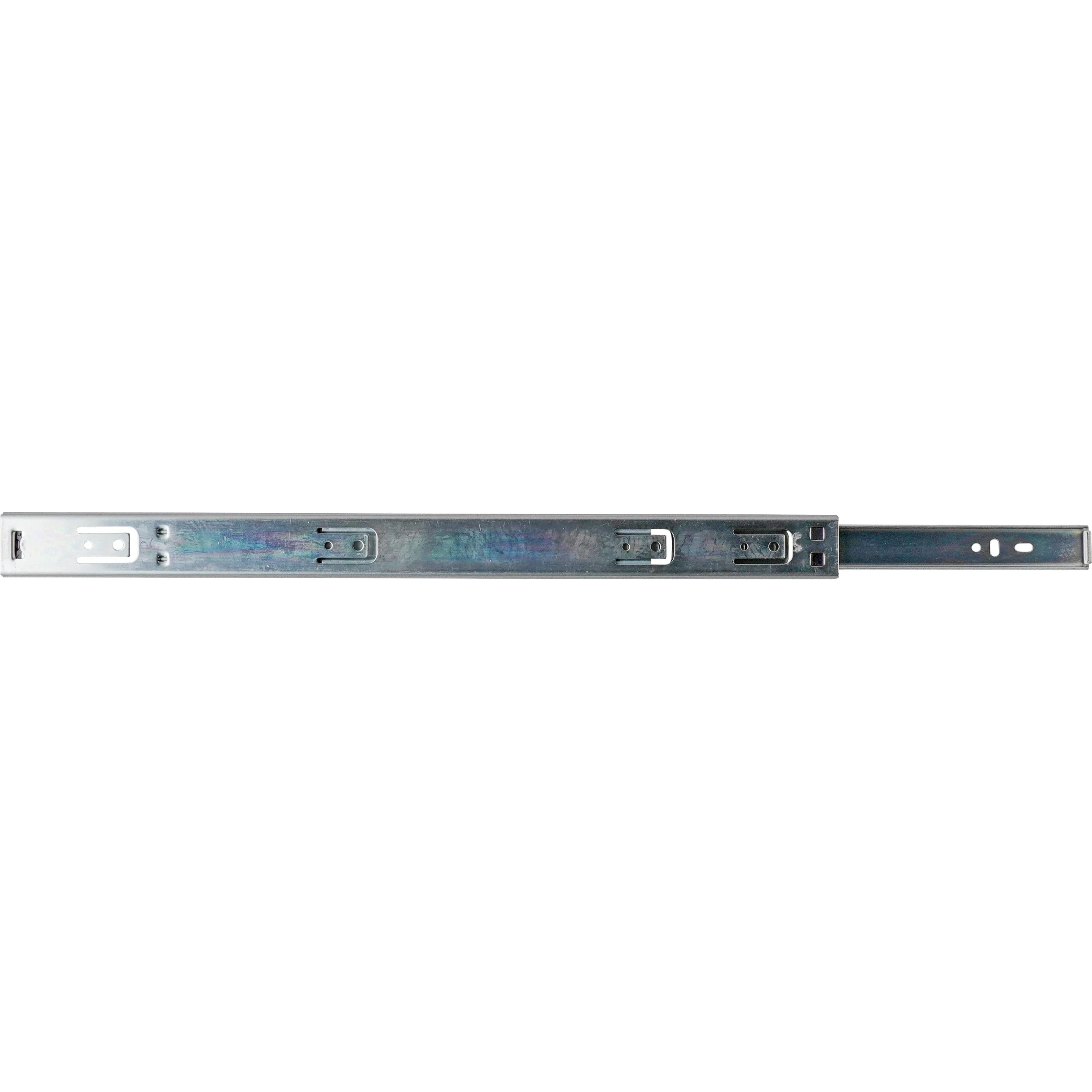

Description
Dimension a (mm): 194
Dimension b (mm): 387
Dimension d (mm): 275
Dimension e (mm): 403
Dimension f (mm): –
Length C (mm): 450
Type: Slide type
Travel distance (mm): 335
Rail length (mm): 450
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) Zinc plated
Set contents: 1 piece each for left and right
Material: Steel
Color: Unichrome
Weight (1 set) (kg): 0.85
Finish: Zinc plated
Mounting screw (flat head wood screw) 2.7 to 3.1
Static load capacity (kg): 23
The inner rail can be removed.
When the drawer is completely closed, the stopper works.
Due to the cushioning effect of the outer mounting part, smooth sliding can be achieved even with slight deformation of the cabinet.
