Description
Description
Quantity: 1 piece
Function Operation: ON-OFF
Circuit: 4-pole single throw

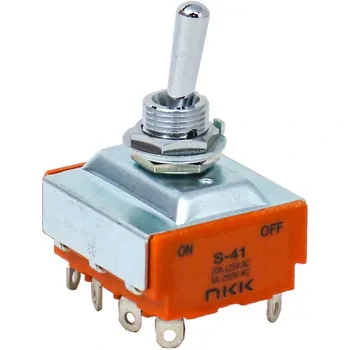

Part Number: S-41-J
Terminal Shape: Solder
Withstand Voltage: AC 2.0 kV (for 1 minute or more)
Accessories: Hex Nut (AT-503, AT-527), Internal Tooth Washer (AT-508), Mounting Ring (AT-506)
Number of Poles: 4
Operating Temperature Range (Celsius degrees): -10 to 70
Standards: UL, C-UL, CSA
Operation Method: –
Heat Resistance: When using a soldering iron: Tip temperature: 390 Celsius degrees or below Soldering time: within 4 seconds Number of times: 2 times (after returning to room temperature)
Optional Accessories: Waterproof Cap (AT-401, AT-402, AT-4181)
Motor (W): –
Mounting Hole Diameter (mm): 12.5, 12.3
Contact Resistance (Megaohm): 10 or less
Inductive Load (A): 10 (AC125V) (Power factor = 0.6)
Insulation Resistance (Gigaohm): 1 or more (DC500V)
Mechanical Switching Durability: 50,000 times or more
Electrical Switching Durability: 25,000 times or more
Lever Tilt Angle (degrees): 25
Operating Part Shape: Basic Lever
Panel Mounting Method: Screw Mounting
Maximum Mounting Panel Thickness (mm): 5.6
RoHS Directive (10 Substances Compliant): Compliant
Withstand Voltage (V/min): AC 2 kV or more
Resistive Load (A): 20 (AC125V), 9 (AC250V), 20 (DC30V)
The small toggle switch group boasts a track record spanning half a century, featuring switches that are small, robust, high capacity, resistant to arcing, and use contact materials that maintain high contact reliability.
